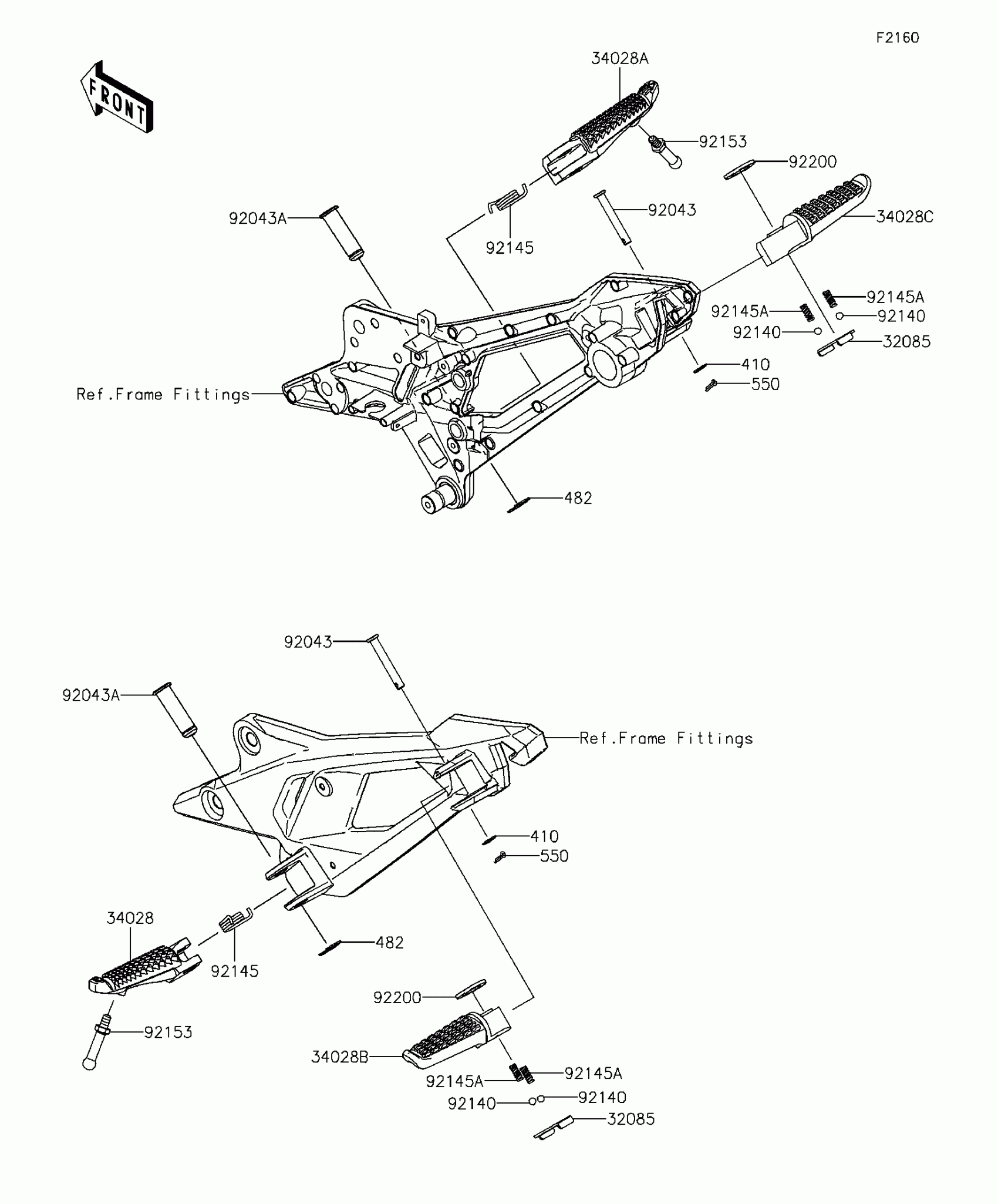

Kawasaki Z800 ABS Footrests Diagram

Description

Price

32085

STOPPER,REAR STEP

32085-0047

$4.23

34028

STEP,FR,LH

34028-0092

$78.66

34028A

STEP,FR,RH

34028-0093

$78.66

34028B

STEP,RR,LH

34028-0094

$63.30

34028C

STEP,RR,RH

34028-0095

$71.67

410

WASHER-PLAIN-SMALL

410AA0600

$1.03

482

CIRCLIP-TYPE-E,10MM

482EA0100

$0.85

550

PIN-COTTER,2.5X15

550S2515

$2.19

92043

PIN,6X43

92043-0770

$2.44

92043A

PIN,12X42.5

92043-1594

$5.25

92140

BALL,6.35MM

92140-0008

Unavailable

92145

SPRING,STEP,RETURN

92145-0902

$1.66

92145A

SPRING

92145-1319

$1.33

92153

BOLT,BANK SENSOR

92153-1938

$11.96

92200

WASHER,16X26X2.3

92200-0043

$5.84
