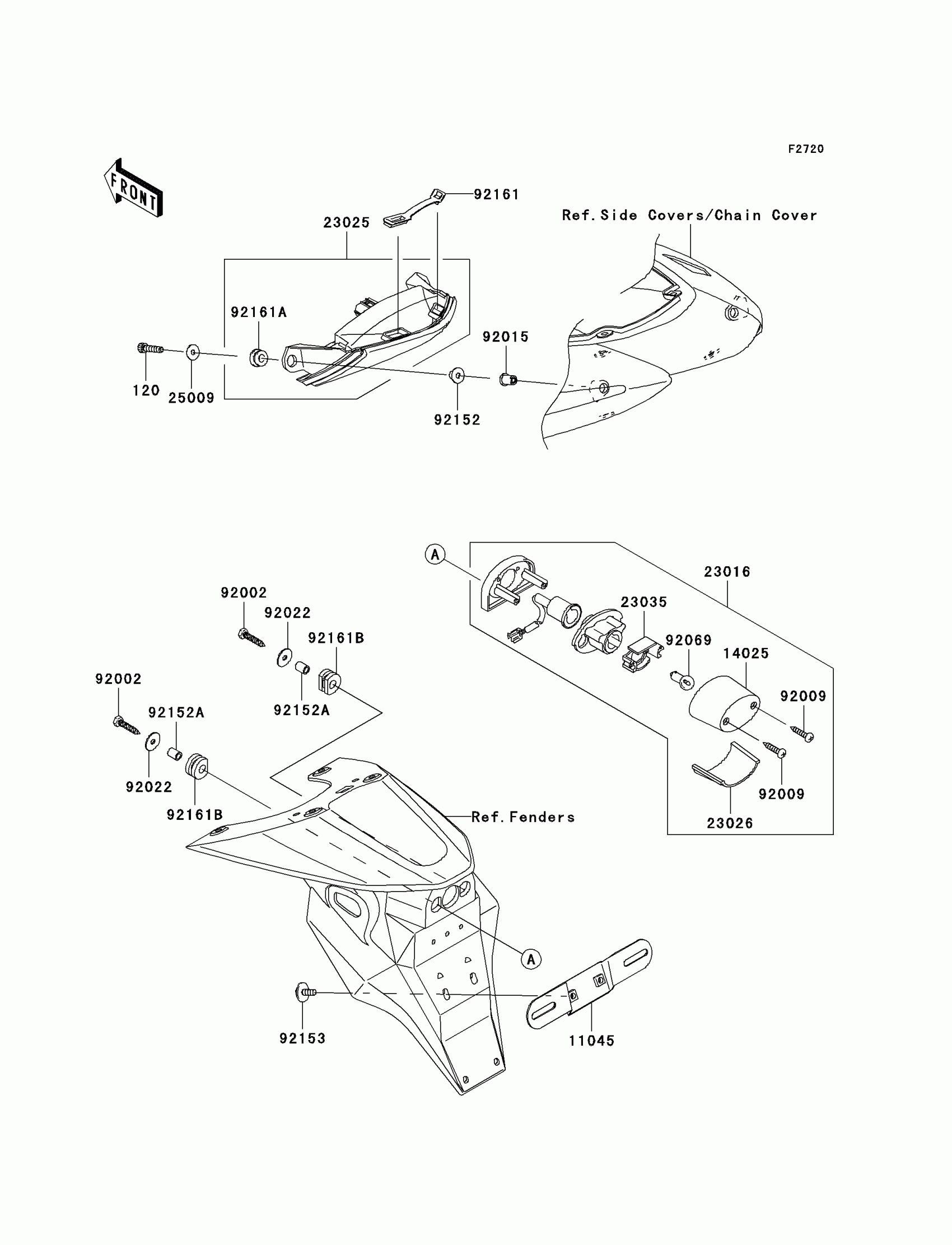

Find the part on the Taillight diagram for your 2005 Kawasaki Z750S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki Z750S Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,5X22

120W0522

1
Out of stock

11045

BRACKET,LICENSE

11045-1387

1

$13.20

In stock

14025

COVER,LICENSE LAMP

14025-1725

1
Out of stock

23016

LAMP-ASSY,LICENSE

23016-1200

1
Out of stock

23025

LAMP-TAIL

23025-0014

1
Out of stock

23026

LENS,LICENSE LAMP

23026-1064

1

$24.51

In stock

23035

1

$17.92

In stock

25009

WASHER,5.2X16X1.2

25009-004

1

$3.03

In stock

92002

BOLT,TAPPING,5X25

92002-1831

1
Out of stock

92009

SCREW,TAPPING,4X20

92009-1378

1
Out of stock

92015

NUT,WELL,5MM

92015-1757

1

$5.81

In stock

92022

WASHER,5.5X20X1.2

92022-1581

1
Out of stock

92069

BULB,12V 5W

92069-1055

1

$4.12

In stock

92152

COLLAR

92152-0092

1

$5.24

In stock

92152A

COLLAR,6X9X11.5

92152-1458

1
Out of stock

92153

BOLT,6X16

92153-0684

1
Out of stock

92161

DAMPER,TAIL LAMP

92161-0191

1

$3.65

In stock

92161A

DAMPER

92161-1188

1

$2.25

In stock

92161B

DAMPER

92161-1313

1
Out of stock
