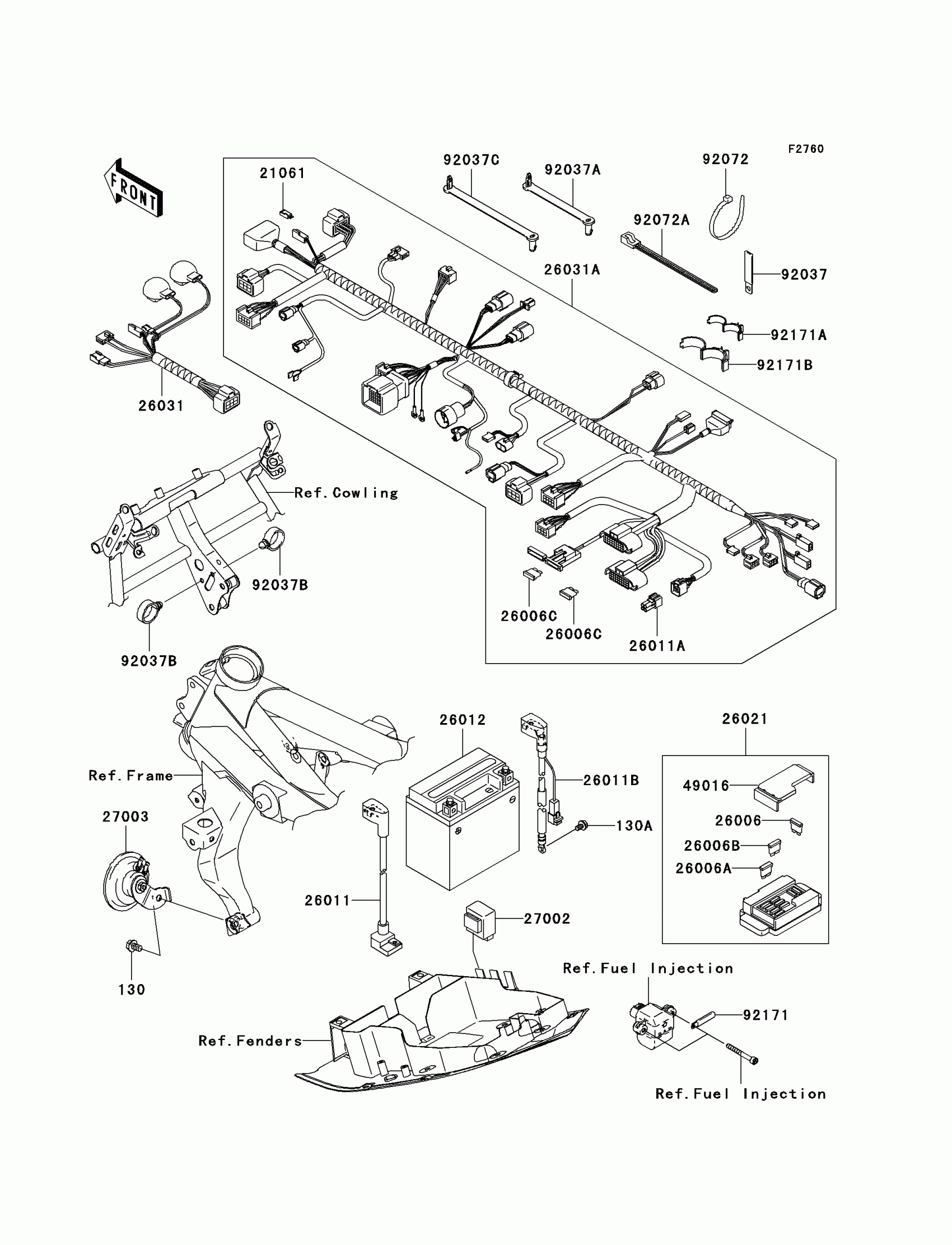

Kawasaki Z750S Chassis Electrical Equipment Diagram

#

Description
Price

130

BOLT-FLANGED,8X12

130L0812

Unavailable

130A

BOLT-FLANGED,6X10

130V0610

Unavailable

21061

RECTIFIER

21061-0001

$29.81

26006

FUSE,BLADE,30A,GREEN

26006-1067

Unavailable

26006A

FUSE,10A-R

26006-1068

Unavailable

26006B

FUSE,15A-B

26006-1069

$4.80

26006C

FUSE,15A

26006-1075

$4.86

26011

WIRE-LEAD,BATTERY(+)

26011-0006

$47.97

26011A

WIRE-LEAD

26011-0037

$12.41

26011B

WIRE-LEAD,BATTERY(-)

26011-0041

$47.95

26012

BATTERY,YTX9-BS,12V 8AH

26012-1326

$145.53

26021

JUNCTION BOX

26021-0003

Unavailable

26031

HARNESS,FR

26031-0256

$137.36

26031A

HARNESS,MAIN

26031-0268

$482.78

27002

RELAY-ASSY,SIGNAL LAMP

27002-1097

$48.33

27003

HORN

27003-0032

$89.63

49016

COVER-SEAL,FUSE

49016-0005

Unavailable

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

Unavailable

92037A

CLAMP,SPEED,L=58

92037-1163

$4.93

92037B

CLAMP,HOSE

92037-1827

$5.69

92037C

CLAMP,SPEED,L=80.5

92037-1903

$5.99

92072

BAND,L=202

92072-1195

$1.16

92072A

BAND,L=250

92072-1237

$1.55

92171

CLAMP

92171-0181

$7.80

92171A

CLAMP,DIA=15

92171-1424

$3.19

92171B

CLAMP,25MM DIA.

92171-1559

$5.39
