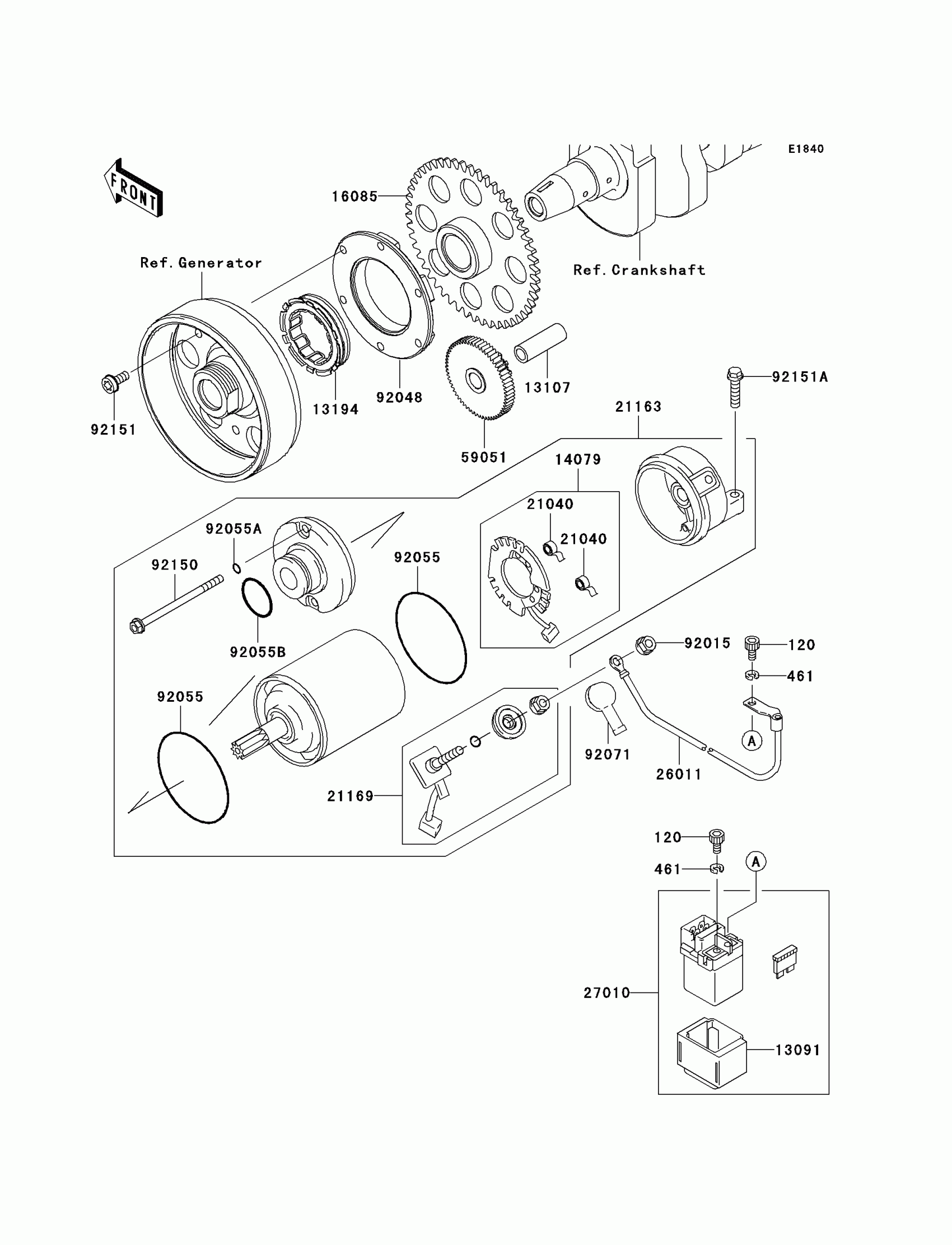

Kawasaki Z750S Starter Motor Diagram

#

Description
Price

120

BOLT-SOCKET,5X10

120S0510

Unavailable

461

WASHER-SPRING,5MM,BLACK

461K0500

Unavailable

13091

HOLDER

13091-1992

$7.47

13107

SHAFT,IDLER GEAR

13107-1377

$5.42

13194

CLUTCH-ONEWAY

13194-1096

$108.18

14079

HOLDER-ASSY,STARTER

14079-0009

$99.58

16085

GEAR,CLUTCH ONEWAY

16085-1303

$129.13

21040

SPRING-BRUSH

21040-0001

$7.56

21163

STARTER-ELECTRIC

21163-0024

Unavailable

21169

TERMINAL,STARTER

21169-1058

$60.22

26011

WIRE-LEAD,STARTER

26011-0015

$73.63

27010

SWITCH,MAGNETIC

27010-1376

Unavailable

59051

GEAR-SPUR,IDLER

59051-0037

$106.68

92015

NUT

92015-1623

$4.59

92048

RACE,CLUTCH ONEWAY

92048-1114

$69.02

92055

RING-O,62MM

92055-1260

Unavailable

92055A

RING-O,4.5MM

92055-1261

$2.29

92055B

RING-O,24.4X3.1

92055-1262

$11.90

92071

GROMMET,STARTER TERMINAL

92071-1120

$12.80

92150

BOLT

92150-1237

$7.46

92151

BOLT,6X14

92151-1335

$2.66

92151A

BOLT,FLANGED-SMALL,6X25

92151-1930

$1.98
