2005 Kawasaki Z750S Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 2005 Kawasaki Z750S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

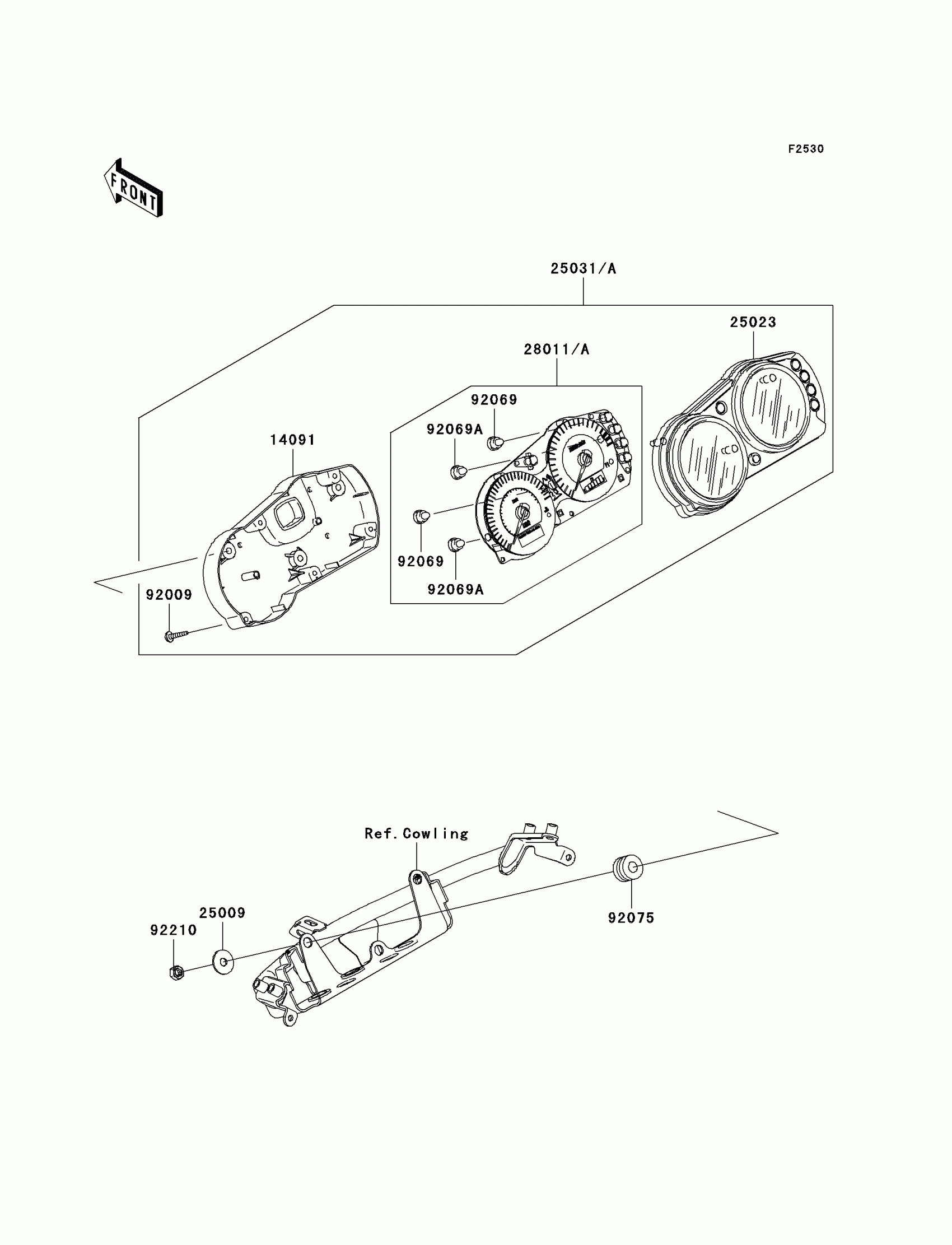

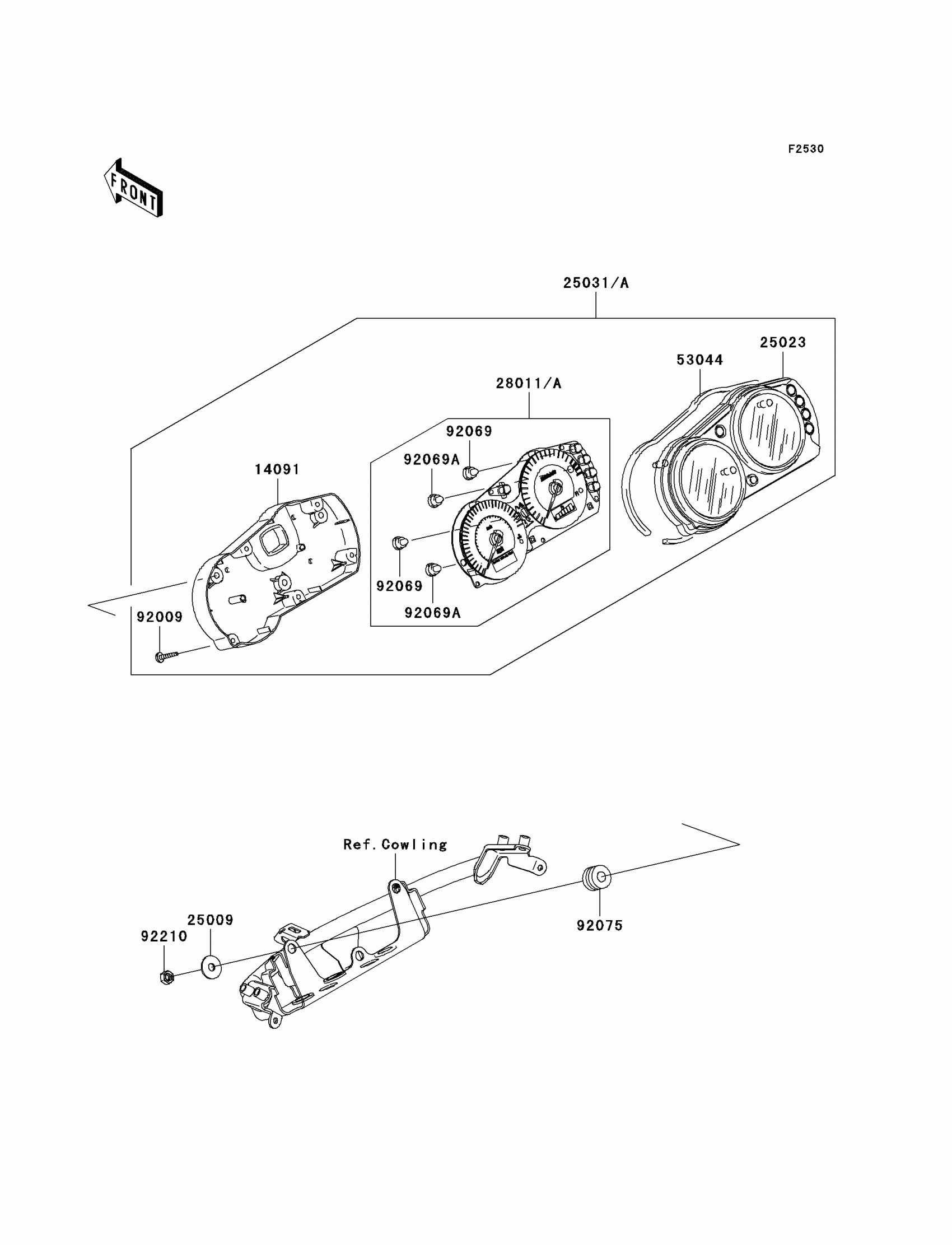

2005 Kawasaki Z750S Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14091

COVER,METER HOUSING

14091-0367

1

$128.84

In stock

25009

WASHER,5.2X16X1.2

25009-004

1

$3.03

In stock

25023

1

$152.55

In stock

92009

SCREW,4X16,BLACK

92009-1158

1
Out of stock

92069

BULB,T3.4,12V1.1W

92069-1110

1

$6.15

In stock

92069A

BULB,T3,12V0.7W

92069-1113

1

$7.59

In stock

92075

DAMPER

92075-1435

1

$5.11

In stock

92210

NUT,5MM

92210-1124

1
Out of stock

25031

METER-ASSY,MPH

25031-0065

1

$1,018.08

In stock

25031A

METER-ASSY,KPH

25031-0071

1
Out of stock

28011

1

$617.97

In stock

28011A

METER,SPEED&TACHO,KPH

28011-0031

1
Out of stock
