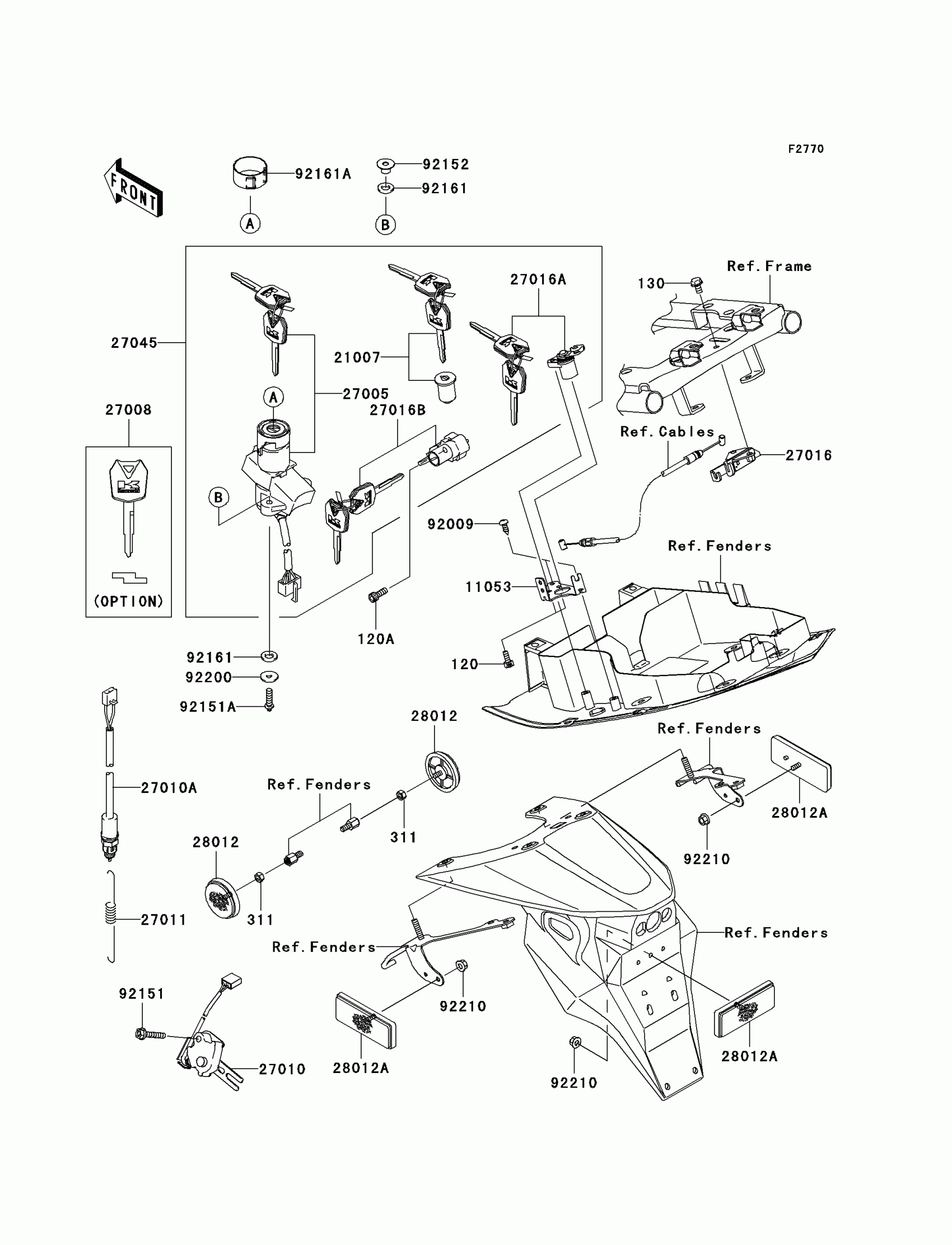

Find the part on the Ignition Switch/locks/reflectors diagram for your 2005 Kawasaki Z750S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki Z750S Ignition Switch/locks/reflectors Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,5X12

120S0512

1
Out of stock

120A

BOLT-SOCKET,6X16

120W0616

1
Out of stock

130

BOLT-FLANGED,6X12

130J0612

1
Out of stock

311

NUT-HEX

311L0500

1
Out of stock

11053

BRACKET,SEAT LOCK

11053-1520

1

$8.53

In stock

21007

ROTOR,LOCK,TANK CAP

21007-5057

1

$86.34

In stock

27005

1

$169.82

In stock

27008

KEY-LOCK,BLANK

27008-0030

1

$14.66

In stock

27010

SWITCH,SIDE STAND

27010-1470

1

$71.61

In stock

27010A

SWITCH,REAR BRAKE

27010-1479

1

$27.22

In stock

27011

1

$23.12

In stock

27016

1

$29.14

In stock

27016A

LOCK-ASSY,SEAT

27016-5309

1

$88.67

In stock

27016B

LOCK-ASSY,HELMET

27016-5326

1

$72.07

In stock

27045

SWITCH-ASSY

27045-5308

1
Out of stock

28012

1

$21.56

In stock

28012A

REFLECTOR-REFLEX

28012-1077

1

$21.76

In stock

92009

SCREW,TAPPING,5X12,BL

92009-1138

1
Out of stock

92151

BOLT,FLANGED,6X30

92151-1216

1
Out of stock

92151A

BOLT,TORX,6X22

92151-1946

1

$3.14

In stock

92152

COLLAR

92152-0288

1
Out of stock

92161

1

$2.15

In stock

92161A

1

$4.95

In stock

92200

WASHER,6X20X1.6

92200-0212

1
Out of stock

92210

NUT,FLANGED,5MM

92210-0007

1
Out of stock
