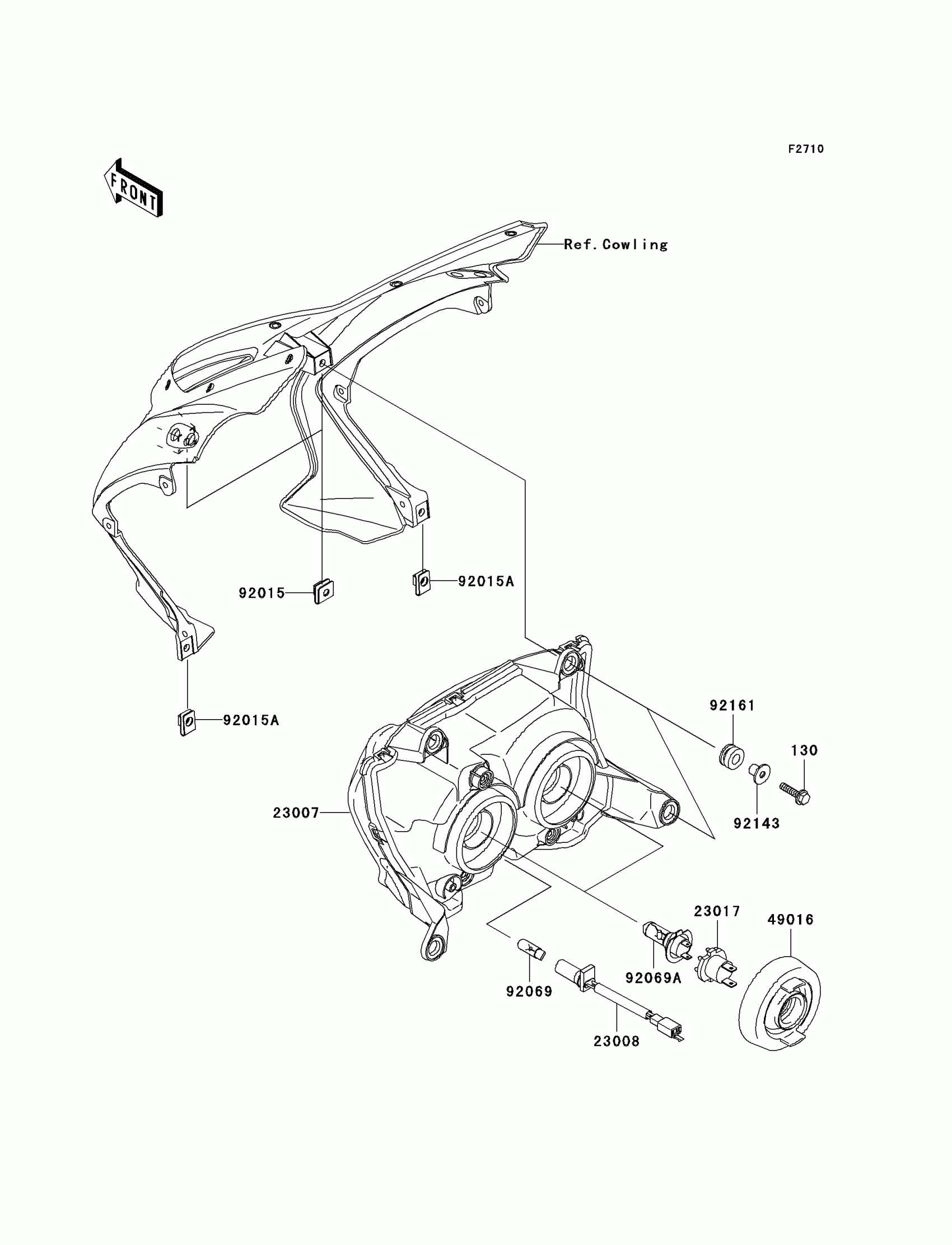

Find the part on the Headlight diagram for your 2005 Kawasaki Z750S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki Z750S Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X25

130L0625

1
Out of stock

23007

LENS-COMP,HEAD LAMP

23007-0042

1

$568.18

In stock

23008

1

$23.53

In stock

23017

SOCKET,HEAD LAMP

23017-1067

1

$92.23

In stock

49016

1

$15.86

In stock

92015

NUT,6MM

92015-1094

1
Out of stock

92015A

NUT,6MM

92015-1602

1

$5.84

In stock

92069

BULB,12V 5W

92069-1016

1

$5.16

In stock

92069A

BULB,12V 55W,H7

92069-1126

1
Out of stock

92143

COLLAR

92143-1353

1

$6.81

In stock

92161

DAMPER

92161-0036

1

$2.29

In stock
