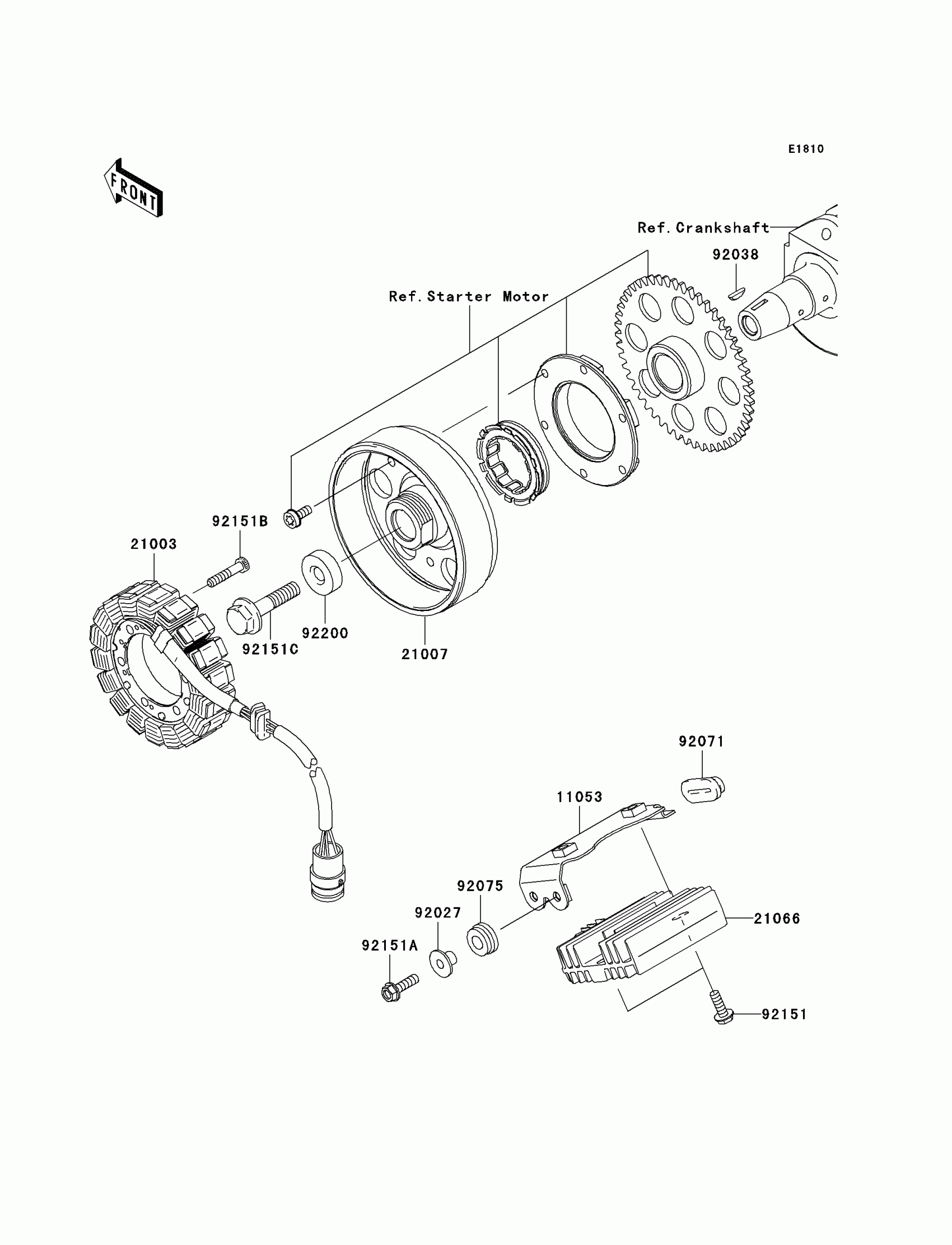

Find the part on the Generator diagram for your 2005 Kawasaki Z750S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki Z750S Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11053

BRACKET,REGULATOR

11053-0210

1

$17.31

In stock

21003

STATOR

21003-0001

1

$658.27

In stock

21007

ROTOR

21007-0021

1

$688.47

In stock

21066

REGULATOR-VOLTAGE

21066-1127

1
Out of stock

92027

COLLAR,L=14.1

92027-1920

1

$5.45

In stock

92038

KEY

92038-1060

1

$7.63

In stock

92071

GROMMET

92071-1187

1

$3.94

In stock

92075

DAMPER,RUBBER

92075-1123

1

$3.97

In stock

92151

BOLT,FLANGED,6X20

92151-1226

1

$2.03

In stock

92151A

BOLT,6X22

92151-1411

1

$2.02

In stock

92151B

BOLT,6X30

92151-1626

1

$2.25

In stock

92151C

BOLT,10X40

92151-1653

1

$3.31

In stock

92200

WASHER

92200-1241

1
Out of stock
