2016 Kawasaki Z1000 ABS Cowling Diagram

← All diagrams

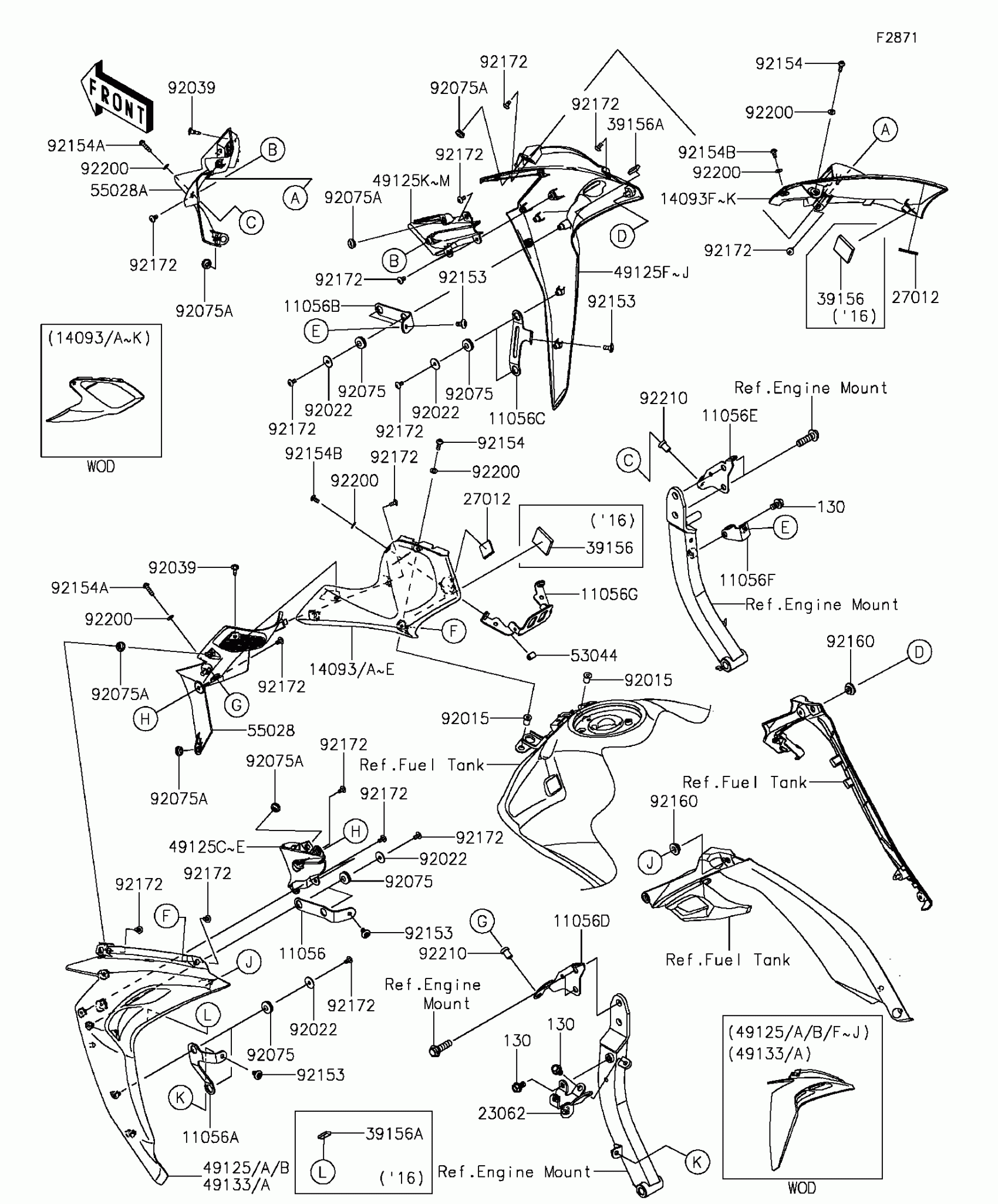

Find the part on the Cowling diagram for your 2016 Kawasaki Z1000 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Kawasaki Z1000 ABS Cowling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET,SHROUD,LH,UPP

11056-2510

1
Out of stock

11056A

BRACKET,SHROUD,LH,LWR

11056-2511

1
Out of stock

11056B

BRACKET,SHROUD,RH,UPP

11056-2512

1
Out of stock

11056C

BRACKET,SHROUD,RH,LWR

11056-2513

1
Out of stock

11056D

BRACKET,INNER COWL.,LH

11056-2514

1
Out of stock

11056E

BRACKET,INNER COWL.,RH

11056-2515

1
Out of stock

11056F

BRACKET

11056-2761

1
Out of stock

11056G

BRACKET,IGNITION SW.

11056-3933

1
Out of stock

14093D

COVER,DUCT,LH,M.M.C.GRAY

14093-0089-51B

1
Out of stock

14093E

COVER,DUCT,LH,M.M.G.GRAY

14093-0089-53U

1
Out of stock

14093J

COVER,DUCT,RH,M.M.C.GRAY

14093-0090-51B

1
Out of stock

14093K

COVER,DUCT,RH,M.M.G.GRAY

14093-0090-53U

1
Out of stock

23062

BRACKET-COMP

23062-0788

1
Out of stock

27012

HOOK,FASTENER,20X30

27012-0776

1
Out of stock

39156

PAD,35X35X5

39156-1736

1
Out of stock

39156A

PAD,8X30X4

39156-1792

1
Out of stock

49125C

SHROUD,LH,SLAT,G.B.GREEN

49125-0575-40R

1
Out of stock

49125D

SHROUD,LH,SLAT,C.C.RED

49125-0575-53R

1
Out of stock

49125H

SHROUD,RH,M.M.C.GRAY

49125-0576-51B

1
Out of stock

130

BOLT-FLANGED,8X14

130BB0814

1
Out of stock

49125I

SHROUD,RH,M.M.G.GRAY

49125-0576-53U

1
Out of stock

49125K

SHROUD,RH,SLAT,G.B.GREEN

49125-0577-40R

1
Out of stock

49125L

SHROUD,RH,SLAT,C.C.RED

49125-0577-53R

1
Out of stock

49133

SHROUD,LH,M.M.C.GRAY

49133-0017-51B

1
Out of stock

49133A

SHROUD,LH,M.M.G.GRAY

49133-0017-53U

1
Out of stock

53044

TRIM

53044-0577

1
Out of stock

55028

COWLING,INNER,LH

55028-0492

1
Out of stock

55028A

COWLING,INNER,RH

55028-0493

1
Out of stock

92015

NUT,WELL,5MM

92015-1757

1
Out of stock

92022

WASHER,5.5X20X1.2

92022-1405

1
Out of stock

92039

RIVET

92039-0068

1
Out of stock

92075

DAMPER RUBBER

92075-051

1
Out of stock

92075A

DAMPER,6X16X7

92075-1011

1
Out of stock

92153

BOLT,SOCKET,6X12

92153-1948

1
Out of stock

92154

BOLT,SOCKET,5X16

92154-0209

1
Out of stock

92154A

BOLT,SOCKET,5X20

92154-0210

1
Out of stock

92154B

BOLT,SOCKET,5X10

92154-0211

1
Out of stock

92160

DAMPER

92160-1613

1
Out of stock

92172

SCREW,TAPPING,5X10

92172-0262

1
Out of stock

92200

WASHER,NYLONE,5.3X11.5X0.5

92200-0006

1
Out of stock

92210

NUT,5MM

92210-0001

1
Out of stock
