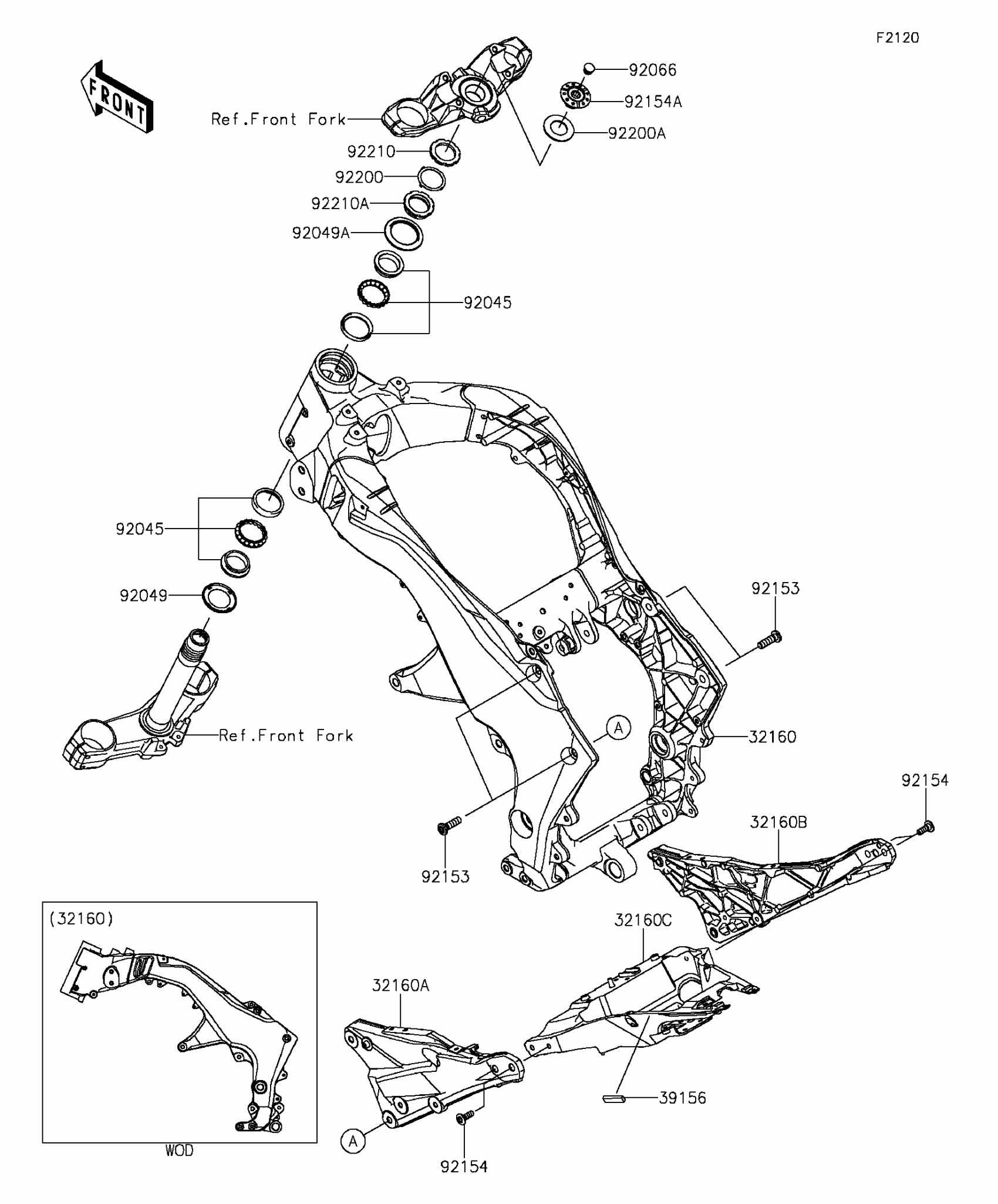

Find the part on the Frame diagram for your 2016 Kawasaki Z1000 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Kawasaki Z1000 ABS Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32160

FRAME-COMP,MAIN,F.S.BLACK

32160-0694-18R

1
Out of stock

32160A

FRAME-COMP,RR,LH,F.S.BLACK

32160-0695-18R

1
Out of stock

32160B

FRAME-COMP,RR,RH,F.S.BLACK

32160-0696-18R

1
Out of stock

32160C

FRAME-COMP,RR

32160-0697

1
Out of stock

39156

PAD,10X34X5

39156-1811

1
Out of stock

92045

BEARING-BALL,SF07A17PX1V1

92045-1384

1
Out of stock

92049

SEAL-OIL,DS35X55X4

92049-0022

1
Out of stock

92049A

SEAL-OIL,43X55.5X8.6

92049-0742

1
Out of stock

92066

PLUG

92066-0071

1
Out of stock

92153

BOLT,SOCKET,10X35

92153-1442

1
Out of stock

92154

BOLT,SOCKET,8X23

92154-0379

1
Out of stock

92154A

BOLT,TOP

92154-1243

1
Out of stock

92200

WASHER

92200-0036

1
Out of stock

92200A

WASHER,27X48X2.3

92200-0892

1
Out of stock

92210

NUT,35MM

92210-0095

1
Out of stock

92210A

NUT,35MM

92210-0823

1
Out of stock
