2016 Kawasaki Z1000 ABS Turn Signals Diagram

← All diagrams

Find the part on the Turn Signals diagram for your 2016 Kawasaki Z1000 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

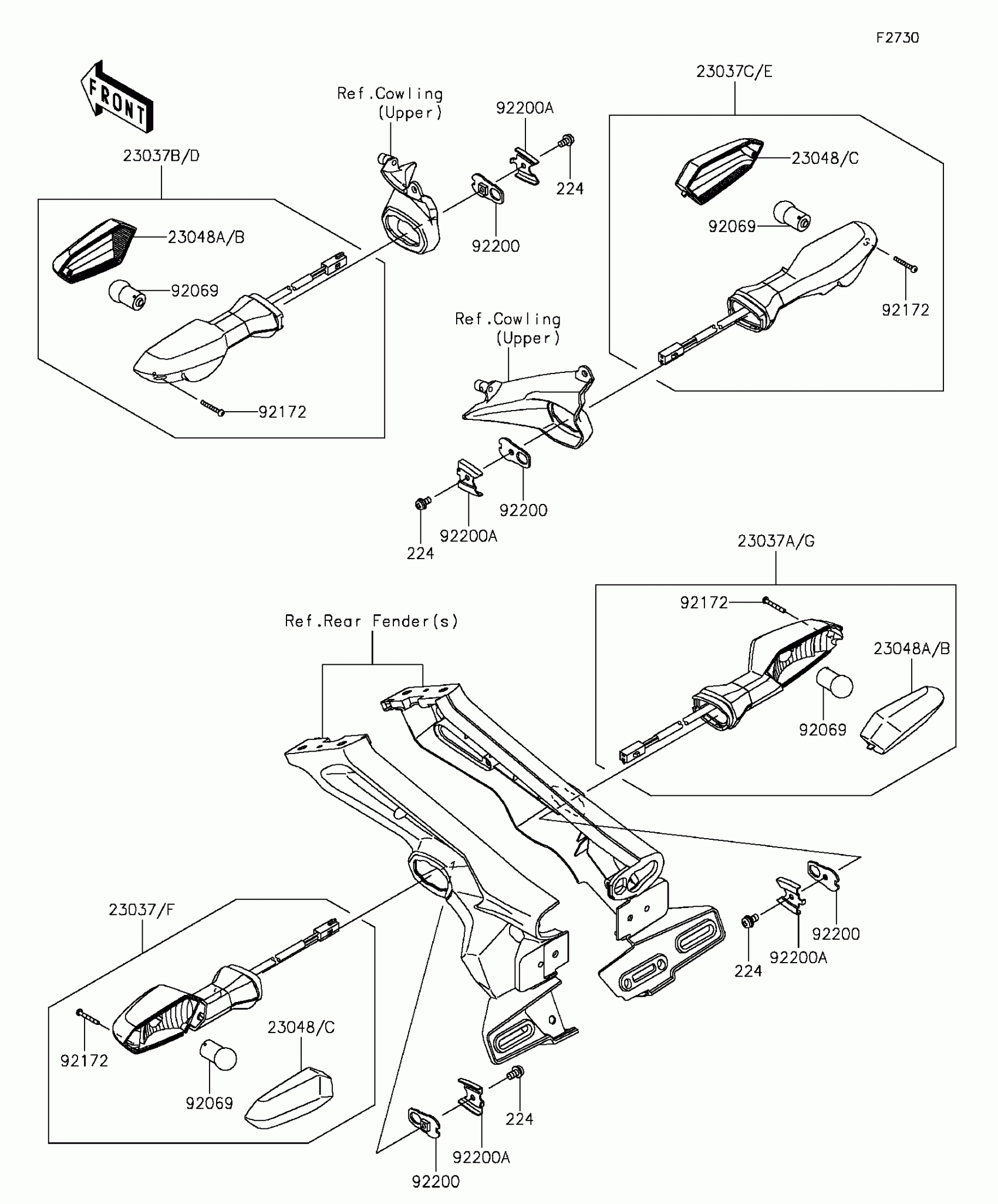

2016 Kawasaki Z1000 ABS Turn Signals Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

224

SCREW-PAN-WP-CROS,4X8

224AB0408

1
Out of stock

23037D

1

$64.78

In stock

23037E

1

$64.78

In stock

23037F

1

$64.85

In stock

23037G

1

$64.85

In stock

23048B

LENS-SIGNAL LAMP

23048-0025

1

$11.98

In stock

23048C

LENS-SIGNAL LAMP

23048-0026

1

$11.98

In stock

92069

BULB,12V 10W

92069-0076

1

$3.30

In stock

92172

SCREW,2.9X22

92172-0395

1

$3.27

In stock

92200

WASHER,NUT 4MM

92200-0854

1
Out of stock

92200A

WASHER

92200-0855

1
Out of stock
