2016 Kawasaki Z1000 ABS Front Fender Diagram

← All diagrams

Find the part on the Front Fender diagram for your 2016 Kawasaki Z1000 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

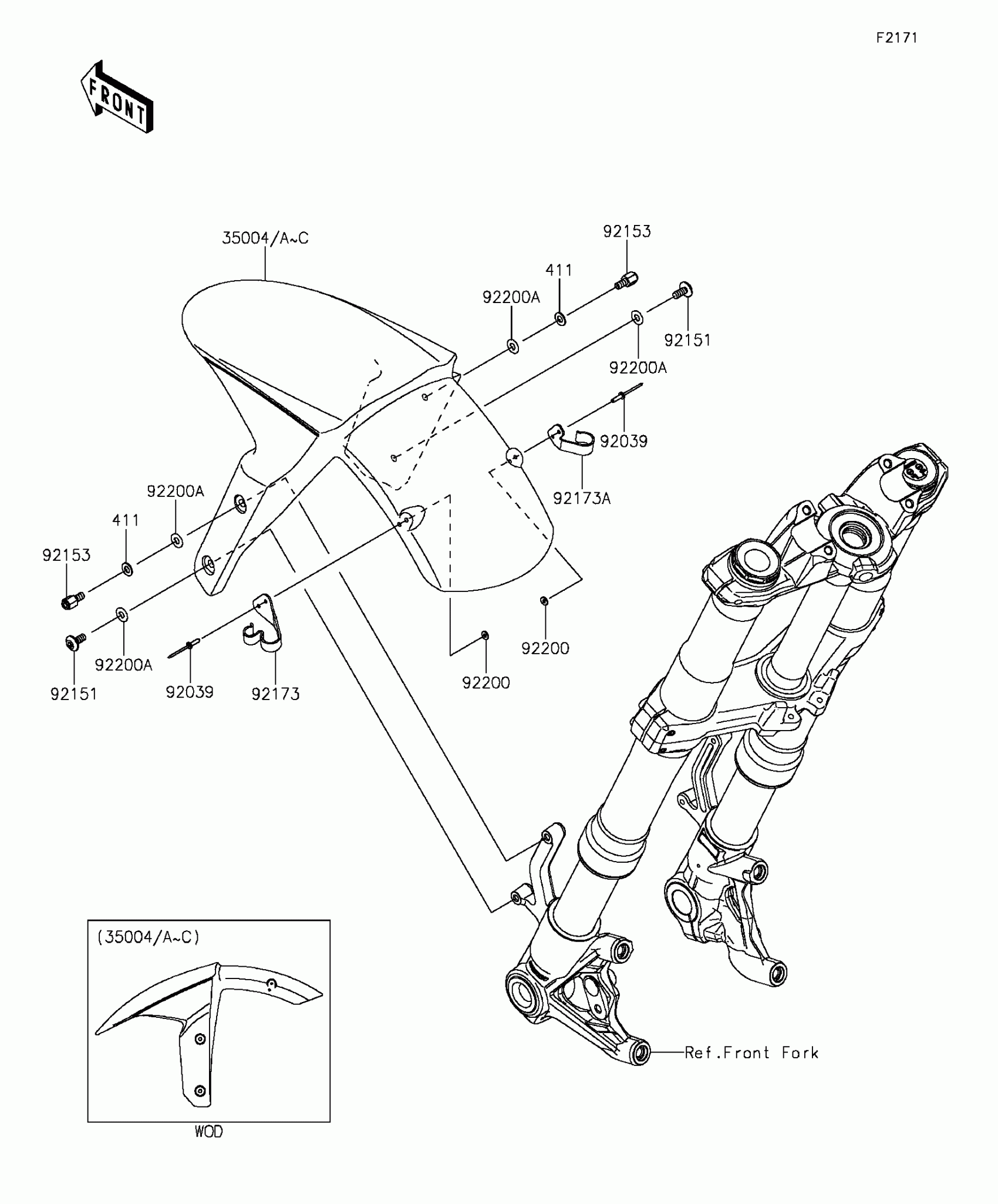

2016 Kawasaki Z1000 ABS Front Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

35004A

FENDER-FRONT,M.M.C.GRAY

35004-0310-51B

1
Out of stock

35004C

FENDER-FRONT,M.F.S.BLACK

35004-0310-739

1
Out of stock

411

WASHER-PLAIN,6MM

411AB0600

1
Out of stock

92039

RIVET

92039-0705

1
Out of stock

92151

BOLT,SOCKET,6X14

92151-1654

1
Out of stock

92153

BOLT,6MM

92153-0335

1
Out of stock

92173

CLAMP,FR FENDER,LH

92173-1153

1
Out of stock

92173A

CLAMP,FR FENDER,RH

92173-1154

1
Out of stock

92200

WASHER,3.5X8X1

92200-1251

1
Out of stock

92200A

WASHER,6.5X14X1

92200-1388

1
Out of stock
