2016 Kawasaki Z1000 ABS Decals Diagram

← All diagrams

Find the part on the Decals diagram for your 2016 Kawasaki Z1000 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

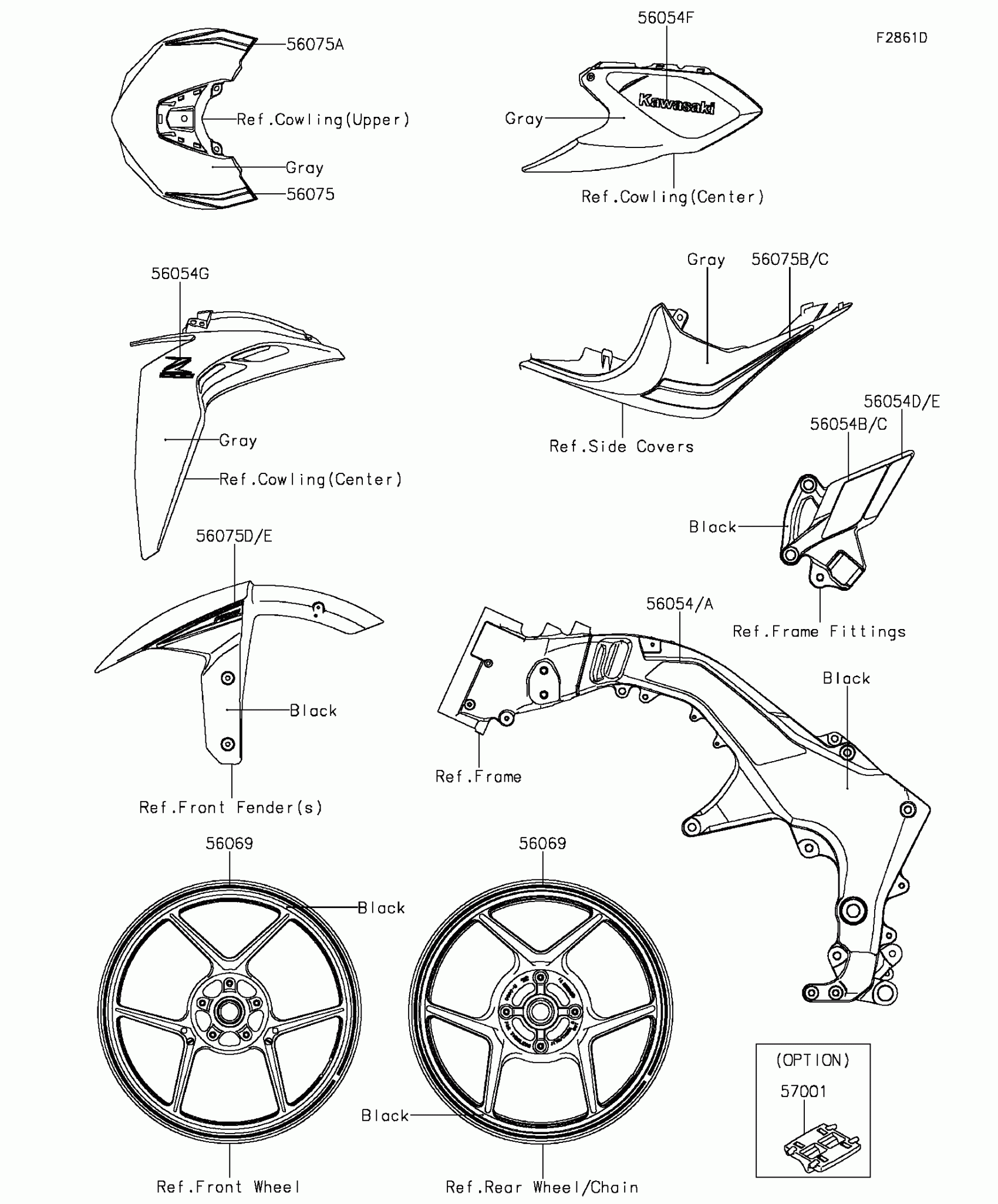

2016 Kawasaki Z1000 ABS Decals Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

56054

MARK,FRAME PAD,LH

56054-0607

1
Out of stock

56054A

MARK,FRAME PAD,RH

56054-0608

1
Out of stock

56054B

MARK,STEP STAY,LH

56054-1245

1
Out of stock

56054C

MARK,STEP STAY,RH

56054-1246

1
Out of stock

56054D

MARK,STEP STAY,LWR,LH

56054-1280

1
Out of stock

56054E

MARK,STEP STAY,LWR,RH

56054-1281

1
Out of stock

56054F

MARK,KAWASAKI

56054-1876

1
Out of stock

56054G

MARK,SHROUD,Z1000

56054-1877

1
Out of stock

56069

PATTERN,WHEEL,GRN,4X1353

56069-2527

1
Out of stock

56075

PATTERN,UPP COWL.,LH

56075-1056

1
Out of stock

56075A

PATTERN,UPP COWL.,RH

56075-1057

1
Out of stock

56075B

PATTERN,TAIL COVER,LH

56075-1058

1
Out of stock

56075C

PATTERN,TAIL COVER,RH

56075-1059

1
Out of stock

56075D

PATTERN,FR FENDER,LH

56075-1075

1
Out of stock

56075E

PATTERN,FR FENDER,RH

56075-1076

1
Out of stock

57001

RIM STRIPE APPLICATOR

57001-1752

—
Out of stock
