2016 Kawasaki Z1000 ABS Frame Fittings Diagram

← All diagrams

Find the part on the Frame Fittings diagram for your 2016 Kawasaki Z1000 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

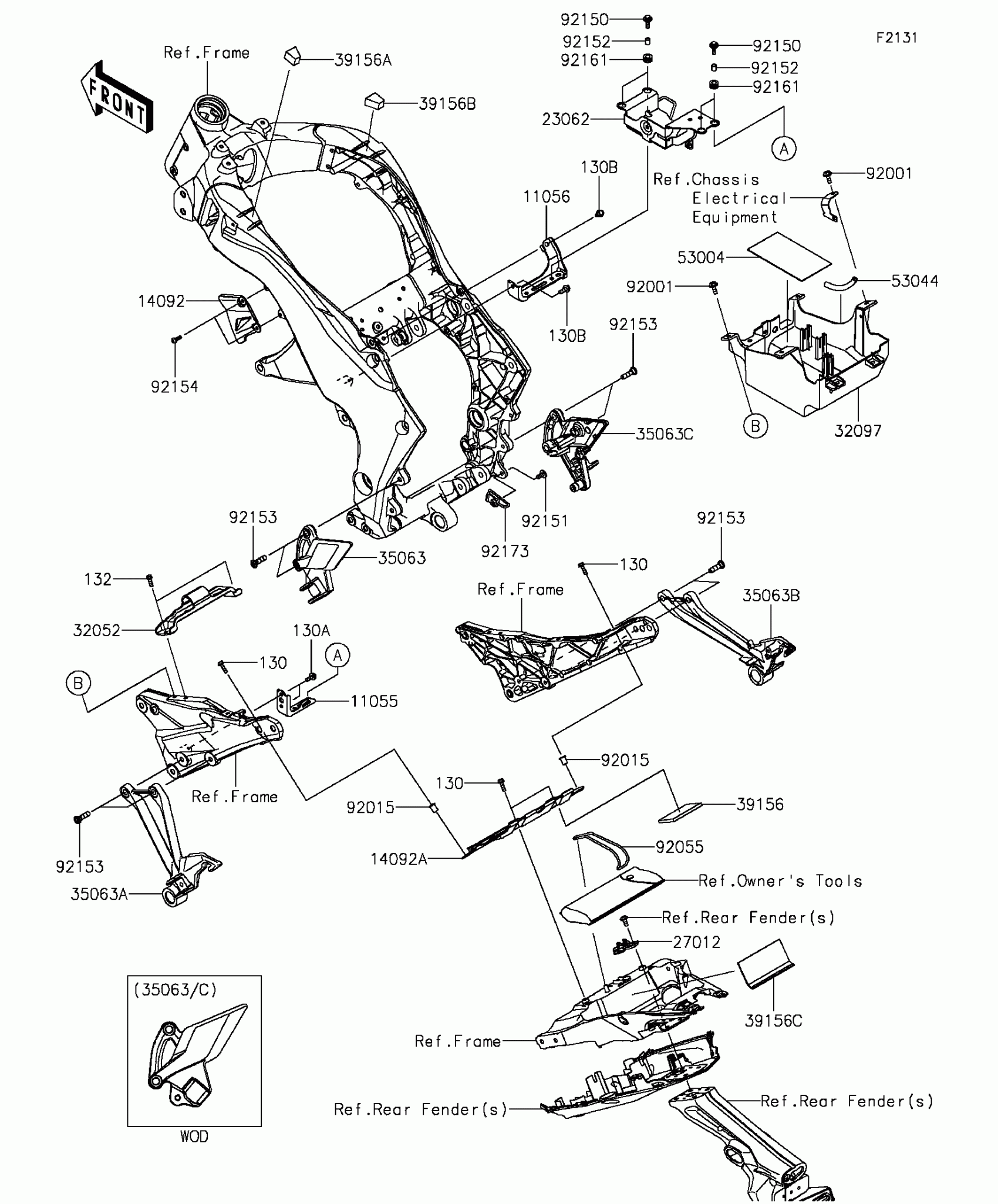

2016 Kawasaki Z1000 ABS Frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11055

BRACKET,REGULATOR

11055-1951

1
Out of stock

11056

BRACKET,REGULATOR

11056-0169

1
Out of stock

130

BOLT-FLANGED,5X18

130BA0518

1
Out of stock

130A

BOLT-FLANGED,6X14

130BA0614

1
Out of stock

130B

BOLT-FLANGED,6X16

130BA0616

1
Out of stock

132

BOLT-FLANGED-SMALL,6X16

132BA0616

1
Out of stock

14092

COVER,THROBO

14092-0016

1
Out of stock

14092A

COVER,ECU

14092-1135

1
Out of stock

23062

BRACKET-COMP,ABS

23062-0816

1
Out of stock

27012

HOOK,TOOL BAND

27012-0779

1
Out of stock

32052

BRACKET-TANK

32052-0155

1
Out of stock

32097

CASE-BATTERY

32097-0042

1
Out of stock

35063

STAY,FR,LH,F.S.BLACK

35063-0657-18R

1
Out of stock

35063A

STAY,RR,LH,F.S.BLACK

35063-0659-18R

1
Out of stock

35063B

STAY,RR,RH,F.S.BLACK

35063-0660-18R

1
Out of stock

35063C

STAY,FR,RH,F.S.BLACK

35063-0920-18R

1
Out of stock

39156

PAD,45X75X5

39156-0866

1
Out of stock

39156A

PAD,FR FRM,LH

39156-1733

1
Out of stock

39156B

PAD,FR FRM,RH

39156-1734

1
Out of stock

39156C

PAD,RR FRM

39156-1778

1
Out of stock

53004

MAT,BATTERY

53004-0560

1
Out of stock

53044

TRIM

53044-0018

1
Out of stock

92001

BOLT,6X18

92001-1342

1
Out of stock

92015

NUT,WELL,5MM

92015-1757

1
Out of stock

92055

RING-O,66.6X3.5

92055-0778

1
Out of stock

92150

BOLT,6X20

92150-1339

1
Out of stock

92151

BOLT,SOCKET,6X14

92151-1654

1
Out of stock

92152

COLLAR,6.1X8.1X9

92152-1782

1
Out of stock

92153

BOLT,SOCKET,8X30

92153-1624

1
Out of stock

92154

BOLT,SOCKET,5X16

92154-0209

1
Out of stock

92161

DAMPER,8.2X16X8.3

92161-1584

1
Out of stock

92173

CLAMP

92173-0151

1
Out of stock
