2016 Kawasaki Z1000 ABS Footrests Diagram

← All diagrams

Find the part on the Footrests diagram for your 2016 Kawasaki Z1000 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

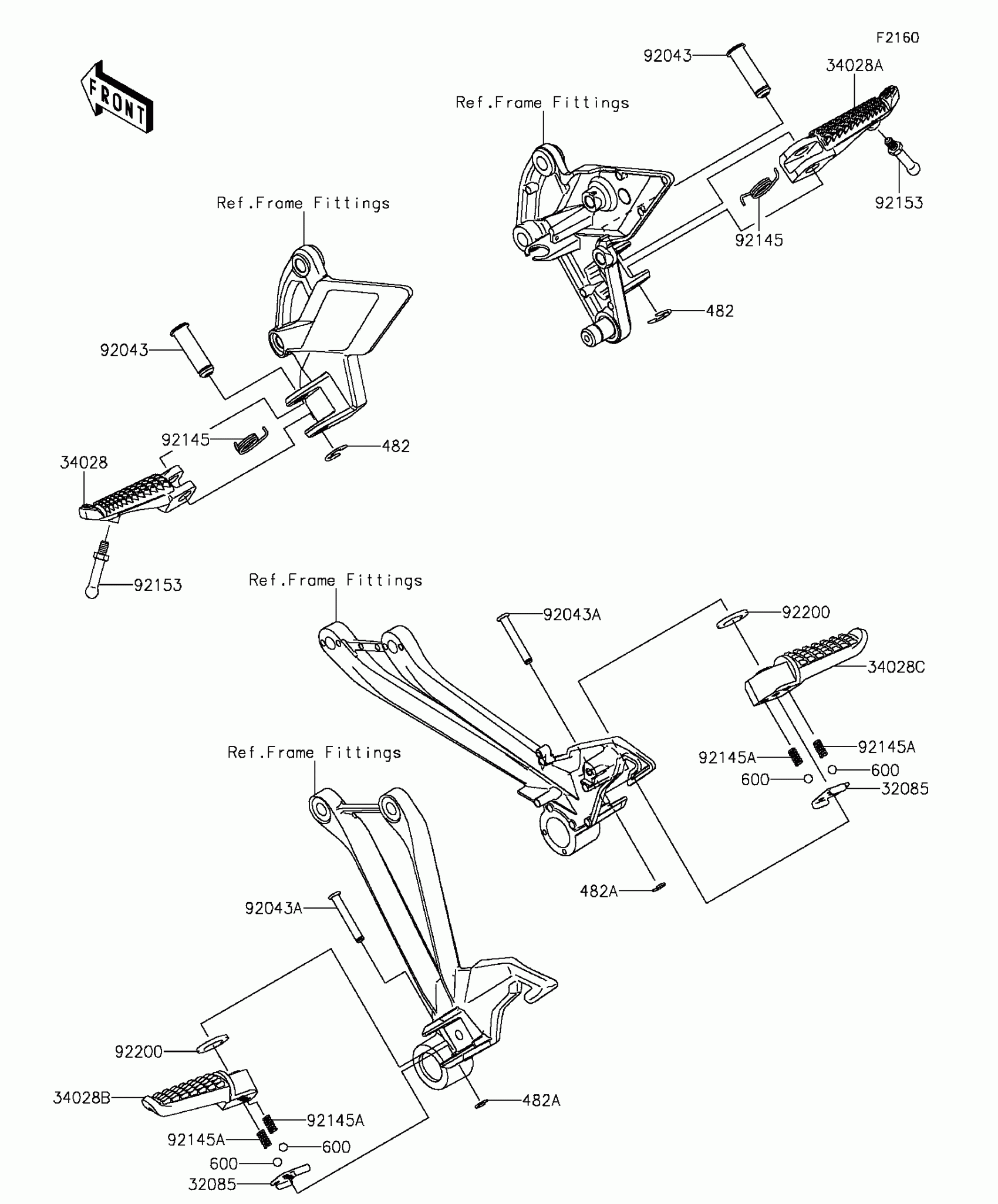

2016 Kawasaki Z1000 ABS Footrests Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32085

STOPPER,REAR STEP

32085-0047

1
Out of stock

34028

STEP,FR,LH

34028-0092

1
Out of stock

34028A

STEP,FR,RH

34028-0093

1
Out of stock

34028B

STEP,RR,LH

34028-0094

1
Out of stock

34028C

STEP,RR,RH

34028-0095

1
Out of stock

482

CIRCLIP-TYPE-E,10MM

482EA0100

1
Out of stock

482A

CIRCLIP-TYPE-E

482EA5000

1
Out of stock

600

BALL-STEEL,1/4

600A0800

1
Out of stock

92043

PIN,12X42.5

92043-1594

1
Out of stock

92043A

PIN,6X40

92043-1595

1
Out of stock

92145

SPRING,STEP RETURN

92145-0603

1
Out of stock

92145A

SPRING

92145-1319

1
Out of stock

92153

BOLT,BANK SENSOR

92153-1938

1
Out of stock

92200

WASHER,16X26X2.3

92200-0043

1
Out of stock
