2024 Kawasaki Z e-1 ABS Ignition Switch/locks/reflectors Diagram

← All diagrams

Find the part on the Ignition Switch/locks/reflectors diagram for your 2024 Kawasaki Z e-1 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

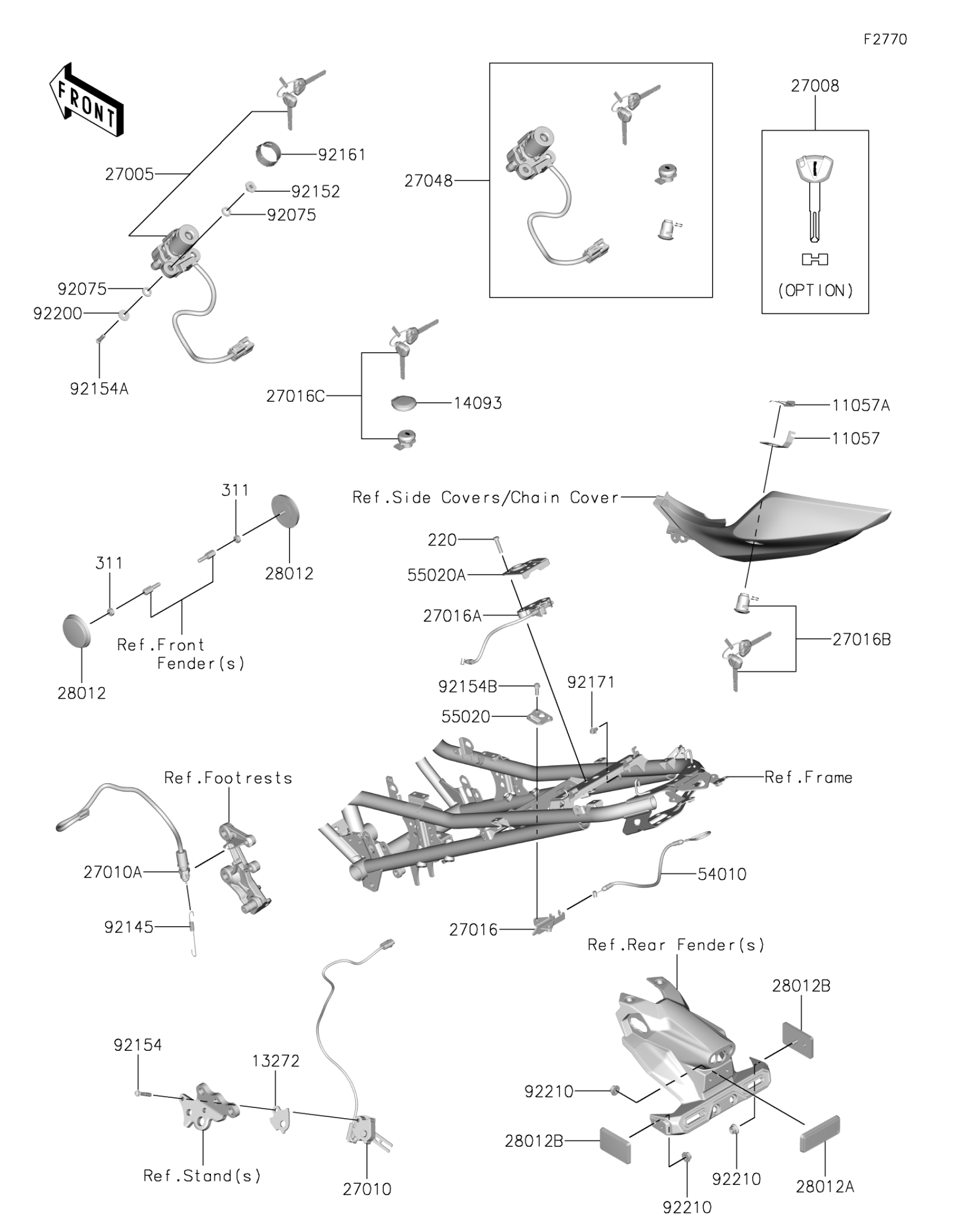

2024 Kawasaki Z e-1 ABS Ignition Switch/locks/reflectors Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,SEAT LOCK

11057-7033

1

$3.93

In stock

11057A

1

$1.76

In stock

13272

PLATE

13272-1330

1

$2.95

In stock

14093

COVER,KEY

14093-1525

1

$4.49

In stock

27005

1

$181.84

In stock

27008

KEY-LOCK,BLANK

27008-0662

1

$26.43

In stock

27010

SWITCH,SIDE STAND

27010-0845

1

$120.25

In stock

27010A

SWITCH,STOP

27010-0863

1

$29.63

In stock

27016

1

$14.14

In stock

27016A

1

$29.27

In stock

27016B

LOCK-ASSY,SEAT

27016-5430

1

$137.10

In stock

27016C

LOCK-ASSY,STORAGE

27016-5435

1

$137.11

In stock

27048

SWITCH-ASSY

27048-5327

1

$433.50

In stock

28012

1

$22.37

In stock

28012A

REFLECTOR-REFLEX

28012-1077

1

$21.76

In stock

28012B

REFLECTOR-REFLEX

28012-1088

1

$20.82

In stock

54010

CABLE

54010-0621

1
Out of stock

55020

GUARD,SEAT STRIKER

55020-2246

1
Out of stock

55020A

GUARD,SEAT STRIKER

55020-2477

1

$7.58

In stock

92075

DAMPER

92075-1564

1

$4.35

In stock

92145

1

$2.92

In stock

92152

COLLAR,6X9X10.6

92152-1971

1
Out of stock

92154

BOLT,FLANGED,6X35

92154-1009

1

$2.68

In stock

92154A

BOLT,TORX,6X22

92154-1858

1

$3.14

In stock

92154B

1

$1.81

In stock

92161

DAMPER

92161-1506

1

$5.25

In stock

92171

CLAMP

92171-0939

1

$3.93

In stock

92200

WASHER,6X20X1.6

92200-0780

1
Out of stock

92210

NUT,FLANGED,5MM

92210-0007

1
Out of stock

220

1

$1.10

In stock

311

NUT-HEX,5MM

311AB0500

1

$0.49

In stock
