1986 Yamaha YTM225DRS Swing ARM Diagram

← All diagrams

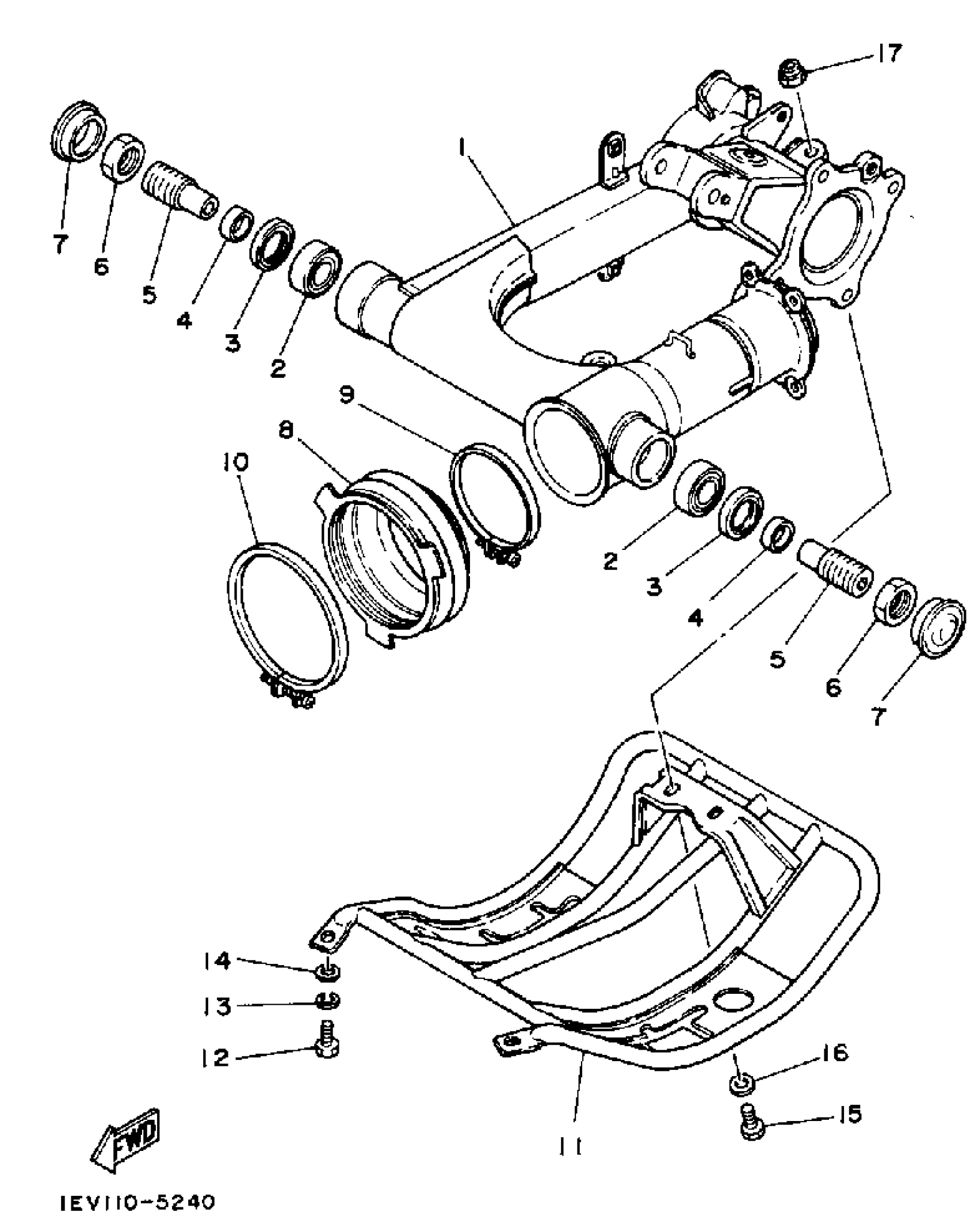

Find the part on the Swing ARM diagram for your 1986 Yamaha YTM225DRS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Yamaha YTM225DRS Swing ARM Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REAR ARM

1EV-22110-00-33

1
Out of stock

2

BRG,CYL-CAL ROLLER 74G KY

93332-00010-00

1

$41.17

In stock

3

OIL SEAL (25X40X5-101)

93102-25017-00

1

$4.20

In stock

4

COLLAR

90387-17011-00

1

$12.78

In stock

5

SHAFT, PIVOT

4WV-22141-00-00

1
Out of stock

6

NUT, PIVOT SHAFT

1J7-22143-00-00

1

$20.40

In stock

7

PLUG (1J7)

90338-34069-00

—

$7.51

In stock

8

BOOT, RUBBER

29U-22189-00-00

—

$58.03

In stock

9

CLAMP, HOSE

90460-80229-00

1
Out of stock

10

CLAMP, HOSE (29U)

90460-99228-00

1

$14.60

In stock

11

COVER

29U-2219X-00-00

1
Out of stock

11

COVER

(29U-2219X-10-00)

1
Out of stock

12

BOLT, HEXAGON

97013-08016-00

1

$1.32

In stock

13

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

14

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

15

BOLT, HEXAGON

97013-08016-00

1

$1.32

In stock

16

WASHER, PLATE (33N)

90201-094G1-00

—

$6.98

In stock

17

NUT, SELF-LOCKING (3Y2)

90185-08089-00

—

$7.31

In stock
