1986 Yamaha YTM225DRS Handlebar-Cable Diagram

← All diagrams

Find the part on the Handlebar-Cable diagram for your 1986 Yamaha YTM225DRS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

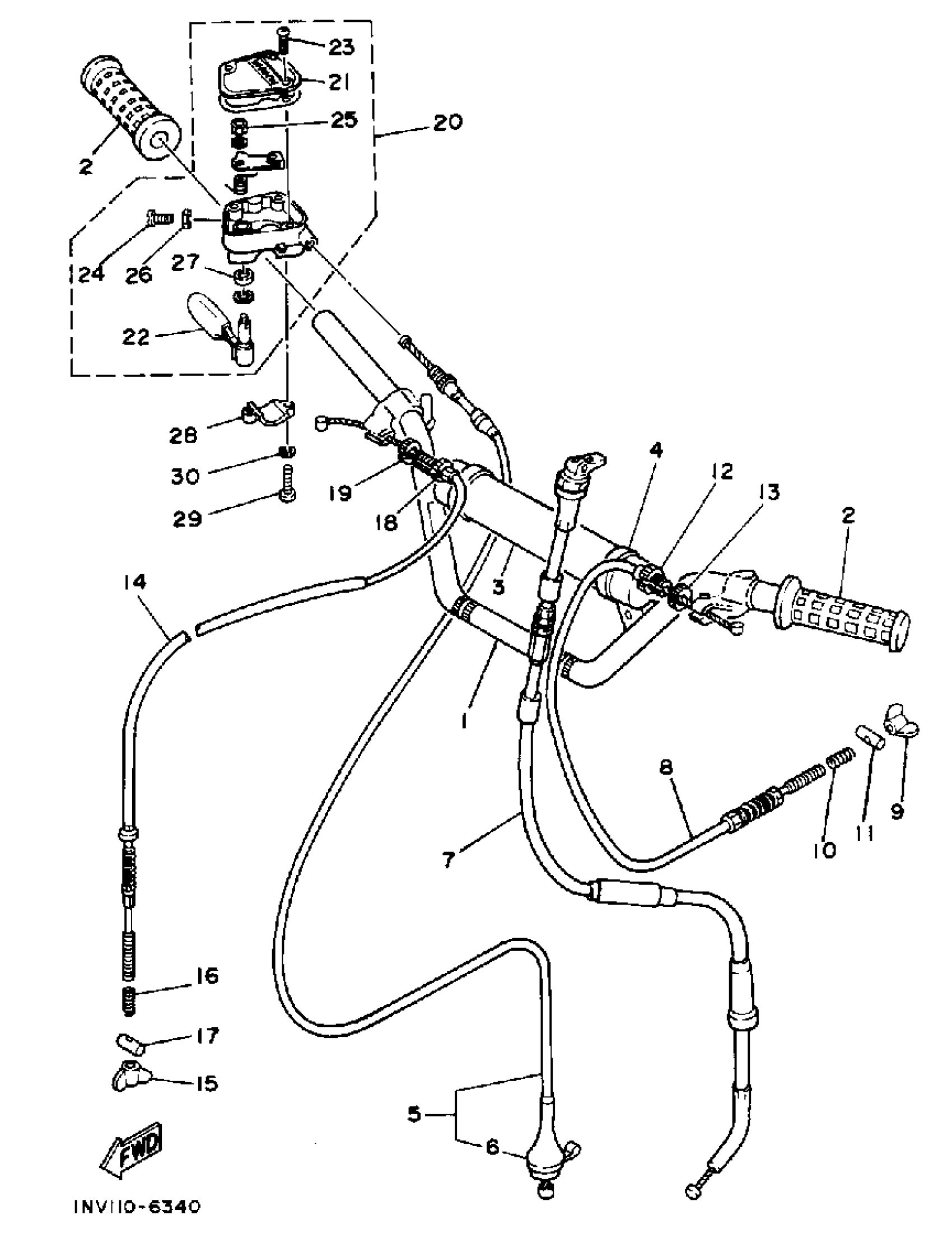

1986 Yamaha YTM225DRS Handlebar-Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

29U-26111-01-00

1
Out of stock

2

GRIP (L.H)

3GB-26241-00-00

1

$19.00

In stock

3

PROTECTOR, HDLBR

(2X1-26124-00-00)

1
Out of stock

4

BAND, SWITCH CORD

437-83936-11-00

1

$3.20

In stock

5

CABLE, THROTTLE 1

1NV-26311-00-00

1
Out of stock

6

. CAP, RUBBER

21V-26329-00-00

1
Out of stock

7

CABLE, STARTER 1

29U-26331-00-00

1
Out of stock

8

CABLE, BRAKE

29U-26341-00-00

1
Out of stock

9

NUT, AJUSTING

20E-26343-00-00

1

$22.28

In stock

10

SPRING, COMPRESSION (29U)

90501-10782-00

1
Out of stock

11

PIN 1562723700

90249-12008-00

1

$4.70

In stock

12

BOLT

90123-08002-00

1

$8.93

In stock

13

NUT

90179-08030-00

1

$3.78

In stock

14

CABLE, BRAKE 4

29U-26373-00-00

1
Out of stock

15

NUT (25K)

90179-06411-00

1

$5.10

In stock

16

SPRING, COMPRESSION (29U)

90501-10782-00

1
Out of stock

17

PIN 1562723700

90249-12008-00

1

$4.70

In stock

18

BOLT

90123-08002-00

1

$8.93

In stock

19

NUT

90179-08030-00

1

$3.78

In stock

20

THROTTLE LEVER ASSY

1NV-26250-01-00

—
Out of stock

21

. CAP, GEAR

1NV-2628F-00-00

1
Out of stock

22

. LEVER, THROTTLE

1NV-2625G-00-00

1
Out of stock

23

SCREW, PAN

98517-05012-00

—

$3.91

In stock

24

SCREW, PAN HEAD

98517-05020-00

—

$1.35

In stock

25

NUT, U (7LY)

95617-04100-00

—

$6.92

In stock

26

NUT, HEXAGON SMALL

95317-05700-00

—

$6.18

In stock

27

OIL SEAL (9X15X4-256)

93104-09025-00

—

$5.46

In stock

28

HOLDER, LEVER LOWER

4V4-82913-00-00

—
Out of stock

29

SCREW, PAN HEAD

98517-05020-00

—

$1.35

In stock

30

WASHER(3SX)

92907-05100-00

—

$6.18

In stock
