1986 Yamaha YTM225DRS Rear Shocks Diagram

← All diagrams

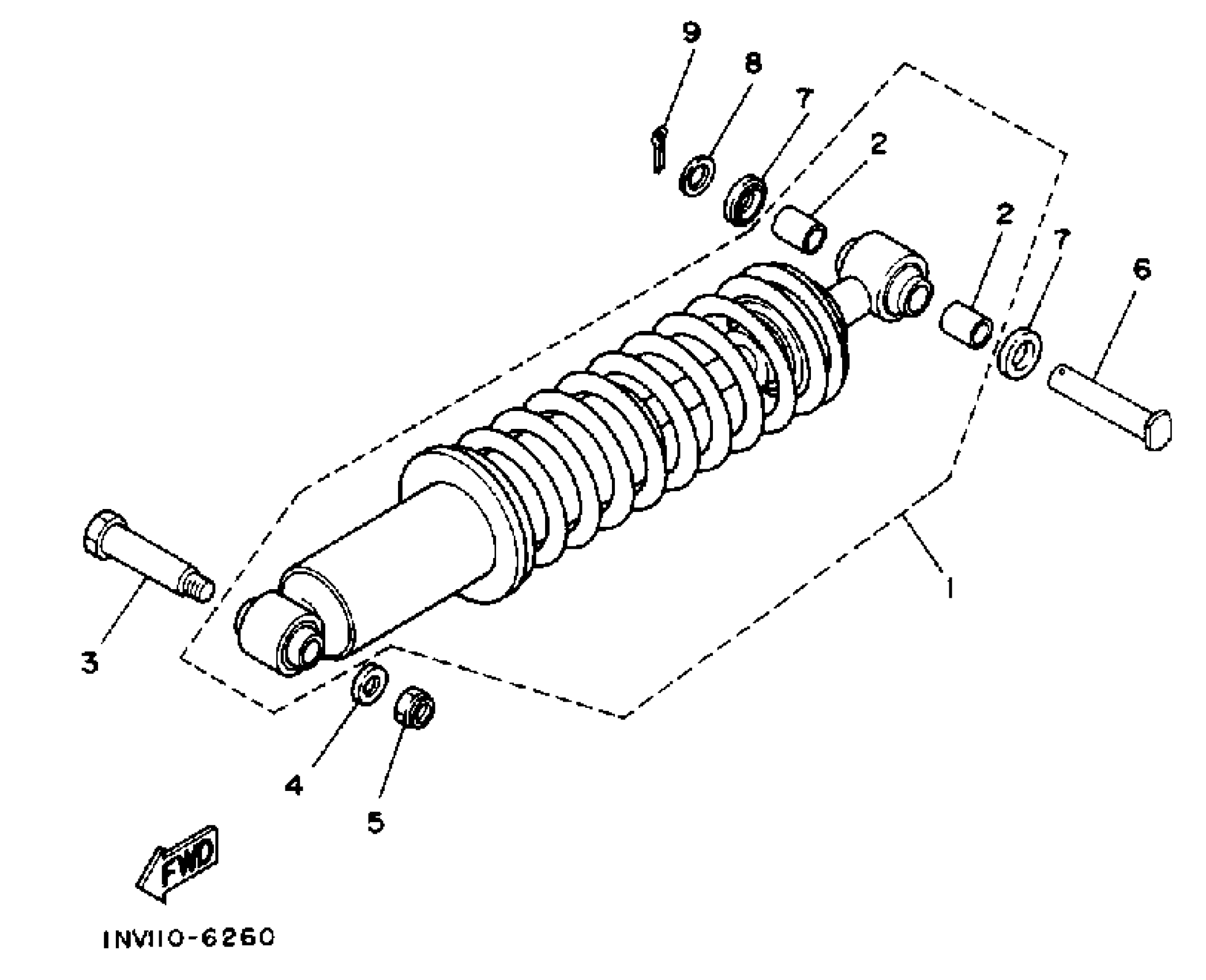

Find the part on the Rear Shocks diagram for your 1986 Yamaha YTM225DRS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Yamaha YTM225DRS Rear Shocks Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHOCK ASSEMBLY

1NU-22210-00-6W

1
Out of stock

1

SHK/ABS ASSEMBLY, REAR

(1NV-22210-00-26)

1
Out of stock

2

BUSH, SOLID (1M1)

90380-12051-00

1
Out of stock

3

BOLT

90109-10736-00

1
Out of stock

4

WASHER, PLATE (26H)

90201-102G9-00

1

$6.38

In stock

5

NUT, U

95617-10100-00

1
Out of stock

6

PIN, CLEVIS (10V)

90240-12092-00

1

$7.63

In stock

7

COVER, THRUST

1W1-22128-00-00

1

$17.09

In stock

8

WASHER, PLATE(663)

92990-12600-00

1

$6.68

In stock

9

PIN, COTTER

91490-30030-00

1

$7.15

In stock
