1986 Yamaha YTM225DRS Front Fork Diagram

← All diagrams

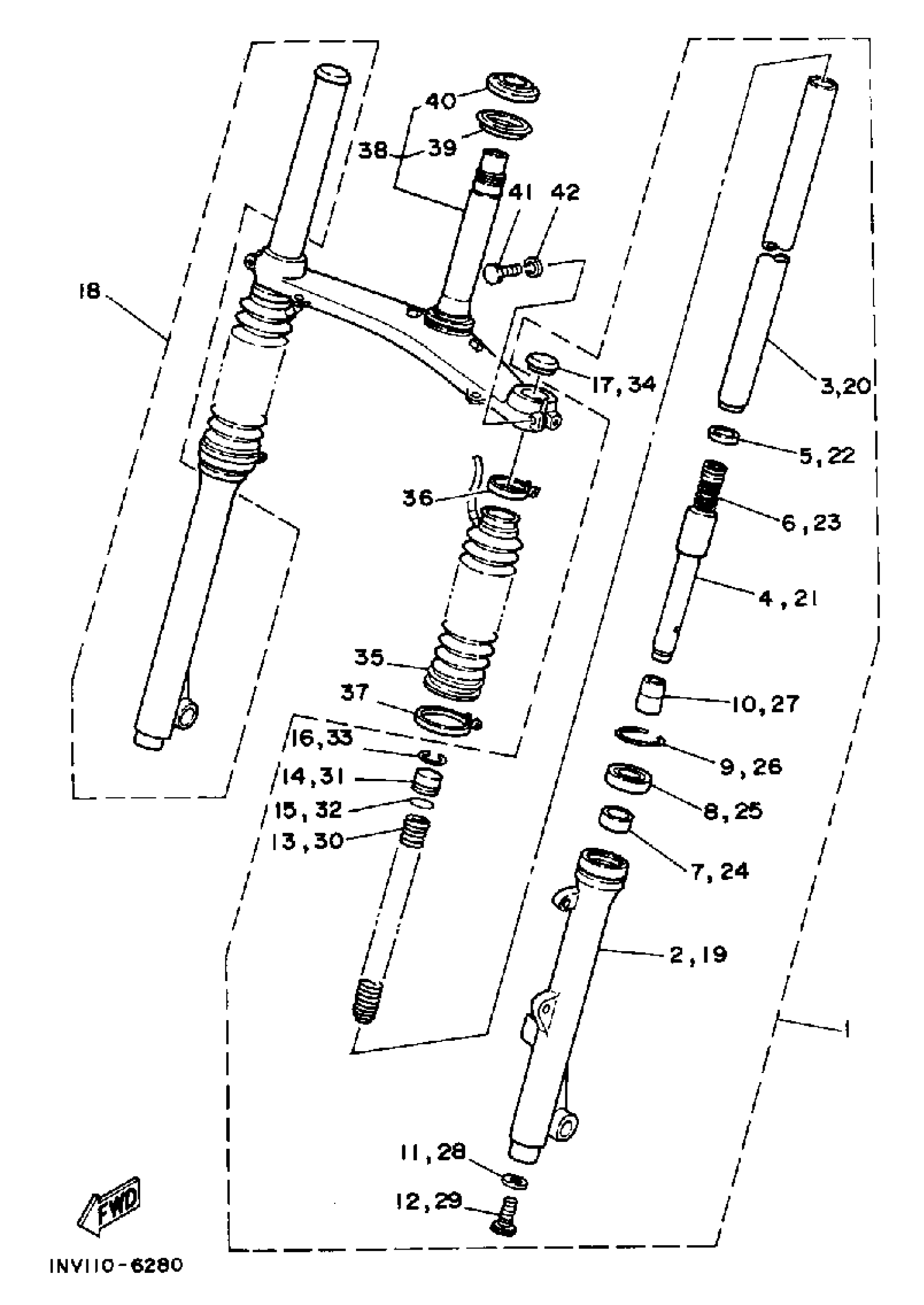

Find the part on the Front Fork diagram for your 1986 Yamaha YTM225DRS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Yamaha YTM225DRS Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY L

(1NV-W2313-00-8L)

1
Out of stock

2

. TUBE, OUTER 1

1NV-23126-00-8L

1
Out of stock

3

. INNER TUBE 1COMP 1

1NV-23110-00-00

1
Out of stock

4

. PISTON, FRONT FORK

1NV-23171-00-00

1
Out of stock

5

RING, PISTON FRTFRK

(1NV-23157-00-00)

1
Out of stock

6

SPRING, REBOUND

(1NV-23151-00-00)

1
Out of stock

7

METAL, SLIDE 1

1GU-23125-00-00

—

$7.52

In stock

8

OIL SEAL(1GL)

93110-33023-00

—

$13.80

In stock

9

CIRCLIP, INNER

(93450-46113-00)

1
Out of stock

10

. SPINDLE, TAPER

1GU-23173-00-00

1
Out of stock

11

. GASKET

90430-08143-00

1

$2.90

In stock

12

BOLT,SOCKET

91314-08025-00

1

$6.17

In stock

13

. SPRING, FRONT FORK

1NV-23141-00-00

1
Out of stock

14

. BOLT, CAP

1GU-23111-00-00

1
Out of stock

15

. O-RING

93210-23587-00

1

$6.62

In stock

16

CIRCLIP, INNER

(93450-31114-00)

1
Out of stock

17

. PLUG, INNER TUBE

1GU-23154-00-00

1
Out of stock

18

FRONT FORK ASSEMBLY R

(1NV-W2314-00-8L)

1
Out of stock

19

TUBE, OUTER 2

(1NV-23136-00-8L)

1
Out of stock

20

. INNER TUBE 1COMP 1

1NV-23110-00-00

1
Out of stock

21

. PISTON, FRONT FORK

1NV-23171-00-00

1
Out of stock

22

RING, PISTON FRTFRK

(1NV-23157-00-00)

1
Out of stock

23

SPRING, REBOUND

(1NV-23151-00-00)

1
Out of stock

24

METAL, SLIDE 1

1GU-23125-00-00

—

$7.52

In stock

25

OIL SEAL(1GL)

93110-33023-00

—

$13.80

In stock

26

CIRCLIP, INNER

(93450-46113-00)

1
Out of stock

27

. SPINDLE, TAPER

1GU-23173-00-00

1
Out of stock

28

. GASKET

90430-08143-00

1

$2.90

In stock

29

BOLT,SOCKET

91314-08025-00

1

$6.17

In stock

30

. SPRING, FRONT FORK

1NV-23141-00-00

1
Out of stock

31

. BOLT, CAP

1GU-23111-00-00

1
Out of stock

32

. O-RING

93210-23587-00

1

$6.62

In stock

33

CIRCLIP, INNER

(93450-31114-00)

1
Out of stock

34

. PLUG, INNER TUBE

1GU-23154-00-00

1
Out of stock

35

BOOT

1NV-2312A-20-00

1
Out of stock

35

BOOT

1NV-2312A-30-00

1
Out of stock

36

CLAMP, HOSE (1NV)

(90460-37282-00)

1
Out of stock

37

HOSE CLAMP ASSY

90450-53008-00

—
Out of stock

38

UNDER BRACKETCOMP

1NV-23340-10-00

1
Out of stock

39

SEAL, DUST

164-23462-00-00

—

$6.42

In stock

40

RACE, BALL 1

B6E-23411-00-00

—

$7.02

In stock

41

BOLT(N02)

97070-10035-00

—

$11.38

In stock

42

YBS67-10 WASHER, SPRING

92990-10100-00

—

$2.43

In stock
