1986 Yamaha YTM225DRS Rear Wheel Diagram

← All diagrams

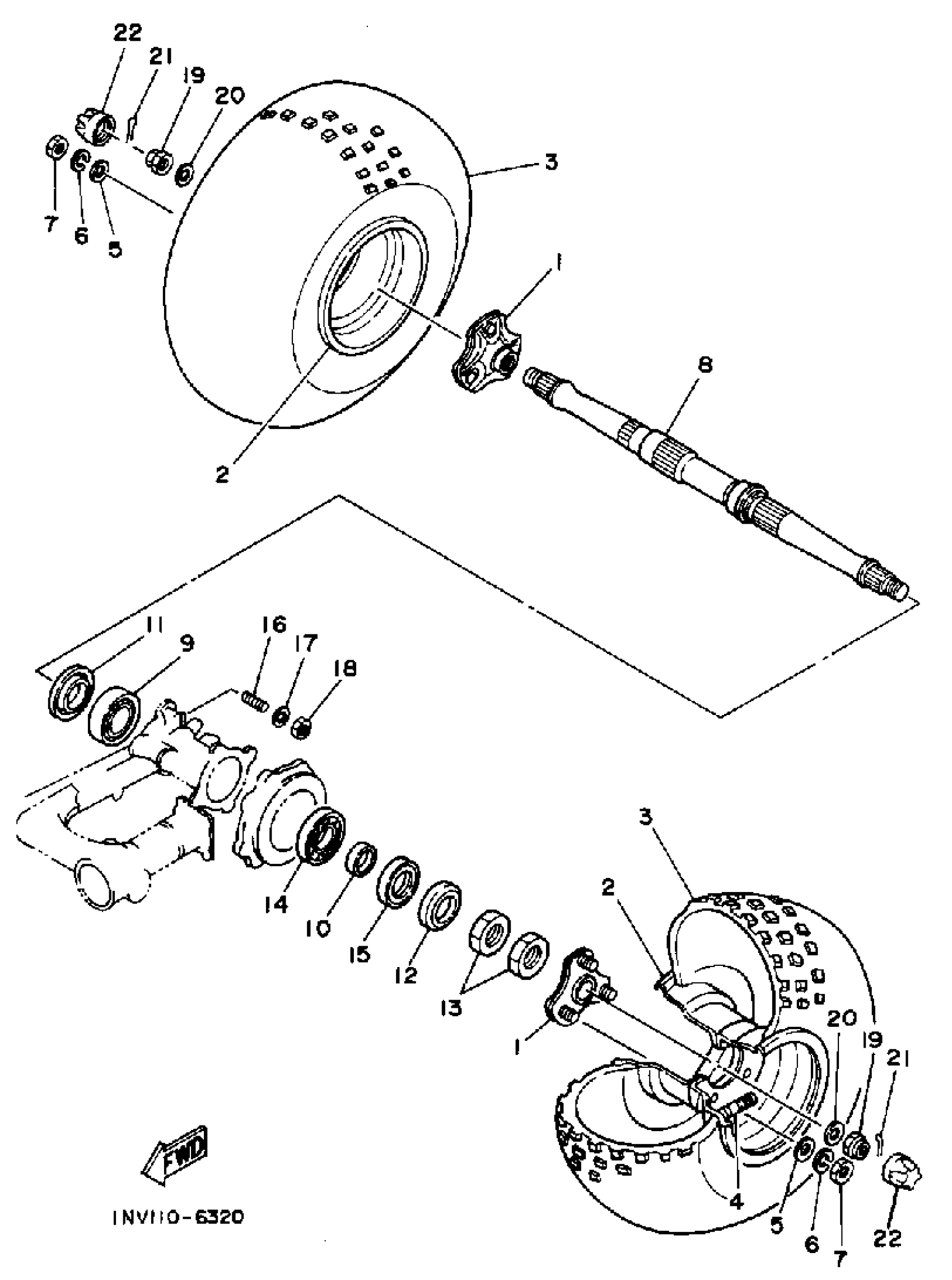

Find the part on the Rear Wheel diagram for your 1986 Yamaha YTM225DRS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Yamaha YTM225DRS Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COLLAR, WHEEL

1NV-25383-00-00

1
Out of stock

2

WHEEL, REAR

29U-25390-00-8L

1
Out of stock

3

22X11-8 KT755 DUN.

94111-083H6-00

1
Out of stock

4

VALVE, RIM(2GH)

93900-00030-00

1

$14.46

In stock

5

1

$3.00

In stock

6

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

7

NUT(3BM)

95314-10600-00

1

$1.74

In stock

8

AXLE, WHEEL

1NU-25381-01-00

1
Out of stock

9

BEARING (24W)

93399-99913-00

—
Out of stock

10

COLLAR, AXLE

24W-25386-00-00

1
Out of stock

11

COVER, HUB DUST

24W-25367-00-00

1
Out of stock

12

COVER, HUB DUST

21V-25367-00-00

1
Out of stock

13

NUT, SPECL SHAPE

90179-40419-00

1
Out of stock

14

BEARING

93306-00804-00

1
Out of stock

15

OIL SEAL (21V)

93102-46274-00

—

$20.62

In stock

16

BOLT, STUD (537 HUB)

90116-10221-00

—

$4.08

In stock

17

WASHER, PLATE (29U)

90201-104G0-00

—
Out of stock

18

NUT(3BM)

95314-10600-00

1

$1.74

In stock

19

NUT, CASTLE (29U)

90171-14037-00

—

$9.00

In stock

20

WASHER, PLATE

90201-144K1-00

1
Out of stock

21

PIN, COTTER

91490-30030-00

—

$7.15

In stock

22

CAP, WHEEL

52H-2512A-00-00

—

$19.86

In stock
