1986 Yamaha YTM225DRS Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1986 Yamaha YTM225DRS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

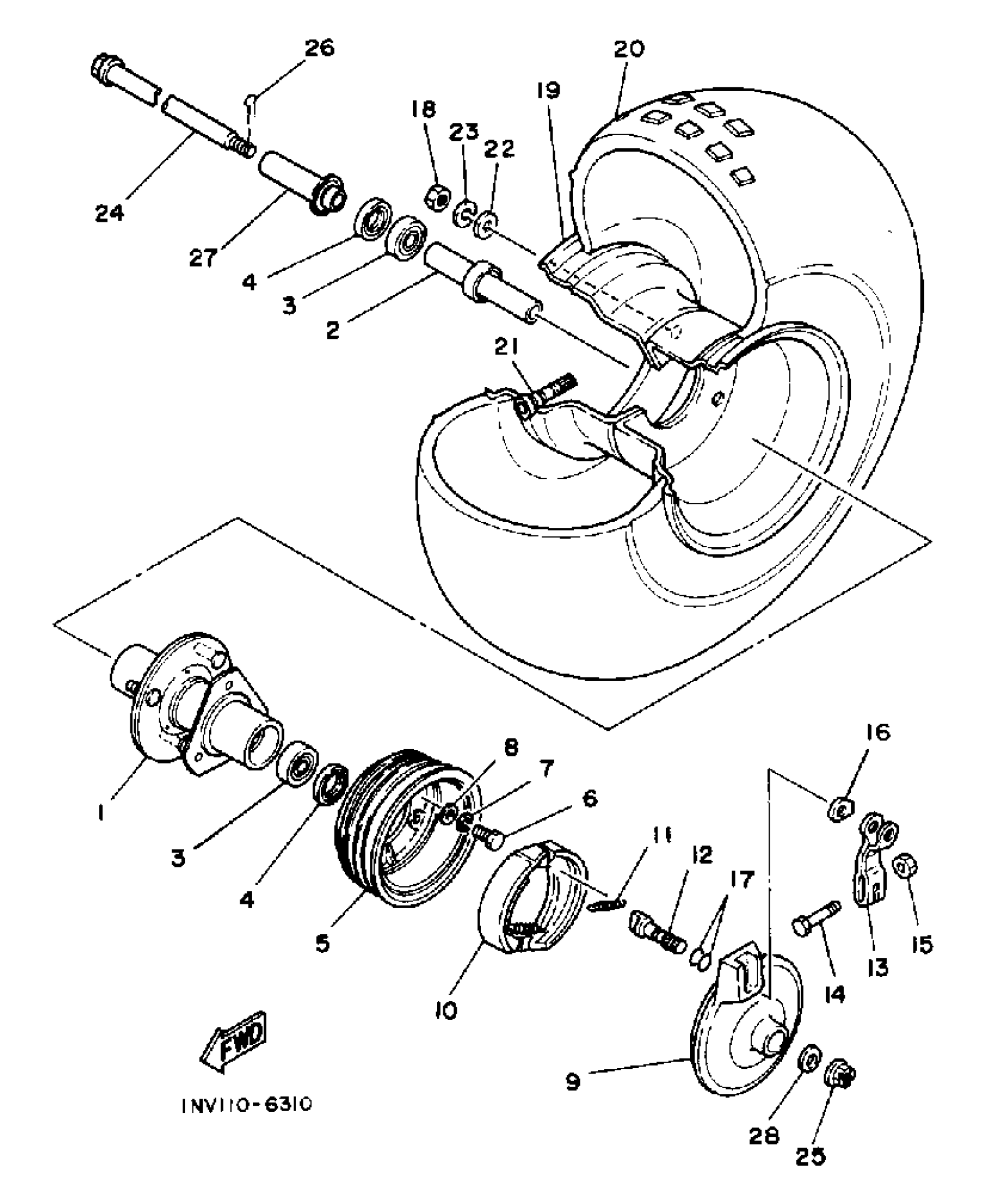

1986 Yamaha YTM225DRS Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

29U-25111-00-00

1
Out of stock

2

SPACER, BEARING

29U-25117-00-00

1
Out of stock

3

1

$31.64

In stock

4

OIL SEAL (5V6)

93102-23252-00

1

$12.17

In stock

5

DRUM, BRAKE

5V7-2511E-00-35

—

$219.32

In stock

6

BOLT, HEXAGON

97013-08020-00

1

$1.54

In stock

7

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

8

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

9

PLATE, BRAKE SHOE

21V-25121-00-8L

1
Out of stock

10

BRAKE SHOE KIT

4BE-W253E-00-00

1

$22.27

In stock

11

SPRING, TENSION

90506-15260-00

1

$5.75

In stock

12

CAMSHAFT

4GL-25351-00-00

1

$62.50

In stock

13

LEVER, CAMSHAFT 1

21V-25155-00-00

1
Out of stock

14

BOLT, HEXAGON (538)

90101-06278-00

1

$1.82

In stock

15

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

16

PLATE, INDICATOR

5V7-2513A-00-00

1
Out of stock

17

O-RING (26H)

93210-14579-00

—

$5.69

In stock

18

NUT(3BM)

95314-10600-00

—

$1.74

In stock

19

WHEEL, FRONT

29U-25180-00-8L

1
Out of stock

20

22X11-8 KT755 DUN.

94111-083H6-00

1
Out of stock

21

VALVE, RIM(2GH)

93900-00030-00

—

$14.46

In stock

22

—

$3.00

In stock

23

YBS67-10 WASHER, SPRING

92990-10100-00

—

$2.43

In stock

24

AXLE, WHEEL

29U-25181-00-00

1
Out of stock

25

NUT, CASTLE(2UJ)

90171-14056-00

—

$10.57

In stock

26

PIN, COTTER

91490-30030-00

—

$7.15

In stock

27

COLLAR, WHEEL

21V-25183-00-00

1
Out of stock

28

WASHER, PLATE (3Y2)

90201-15785-00

—
Out of stock
