1982 Yamaha XT550 (XT550J) Rear Suspension Diagram

← All diagrams

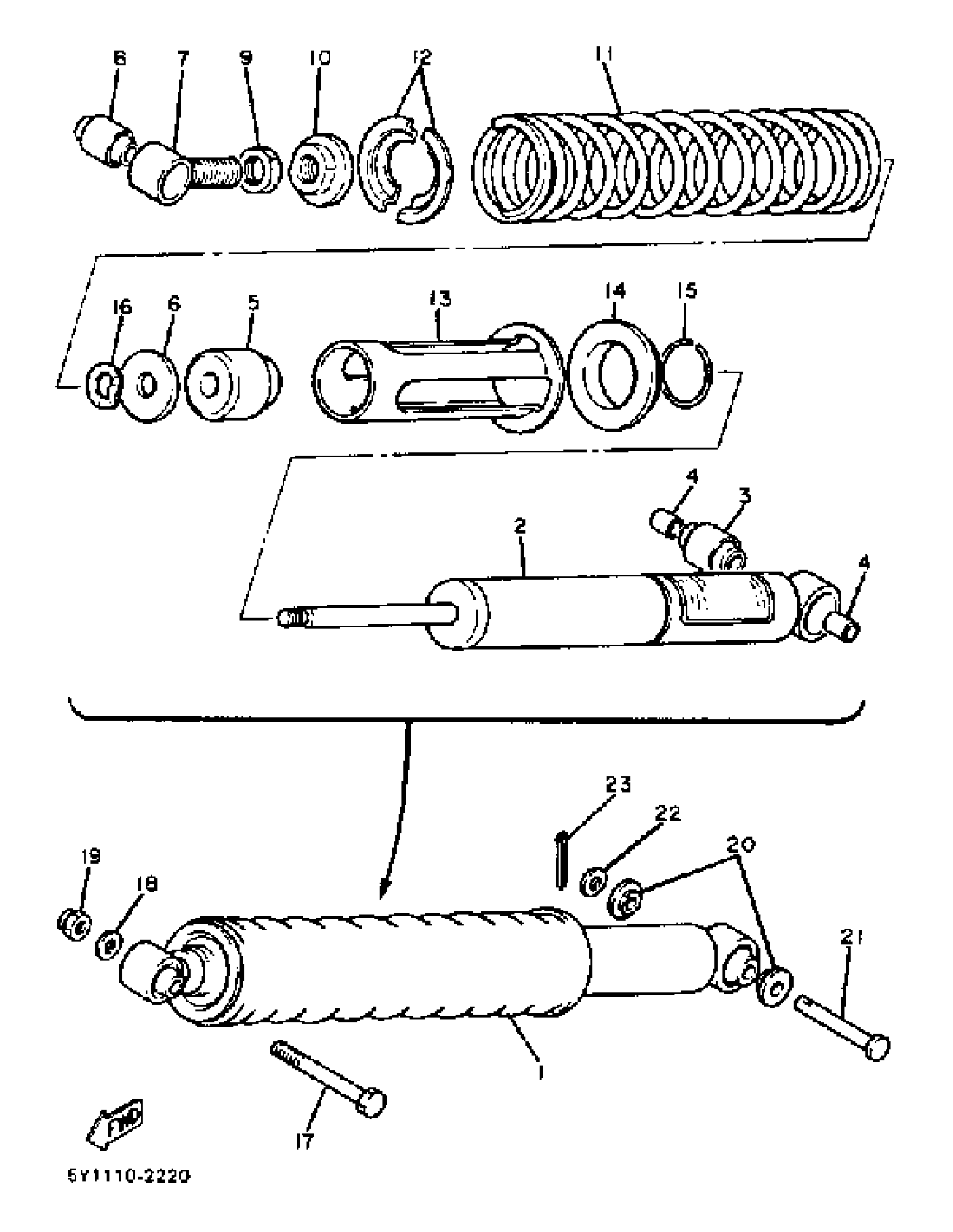

Find the part on the Rear Suspension diagram for your 1982 Yamaha XT550 (XT550J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Yamaha XT550 (XT550J) Rear Suspension Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHK/ABS ASSEMBLY, REAR

5Y1-22210-00-00

1
Out of stock

2

. DAMPER SUB-ASSEMBLY

5Y1-22401-00-00

1
Out of stock

3

BUSH, REAR SHOCK ABSORBER

3R4-22226-00-00

—
Out of stock

4

BUSH, SOLID (1M1)

90380-12051-00

1
Out of stock

5

BUMP, STOP

(1W1-22493-00-00)

1
Out of stock

6

. SUPPORT, BUMP STOP

3R4-22228-00-00

1
Out of stock

7

. UPPER BRKT SUB ASSEMBLY

5Y1-22409-00-00

1
Out of stock

8

BUSH, REAR SHOCK ABSORBER

1YW-22216-00-00

—

$40.54

In stock

9

NUT, HEXAGON (8F3)

90170-20211-00

1

$3.74

In stock

10

. SEAT, SPRING UPPER

3R4-22213-00-00

1
Out of stock

11

. SPRING

5Y1-22212-00-00

1
Out of stock

12

GUIDE, SPRING 1

3P6-22214-10-00

1
Out of stock

13

GUIDE, SPRING 2

(3Y1-22224-00-00)

1
Out of stock

14

SEAT, SPRING LOWER

(3Y1-22223-00-00)

1
Out of stock

15

. CIRCLIP, OUTER

93440-48079-00

1
Out of stock

16

. WASHER, WAVE

90206-14067-00

1
Out of stock

17

BOLT (1M1)

90109-10453-00

—

$15.92

In stock

18

WASHER, PLATE (26H)

90201-102G9-00

—

$6.38

In stock

19

NUT, U

95617-10100-00

—
Out of stock

20

COVER, THRUST

1W1-22128-00-00

—

$17.09

In stock

21

PIN, CLEVIS (3Y2)

90240-12075-00

—

$8.32

In stock

22

WASHER, PLATE(663)

92990-12600-00

—

$6.68

In stock

23

PIN, COTTER

91490-30030-00

—

$7.15

In stock
