1982 Yamaha XT550 (XT550J) Handlebar Cable Diagram

← All diagrams

Find the part on the Handlebar Cable diagram for your 1982 Yamaha XT550 (XT550J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

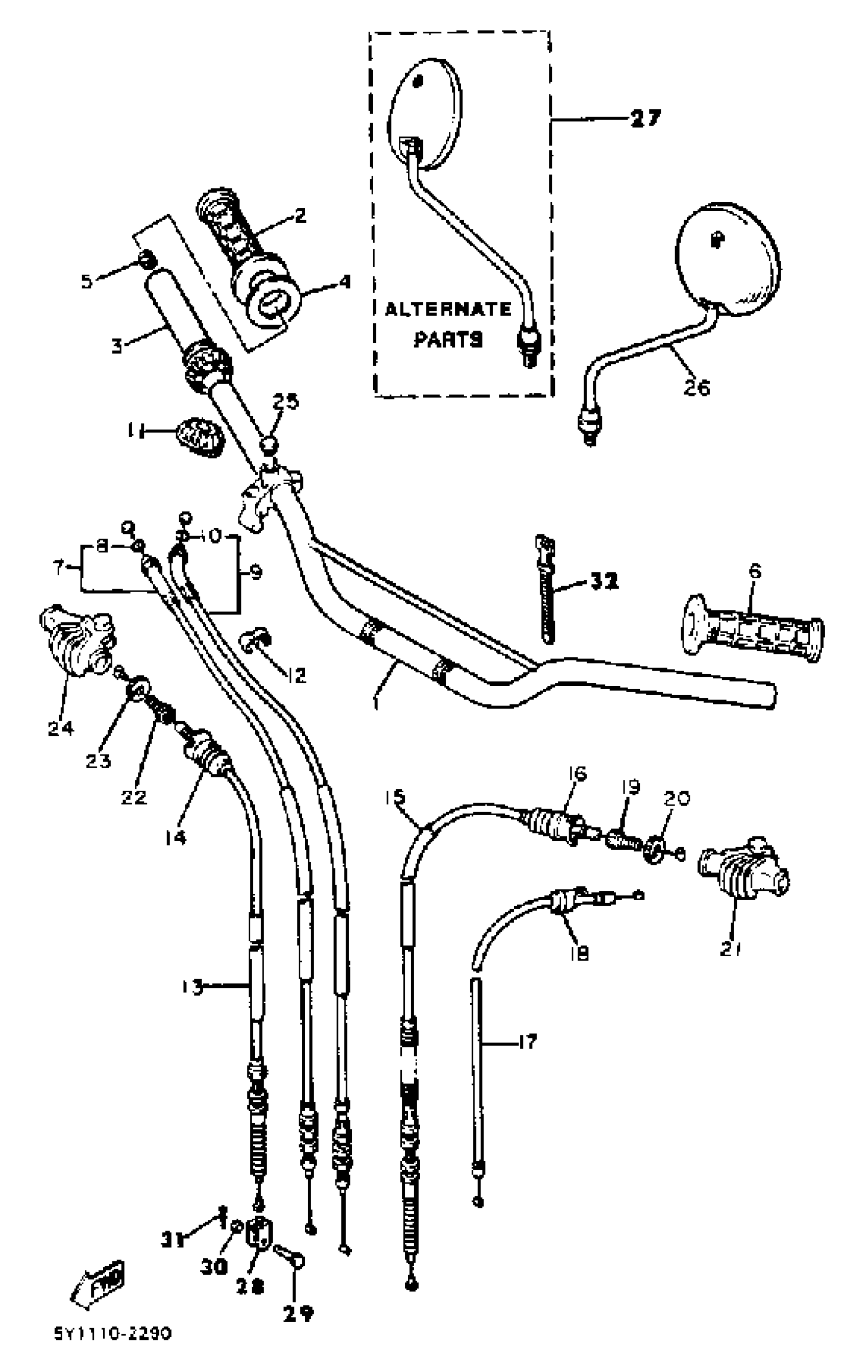

1982 Yamaha XT550 (XT550J) Handlebar Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

5Y1-26111-01-00

1
Out of stock

2

GRIP (R.H)

1LX-26242-01-00

1

$29.77

In stock

3

TUBE, THRTL GUIDE

5Y1-26243-00-00

1
Out of stock

4

RING, LEAF

4V4-26249-00-00

1
Out of stock

5

PLUG(2GU)

90338-12192-00

1

$6.18

In stock

6

GRIP (L.H)

1LX-26241-01-00

1

$28.30

In stock

7

CABLE, THROTTLE 1

5Y1-26311-01-00

1
Out of stock

8

. O-RING

93210-08408-00

1
Out of stock

9

CABLE, THROTTLE 2

5Y1-26312-01-00

1
Out of stock

10

. O-RING

93210-08408-00

1
Out of stock

11

GEAR, BEVEL

5Y1-2628E-00-00

1
Out of stock

12

CLIP, WIRE 2072639100

90468-15009-00

—
Out of stock

13

CABLE, BRAKE

5Y1-26341-01-00

1
Out of stock

14

BOOT, WIRE

1E6-26342-00-00

1

$26.82

In stock

15

WIRE, CLUTCH

55U-26335-01-00

1

$58.78

In stock

16

BOOT, WIRE

1E6-26342-00-00

1

$26.82

In stock

17

CABLE, STARTER 1

5Y1-26331-00-00

1
Out of stock

18

BOOT

5Y1-26339-00-00

—
Out of stock

19

BOLT

90123-08002-00

—

$8.93

In stock

20

NUT

90179-08030-00

—

$3.78

In stock

21

COVER, LEVER

1E6-26372-00-00

—

$19.91

In stock

22

BOLT

90123-08002-00

—

$8.93

In stock

23

NUT

90179-08030-00

—

$3.78

In stock

24

COVER, LEVER

1E6-26372-00-00

—

$19.91

In stock

25

PLUG (341-26329-00)

90338-09012-00

—

$7.26

In stock

26

MIRROR ASSY., 2

5Y1-26290-11-00

—
Out of stock

27

—

$45.60

In stock

28

JOINT, WIRE

156-26347-00-00

—

$7.51

In stock

29

PIN W/HOLE 307181180000

90240-08013-00

—

$5.10

In stock

30

WASHER, PLATE 1562722600

90201-08083-00

—
Out of stock

31

PIN, COTTER

91490-20025-00

—

$1.31

In stock

32

BAND, SWITCH CORD

437-83936-01-00

—

$4.63

In stock
