1982 Yamaha XT550 (XT550J) Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1982 Yamaha XT550 (XT550J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

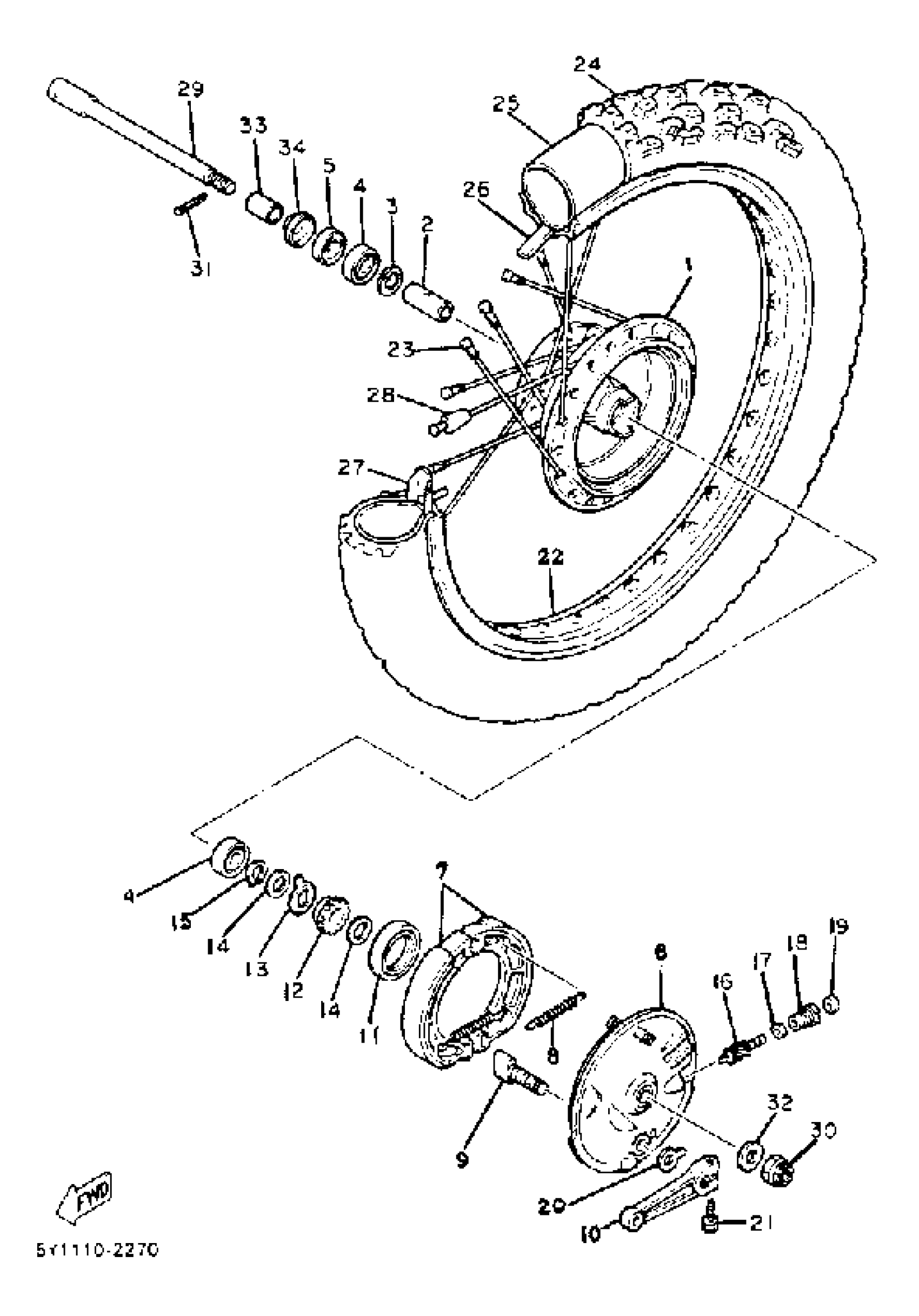

1982 Yamaha XT550 (XT550J) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

(5Y1-25111-00-98)

1
Out of stock

2

SPACER(1EE)

90560-15293-00

—
Out of stock

3

FLANGE, SPACER

146-25116-00-00

1
Out of stock

4

BEARING

93306-20205-00

1

$32.63

In stock

5

OIL SEAL (20X35X7-136)

93102-20009-00

1

$9.10

In stock

6

PLATE, BRAKE SHOE

5Y1-25121-00-98

1
Out of stock

7

BRAKE SHOE KIT

3GW-W253A-00-00

1
Out of stock

8

1

$8.09

In stock

9

CAMSHAFT

5Y1-25151-00-00

1
Out of stock

10

LEVER, CAMSHAFT 1

5Y1-25155-00-00

1
Out of stock

11

SEAL,OIL

93105-47007-00

1
Out of stock

12

GEAR, DRIVE

308-25135-00-00

1
Out of stock

13

CLUTCH, METER

214-25149-01-00

1

$6.68

In stock

14

WASHER PLATE 214251470000

90201-22283-00

1

$5.38

In stock

15

CIRCLIP(1EY)

99009-22400-00

1

$6.17

In stock

16

GEAR, METER

308-25138-00-00

1
Out of stock

17

WASHER, PLATE 1832514600

90201-07076-00

—

$5.75

In stock

18

BUSHING

109-25136-00-00

—

$8.78

In stock

19

OIL SEAL (7X14X4-136)

93104-07003-00

—

$7.29

In stock

20

PLATE, INDICATOR

5Y1-2513A-00-00

—
Out of stock

21

BOLT, HEXAGON (462)

90101-06291-00

—

$6.68

In stock

22

RIM 1.60X21

94416-21326-00

1
Out of stock

23

SPOKE SET, FRONT

5Y1-25104-00-00

1
Out of stock

24

300-21 TW25 (TT)

94130-211N0-00

1
Out of stock

25

TUBE, FRONT (2A6)

94227-21123-00

—

$43.59

In stock

26

BAND, RIM (2A6)

94330-21084-00

—

$13.89

In stock

27

SPACER, BEAD

4V5-25194-00-00

1
Out of stock

28

BALANCER, WHEEL

3HT-25398-00-00

—

$6.89

In stock

29

AXLE, WHEEL

4H7-25181-01-00

1
Out of stock

30

NUT, CASTLE(2UJ)

90171-14056-00

—

$10.57

In stock

31

PIN, COTTER

91490-30030-00

—

$7.15

In stock

32

WASHER, PLATE (3Y2)

90201-15785-00

—
Out of stock

33

COLLAR

90387-15720-00

1
Out of stock

34

COVER, HUB DUST

322-25118-00-00

—

$16.17

In stock
