1982 Yamaha XT550 (XT550J) Rear ARM Diagram

← All diagrams

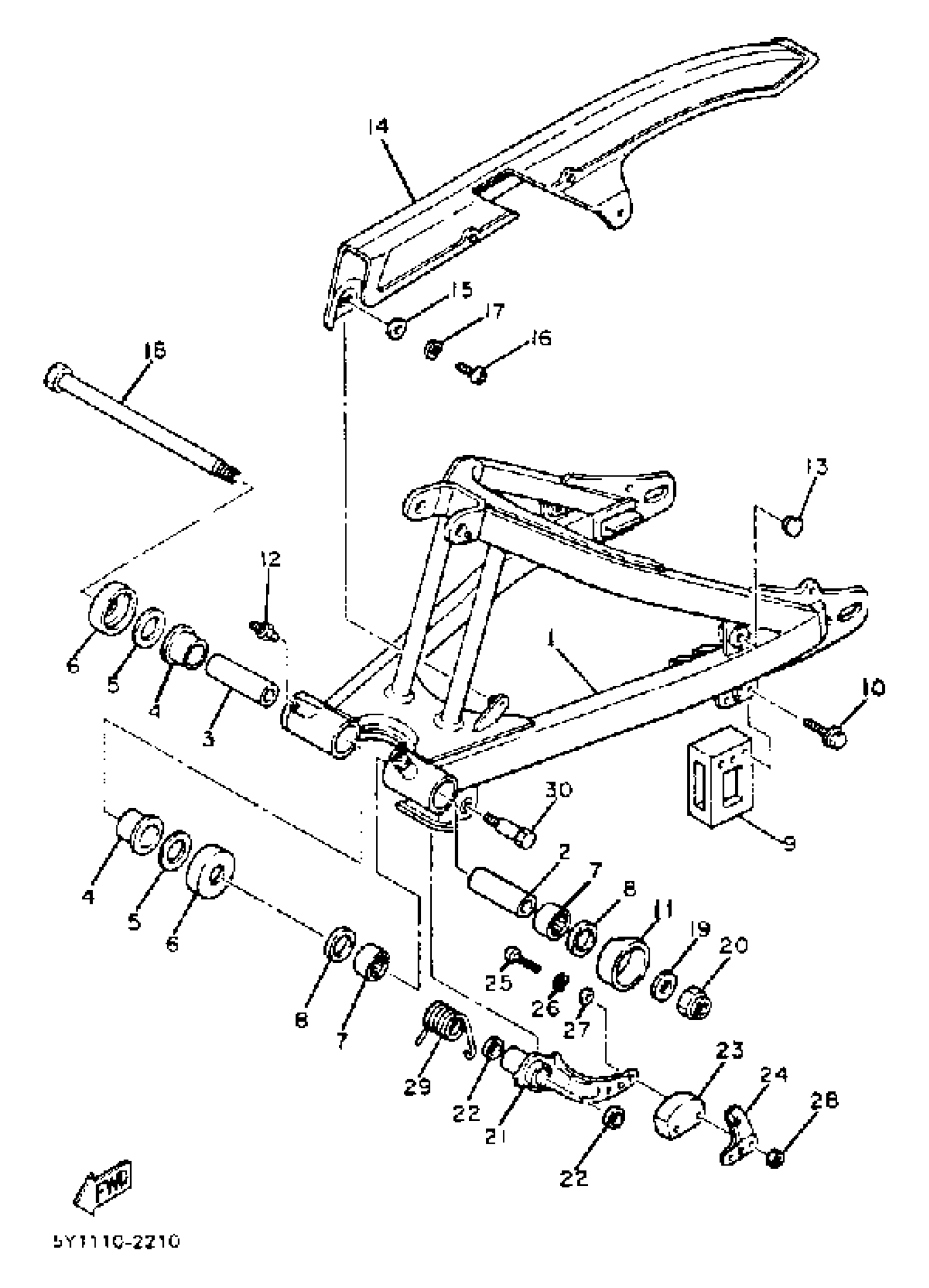

Find the part on the Rear ARM diagram for your 1982 Yamaha XT550 (XT550J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Yamaha XT550 (XT550J) Rear ARM Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REAR ARM

5Y1-22110-01-35

1
Out of stock

2

BUSH 1

5Y1-22123-00-00

1
Out of stock

3

BUSH 2

5Y1-22124-00-00

1
Out of stock

4

BUSH, SPEC''L NYLON

90386-24107-00

1
Out of stock

5

WASHER, PLATE (5Y1)

90201-251F6-00

1
Out of stock

6

COVER, THRUST 2

4X7-22129-00-00

1
Out of stock

7

BEARING, CYLINDER.#17

93317-42424-00

1
Out of stock

8

OIL SEAL, SDO-TYPE

93109-24030-00

1
Out of stock

9

GUARD, CHAIN

10V-22153-00-00

1
Out of stock

10

BOLT, FLANGE

95817-06050-00

1
Out of stock

11

SEAL, GUARD (5Y1-22151-00)

5Y1-22151-09-00

1
Out of stock

12

NIPPLE, GREASE

93700-06M03-00

1

$7.15

In stock

13

PLUG (3Y1)

90338-11111-00

—

$2.20

In stock

14

CASE, CHAIN

5Y1-22311-01-00

1
Out of stock

15

WASHER, PLATE (4L0)

90201-062A8-00

1

$6.23

In stock

16

SCREW, PAN HEAD(3TJ)

98507-06016-00

—

$2.43

In stock

17

WASHER, SPRING

92907-06100-00

—
Out of stock

18

SHAFT, PIVOT

5X6-22141-01-00

—
Out of stock

19

958-58204-00 WASHER,PLAIN

92990-16200-00

—
Out of stock

20

NUT, SELF-LOCKING

90185-16103-00

1
Out of stock

21

TENSIONER 1

5Y1-2217J-00-00

1
Out of stock

22

OIL SEAL (2K8)

93109-14021-00

—

$10.60

In stock

23

TENSIONER (2N0-22178-00-00)

ACC-11130-00-25

1
Out of stock

24

GUIDE, CHAIN

1W1-22187-00-00

—
Out of stock

25

SCREW, PAN

98507-05040-00

—

$6.68

In stock

26

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

27

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock

28

NUT, HEXAGON (663)

95380-05600-00

—

$6.17

In stock

29

SPRING, TORSION (1J4)

90508-35350-00

—
Out of stock

30

BOLT (1J4)

90109-10483-00

—

$8.28

In stock
