1981 Yamaha XT500 (XT500H) CDI Magneto Diagram

← All diagrams

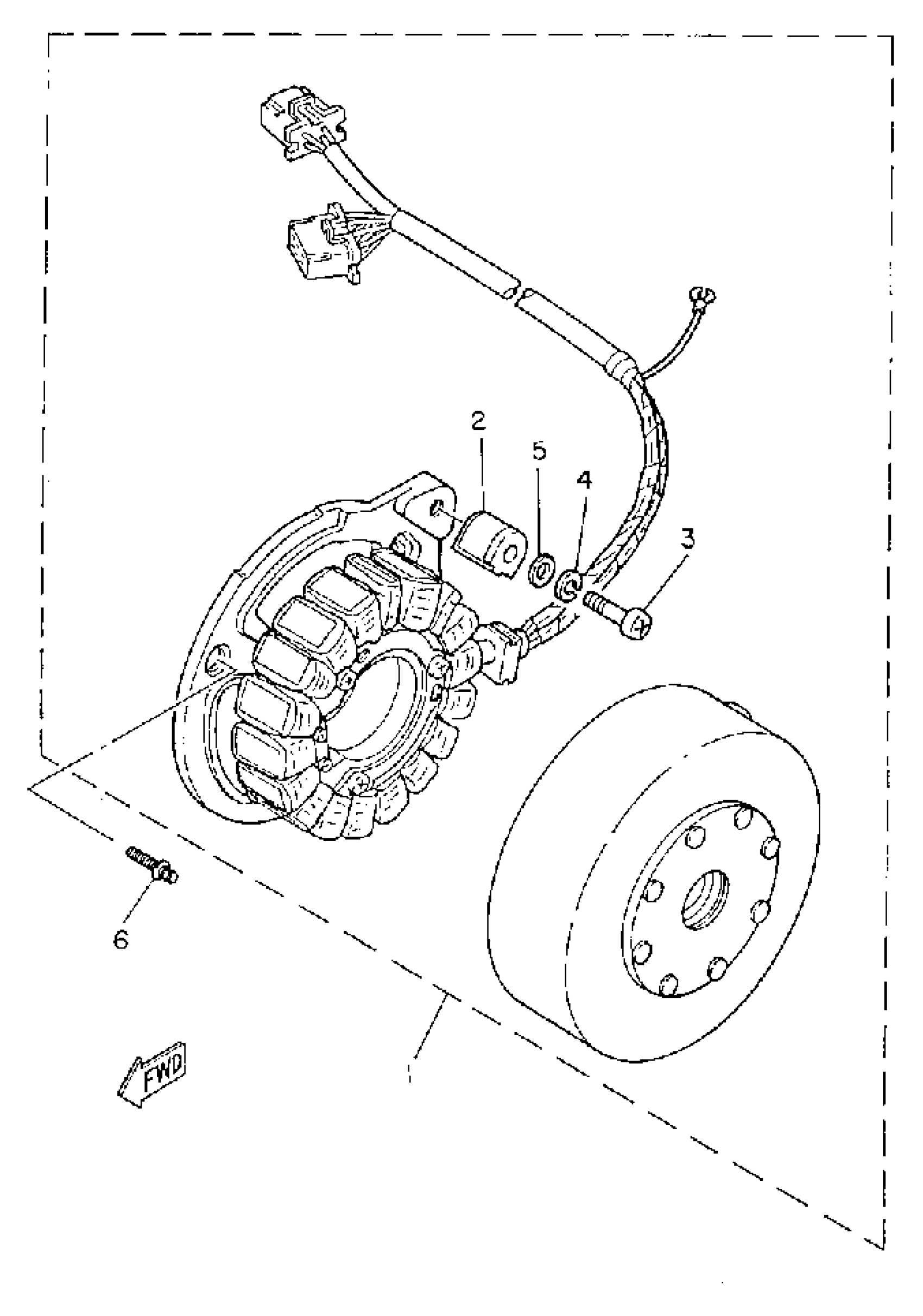

Find the part on the CDI Magneto diagram for your 1981 Yamaha XT500 (XT500H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha XT500 (XT500H) CDI Magneto Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CDI MAGNETO ASSEMBLY (3H6-85500-50)

4R9-85500-50-00

1
Out of stock

2

. COIL, PULSER

2J2-81416-50-00

1
Out of stock

3

SCREW, PAN HEAD (686)

98580-05035-00

1

$9.22

In stock

4

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

5

WASHER, PLAIN (646)

92990-05600-00

1
Out of stock

6

UNAVAILABLE IN PRICE BOOK

3J3-81674-00-

1
Out of stock
