1981 Yamaha XT500 (XT500H) Electrical 2 Diagram

← All diagrams

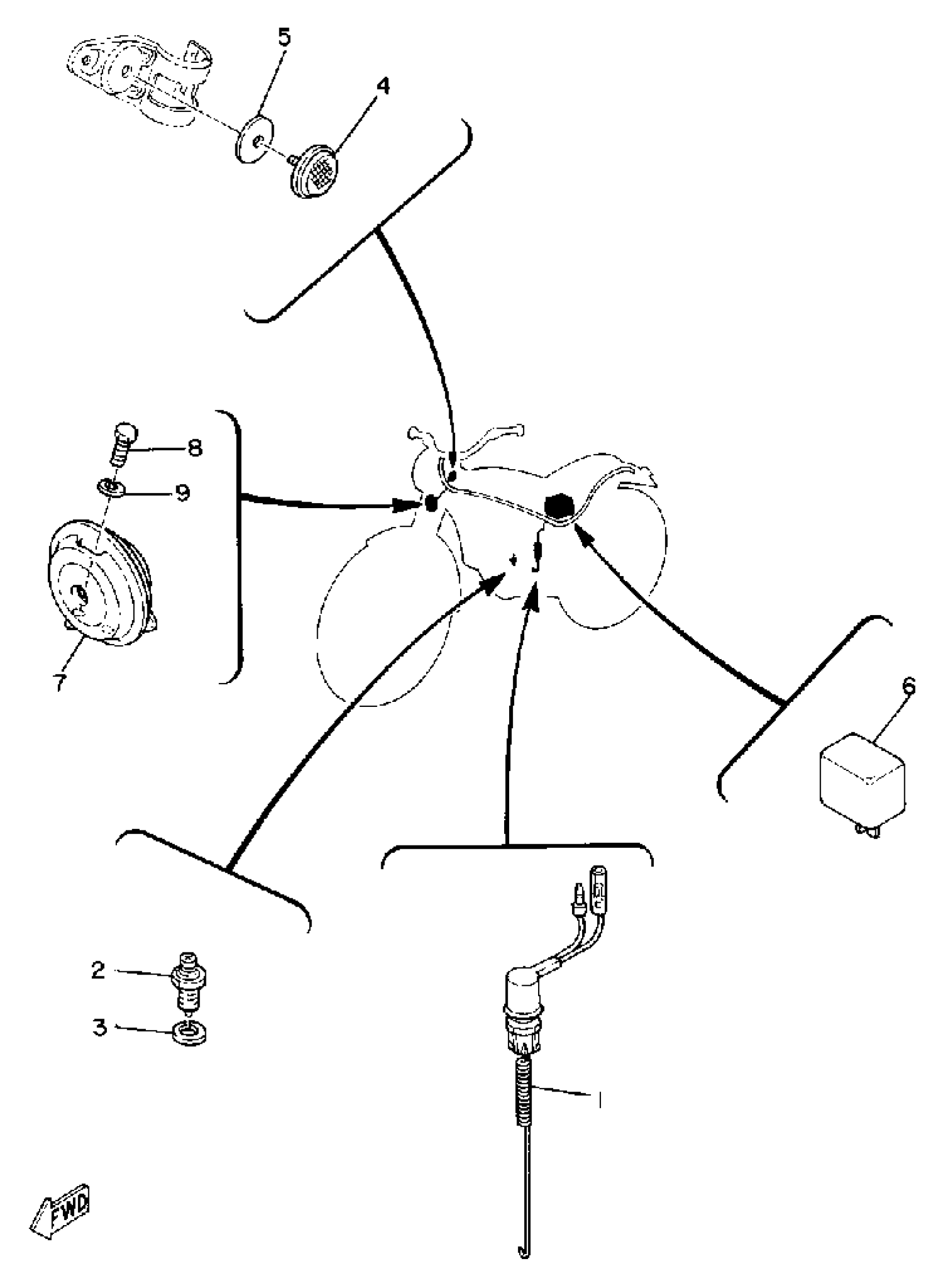

Find the part on the Electrical 2 diagram for your 1981 Yamaha XT500 (XT500H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha XT500 (XT500H) Electrical 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STOP SWITCH ASSY

1T2-82530-03-00

1
Out of stock

2

NEUTRAL SWITCH ASSY

4GY-82540-10-00

1
Out of stock

3

GASKET (5R6)

90430-10171-00

1

$3.17

In stock

4

REFLECTOR, FRONT 1

355-85111-01-00

1
Out of stock

5

WASHER, PLATE(3AJ)

90202-05191-00

1

$6.01

In stock

6

FLASHER RELAY ASSY

3BK-83350-00-00

—
Out of stock

7

HORN (25G-83371-00)

3H7-83371-00-00

1
Out of stock

8

BOLT(62E)

97013-08012-00

—

$2.48

In stock

9

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock
