1981 Yamaha XT500 (XT500H) Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 1981 Yamaha XT500 (XT500H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

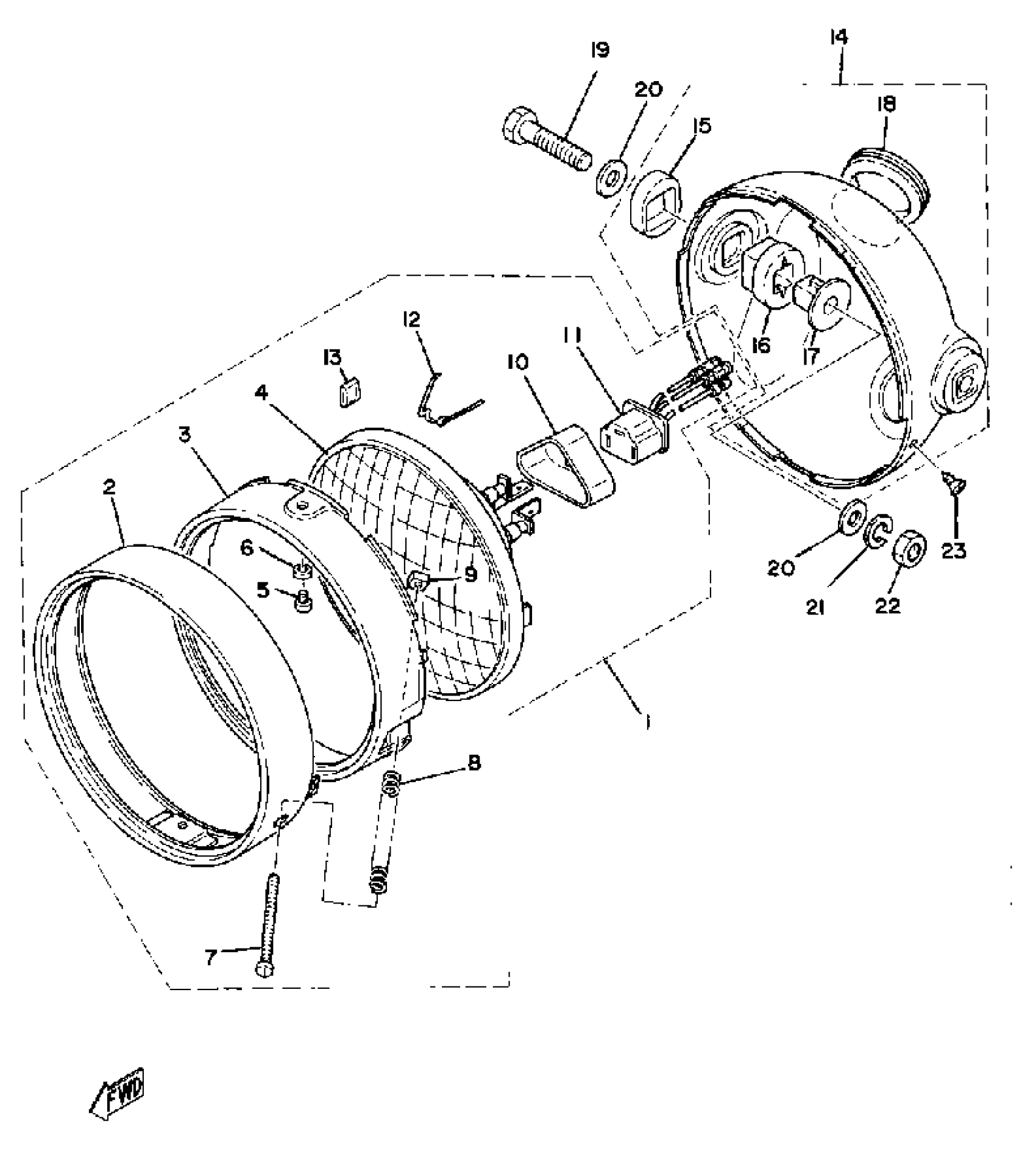

1981 Yamaha XT500 (XT500H) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

UNAVAILABLE IN PRICE BOOK

2H0-84110-60-00

1
Out of stock

2

. RIM, HEADLIGHT

498-84115-60-00

1
Out of stock

3

. RING, RETAINING

498-84195-60-00

1
Out of stock

4

. LENS ASSEMBLY

2A6-84120-60-00

1
Out of stock

5

. SCREW

438-84194-60-00

1
Out of stock

6

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

7

. SCREW, RIM ADJUSTING

447-84331-61-00

1
Out of stock

8

SPRING, COMPRESSION (ITALY)

447-84332-60-00

1

$9.22

In stock

9

NUT, ADJUST

198-84334-60-00

1

$6.43

In stock

10

. COVER, SOCKET

341-84397-61-00

1
Out of stock

11

SOCKET

371-84312-60-00

—

$26.52

In stock

12

SPRING, REFLECTOR SET

1M1-84124-60-00

1

$7.51

In stock

13

. SPACER

498-84128-60-00

1
Out of stock

14

BODY ASSEMBLY, HEADLIGHT

(1E6-84130-60-33)

1
Out of stock

15

DAMPER, HEAD LAMP B

498-84164-60-00

1

$5.93

In stock

16

DAMPER, HEAD LAMP A

498-84163-60-00

—

$5.68

In stock

17

COLLAR, BODY FITTING

498-84145-60-00

—

$6.52

In stock

18

GROMMET, WIREHARNESS

214-84153-60-00

—
Out of stock

19

BOLT

97014-08040-00

—

$5.26

In stock

20

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

21

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

22

NUT(6L2)

95333-08600-00

—

$3.20

In stock

23

SCREW, OVAL HEAD (1A0)

90152-05005-00

—

$2.82

In stock
