1993 Yamaha XT350 CA (XT350EC) Valve Diagram

← All diagrams

Find the part on the Valve diagram for your 1993 Yamaha XT350 CA (XT350EC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

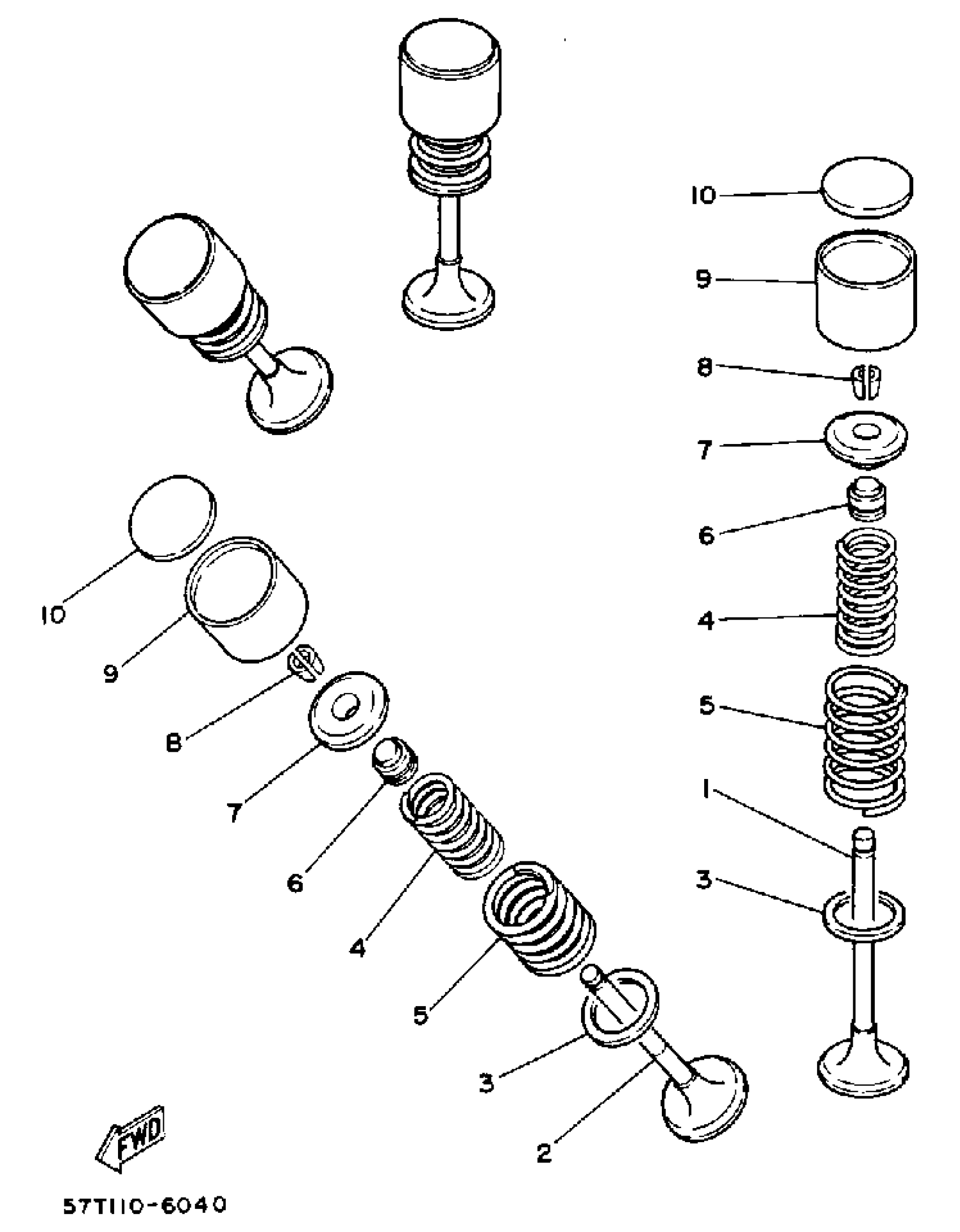

1993 Yamaha XT350 CA (XT350EC) Valve Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

VALVE, INTAKE

51Y-12111-01-00

—
Out of stock

2

VALVE, EXHAUST

30X-12121-00-00

1
Out of stock

3

. SEAT, VALVE SPRING

1LN-12116-00-00

1
Out of stock

4

SPRING, VALVE INNER

30X-12113-00-00

1
Out of stock

5

SPRING, VALVE OUTER

30X-12114-00-00

1
Out of stock

6

SEAL, VALVE STEM

51Y-12119-00-00

1

$4.08

In stock

7

RETAINER, VALVE SPRING

30X-12117-00-00

—
Out of stock

8

COTTER, VALVE

30X-12118-00-00

1
Out of stock

9

LIFTER, VALVE

26H-12153-01-00

1
Out of stock

10

PAD, ADJUSTING

26H-12168-00-00

1
Out of stock

10

PAD, ADJUSTING

26H-12168-20-00

1
Out of stock

10

PAD, ADJUSTING

26H-12168-40-00

1
Out of stock

10

PAD, ADJUSTING

26H-12168-60-00

1
Out of stock

10

PAD, ADJUSTING

26H-12168-80-00

1
Out of stock

10

PAD, ADJUSTING

26H-12168-A0-00

—
Out of stock

10

PAD, ADJUSTING

26H-12168-F0-00

—
Out of stock

10

PAD, ADJUSTING

26H-12168-H0-00

—
Out of stock

10

PAD, ADJUSTING

26H-12168-K0-00

—
Out of stock

10

PAD, ADJUSTING

26H-12168-M0-00

—
Out of stock

10

PAD, ADJUSTING

26H-12168-R0-00

—
Out of stock

10

PAD, ADJUSTING

26H-12168-U0-00

—
Out of stock

10

PAD, ADJUSTING

26H-12168-W0-00

—
Out of stock

10

PAD, ADJUSTING

26H-12168-Y0-00

—
Out of stock

10

PAD, ADJUSTING

26H-12169-10-00

—
Out of stock

10

PAD, ADJUSTING

26H-12169-30-00

—
Out of stock

10

PAD, ADJUSTING

26H-12169-50-00

—
Out of stock

10

PAD, ADJUSTING

26H-12169-70-00

—
Out of stock

10

PAD, ADJUSTING

26H-12169-90-00

—
Out of stock

10

PAD, ADJUSTING

26H-12169-E0-00

—
Out of stock

10

PAD, ADJUSTING

26H-12169-G0-00

—
Out of stock

10

PAD, ADJUSTING

26H-12169-J0-00

—
Out of stock

10

PAD, ADJUSTING (3.10)

26H-12169-L0-00

1
Out of stock

10

PAD, ADJUSTING

26H-12169-N0-00

—
Out of stock

10

PAD, ADJUSTING

26H-12169-T0-00

—
Out of stock
