1993 Yamaha XT350 CA (XT350EC) OIL Pump Diagram

← All diagrams

Find the part on the OIL Pump diagram for your 1993 Yamaha XT350 CA (XT350EC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

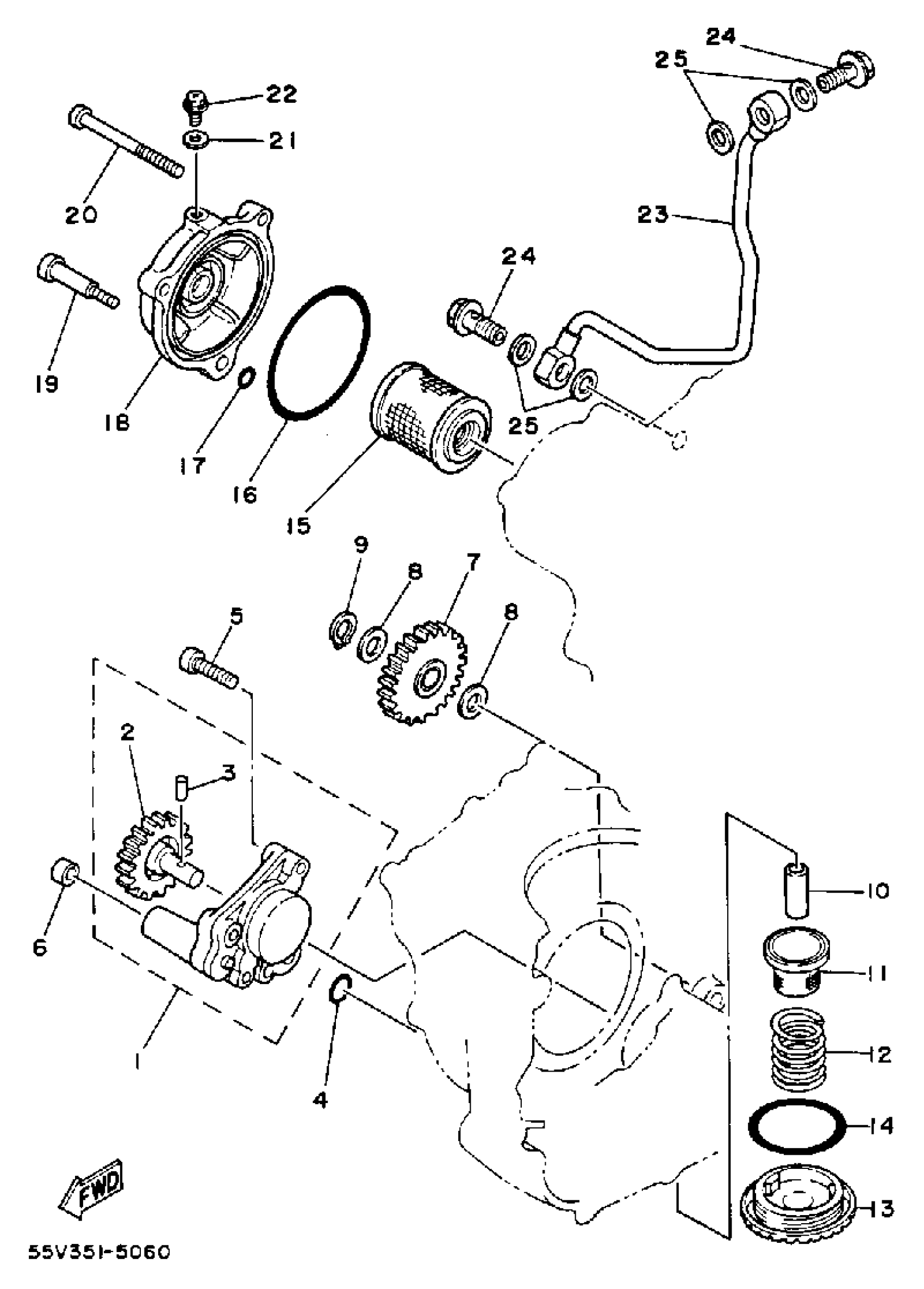

1993 Yamaha XT350 CA (XT350EC) OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

OIL PUMP ASSY

30X-13300-10-00

1
Out of stock

2

GEAR, PUMP DRIVEN 2

3Y6-13326-10-00

1

$9.89

In stock

3

PIN,DOWEL (137)

93603-12030-00

1

$1.88

In stock

4

O-RING (611)

93210-10096-00

1

$3.11

In stock

5

SCREW, PAN HEAD (76T)

98517-06025-00

1

$3.12

In stock

6

GASKET (3Y1)

90430-06156-00

1

$3.38

In stock

7

GEAR, OIL PUMP IDLE

30X-13341-00-00

1
Out of stock

8

WASHER, PLAIN(735)

90201-10119-00

—
Out of stock

9

CIRCLIP(10W)

99009-10400-00

1

$3.91

In stock

10

PIPE, OIL 1

2XK-13416-00-00

1

$6.62

In stock

11

STRAINER, OIL

51Y-13411-00-00

1

$31.03

In stock

12

SPRING, COMPRESSION (3Y1)

90501-18576-00

1

$6.17

In stock

13

PLUG, DRAIN

4HC-15351-00-00

1

$16.28

In stock

14

O-RING

93210-347A1-00

1

$5.72

In stock

15

OIL CLEANER ASSY

5H0-13440-09-00

1
Out of stock

16

O-RING (583 OIL CLEANER)

93210-64297-00

—
Out of stock

17

O-RING (583 OIL DRAIN BOLT)

93210-07135-00

—
Out of stock

18

COVER, OIL ELEMENT

3DC-13447-00-00

1
Out of stock

19

BOLT (583 OIL DRAIN)

90109-06419-00

—

$6.17

In stock

20

BOLT, SOCKET

91317-06065-00

—
Out of stock

21

GASKET

90430-05126-00

1
Out of stock

22

SCREW (583)

90149-05110-00

—

$6.88

In stock

23

PIPE, DELIVERY 1

55V-13161-01-00

1
Out of stock

24

BOLT, UNION(3GM)

90401-10159-00

—

$8.85

In stock

25

GASKET (5R6)

90430-10171-00

—

$3.17

In stock
