1993 Yamaha XT350 CA (XT350EC) Camshaft-Chain Diagram

← All diagrams

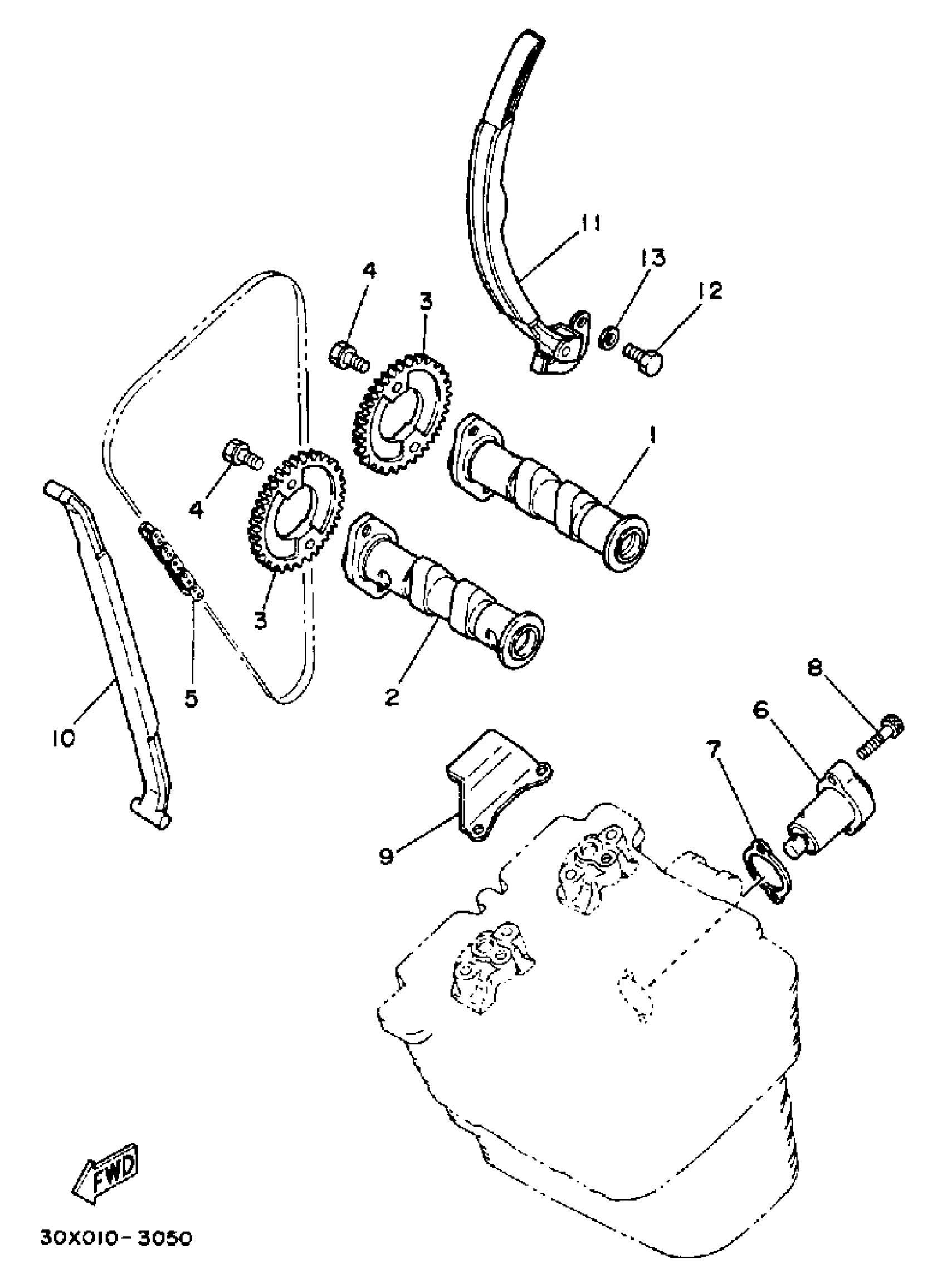

Find the part on the Camshaft-Chain diagram for your 1993 Yamaha XT350 CA (XT350EC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Yamaha XT350 CA (XT350EC) Camshaft-Chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CAMSHAFT 1

48Y-12171-00-00

1
Out of stock

2

CAMSHAFT 2

48Y-12181-00-00

1
Out of stock

3

SPROCKET, CAM CHAIN

30X-12176-00-00

1
Out of stock

4

BOLT, FLANGE

90105-07006-00

1

$6.26

In stock

5

CHAIN, DRIVE (79-010M-136L)

94590-91136-00

1
Out of stock

6

TENSIONER ASSY, CAM CHAIN

30X-12210-00-00

1
Out of stock

7

GASKET, TENSIONER CASE

4FM-12213-00-00

1

$7.57

In stock

8

BOLT,SOCKET

91317-06025-00

1

$2.05

In stock

9

GUIDE, STOPPER 2

30X-12241-00-00

1
Out of stock

10

DAMPER, CHAIN 1

30X-12251-00-00

1
Out of stock

11

DAMPER, CHAIN 2

30X-12252-01-00

1
Out of stock

12

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

13

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock
