1993 Yamaha XT350 CA (XT350EC) Crankcase Cover 1 Diagram

← All diagrams

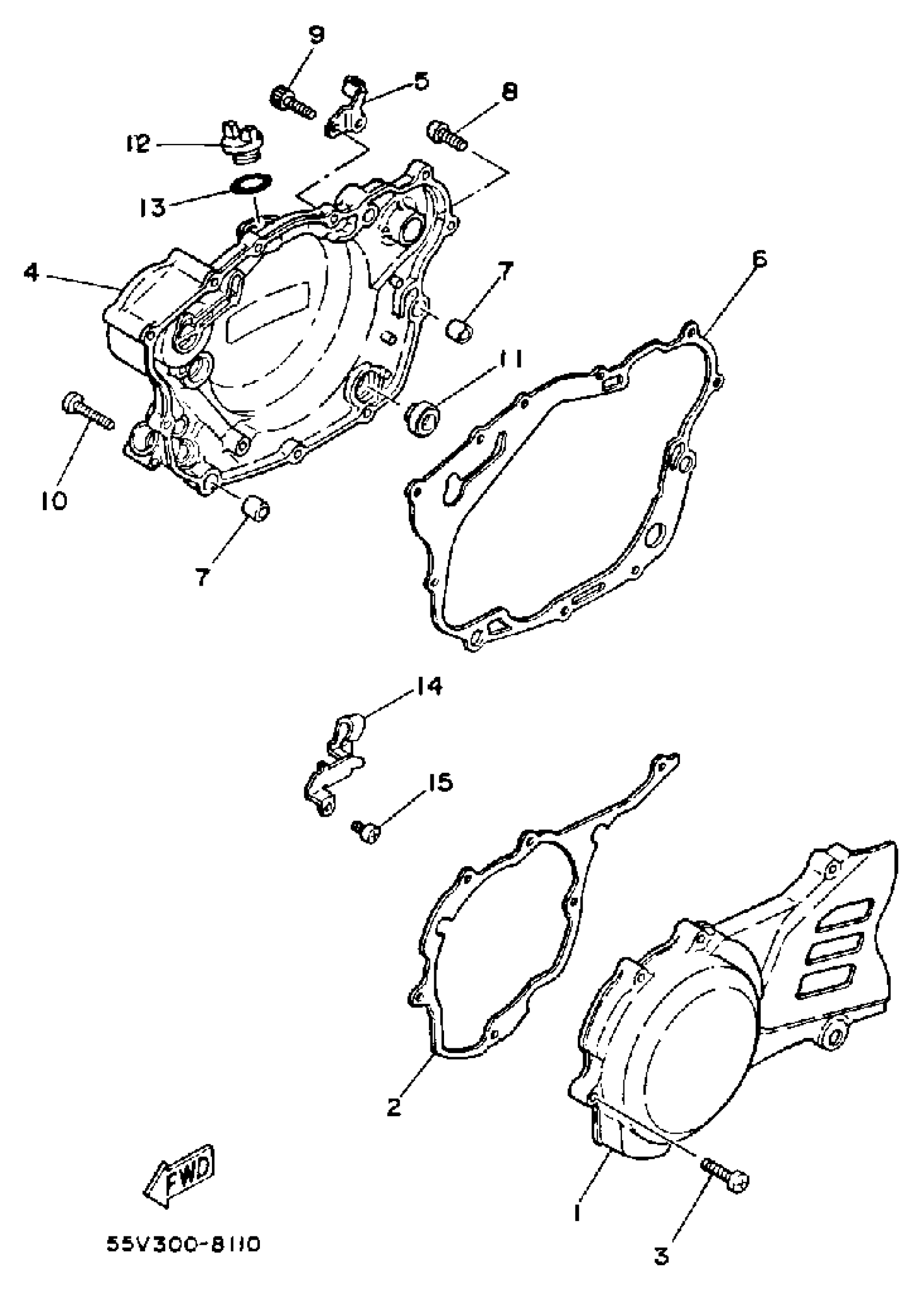

Find the part on the Crankcase Cover 1 diagram for your 1993 Yamaha XT350 CA (XT350EC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Yamaha XT350 CA (XT350EC) Crankcase Cover 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CRANKCASE 1

3DC-15411-00-00

1
Out of stock

2

GASKET, CRANKCASE COVER 1

4EL-15451-00-00

1
Out of stock

3

SCREW, PAN

98517-06030-00

1
Out of stock

4

COVER, CRANKCASE 2

3GJ-15421-00-00

1
Out of stock

5

HOLDER

30X-15378-00-00

1
Out of stock

6

GASKET, CRANKCASE COVER 2

4EL-15461-04-00

1
Out of stock

7

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

8

BOLT,SOCKET

91317-06025-00

1

$2.05

In stock

9

1

$3.82

In stock

10

BOLT,SOCKET

91317-06040-00

1

$3.45

In stock

11

GAUGE, LEVEL

3Y1-15361-00-00

1

$25.51

In stock

12

PLUG, OIL

3Y1-15363-10-00

1

$17.02

In stock

13

O-RING (646)

93210-19123-00

—

$6.91

In stock

14

CLAMP

90462-08062-00

1
Out of stock

15

SCREW, PAN

98517-06012-00

1

$3.14

In stock
