1993 Yamaha XT350 CA (XT350EC) Cylinder Head Diagram

← All diagrams

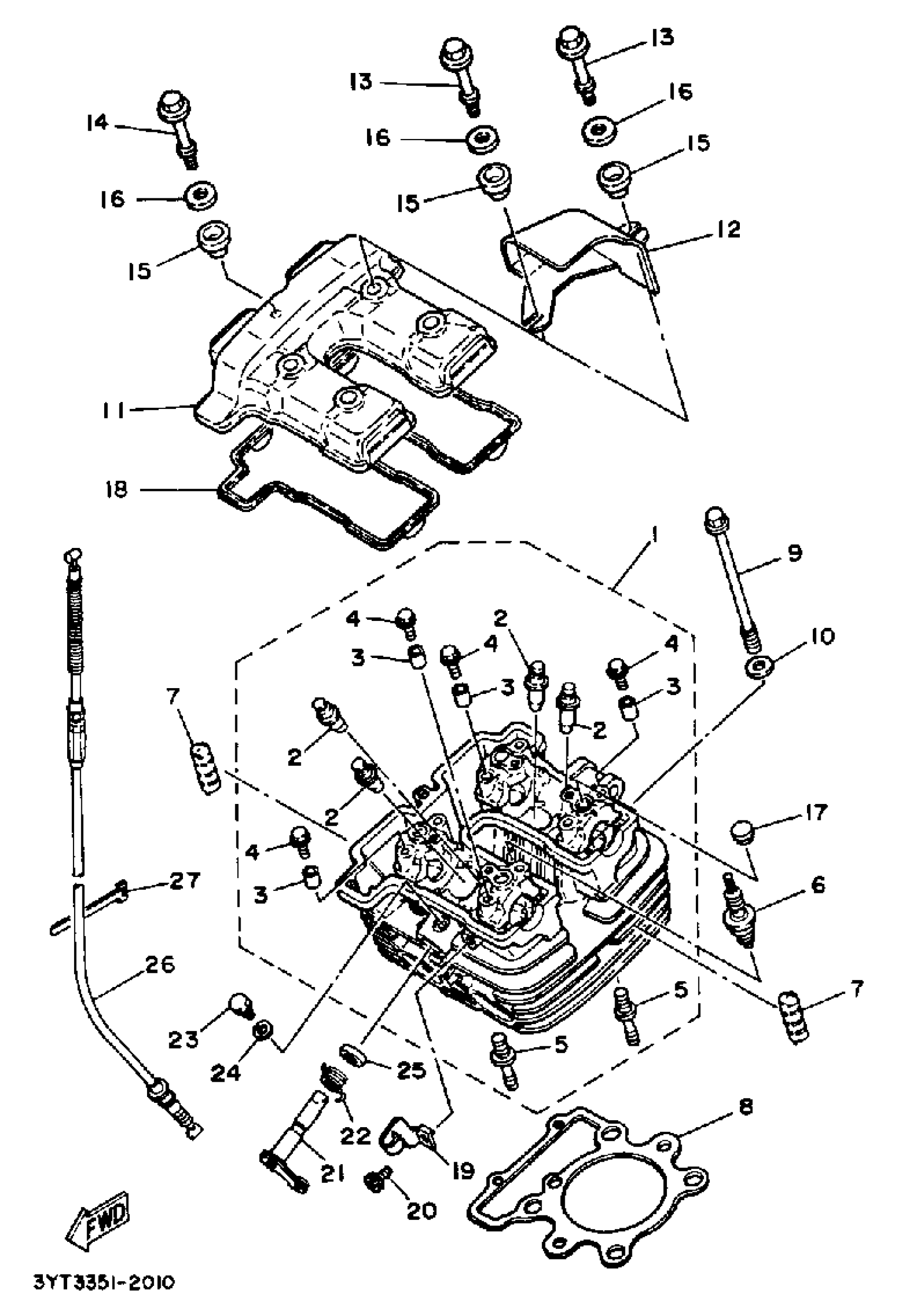

Find the part on the Cylinder Head diagram for your 1993 Yamaha XT350 CA (XT350EC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Yamaha XT350 CA (XT350EC) Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER HEAD ASSY

55V-11101-02-00

1
Out of stock

2

GUIDE KIT, INTAKE (55V)

99999-02242-00

1

$88.05

In stock

3

PIN, DOWEL(3XW)

91808-16023-00

1

$5.48

In stock

4

BOLT, WASHER BASED (4H7)

90105-06153-00

1
Out of stock

5

. BOLT, STUD

90116-10378-00

1
Out of stock

6

ND X24ES-U XJ550RH

(94701-00181-00)

1
Out of stock

6

D8EA NGK SPLUG 10PK

D8E-A0000-00-00

1

$3.92

In stock

7

ABSORBER 1

30X-11161-00-00

1
Out of stock

8

GASKET, CYLINDER HEAD 1

55V-11181-00-00

1
Out of stock

9

BOLT, FLANGE

90105-10608-00

1
Out of stock

10

WASHER, PLATE (26H)

90201-102G9-00

1

$6.38

In stock

11

COVER, CYLINDER HEAD 1

30X-11191-01-00

1
Out of stock

12

COVER, CYLINDER HEAD 2

30X-11192-01-00

1
Out of stock

13

BOLT(3TJ)

90109-064F0-00

—
Out of stock

14

BOLT

90109-06584-00

1
Out of stock

15

RUBBER, MOUNT 1

2GH-1111G-00-00

—
Out of stock

16

WASHER(46X)

90209-11262-00

—
Out of stock

17

PLUG (11H)

90338-11125-00

—

$6.71

In stock

18

GASKET, HEAD COVER 1

30X-11193-01-00

—
Out of stock

19

BRACKET, DECOMPRESSION

30X-12283-00-00

1
Out of stock

20

BOLT,SOCKET

91317-06012-00

—

$6.17

In stock

21

CAM, DECOMPRESSION

30X-12288-00-00

1
Out of stock

22

SPRING, TORSION

90508-18606-00

1
Out of stock

23

BOLT (583 TACHOMETER)

90109-06418-00

—
Out of stock

24

GASKET 256113960000

90430-06014-00

—

$7.23

In stock

25

SEAL, OIL (30X)

93102-12321-00

—

$10.14

In stock

26

CABLE, DECOMPRESSION

30X-12292-00-00

—
Out of stock

27

BAND, SWITCH CORD

437-83936-01-00

—

$4.63

In stock
