1993 Yamaha XT350 CA (XT350EC) Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 1993 Yamaha XT350 CA (XT350EC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

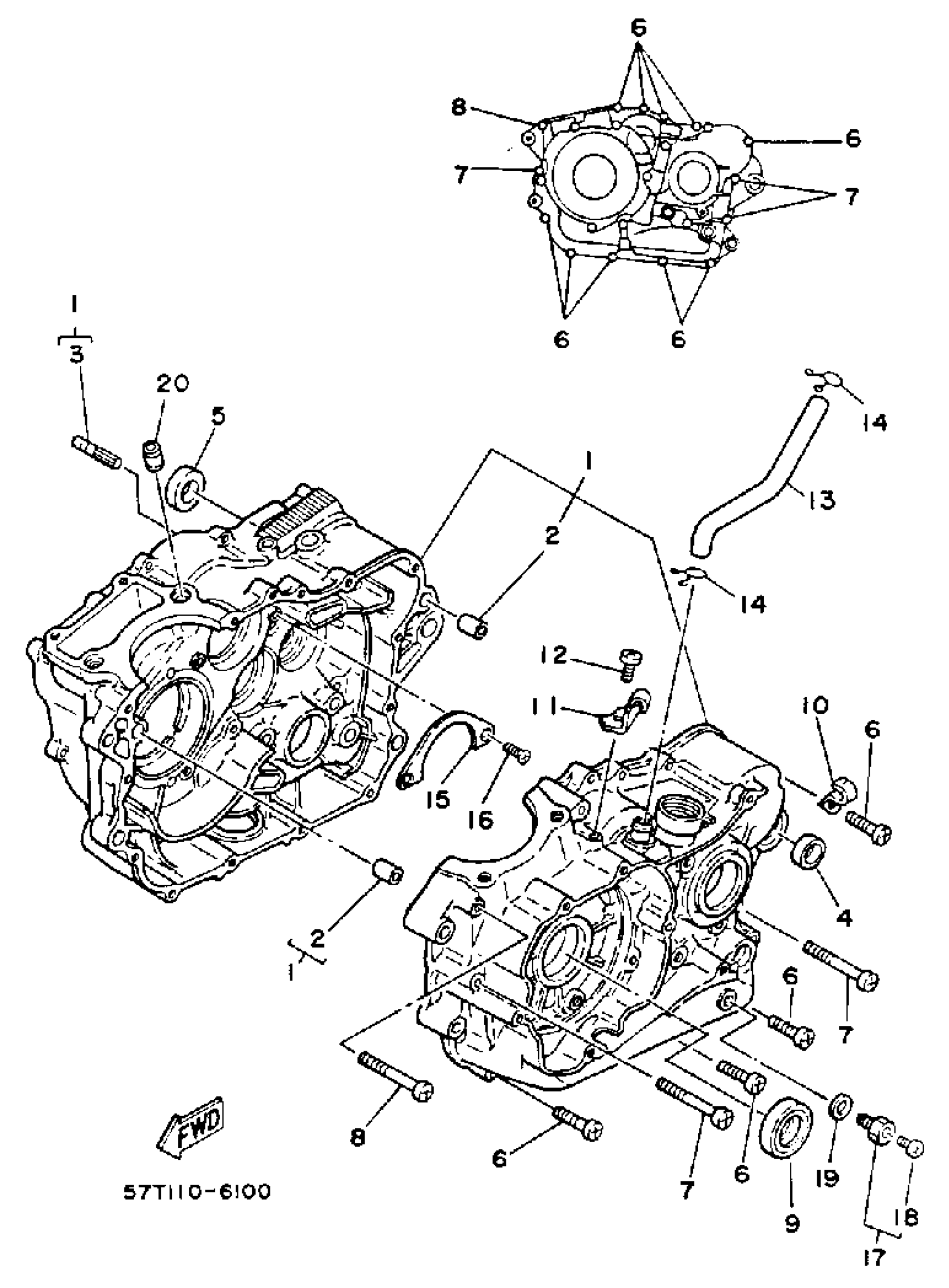

1993 Yamaha XT350 CA (XT350EC) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASSY

55V-15100-03-00

1
Out of stock

2

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

3

STOPPER

55V-15668-00-00

1
Out of stock

4

COLLAR

90387-17009-00

1
Out of stock

5

COLLAR (30X)

90387-172J0-00

—
Out of stock

6

SCREW, PAN

98517-06030-00

1
Out of stock

7

SCREW, PAN

98507-06060-00

1

$5.60

In stock

8

SCREW, PAN HEAD

98507-06070-00

1

$6.91

In stock

9

OIL SEAL (30X)

93102-25305-00

1
Out of stock

10

CLAMP(51Y)

90465-08277-00

—
Out of stock

11

HOLDER, CLUTCH CABLE

51Y-15441-00-00

1
Out of stock

12

SCREW, PAN HEAD(3TJ)

98507-06016-00

1

$2.43

In stock

13

PIPE, BREATHER 1

30X-11166-00-00

1
Out of stock

13

PIPE, BREATHER 1

56R-11166-00-00

1
Out of stock

14

CLIP (371)

90467-14015-00

1

$7.51

In stock

15

PLATE, BEARING COVER

30X-15383-00-00

1
Out of stock

16

SCREW, FLAT

98704-06016-00

1
Out of stock

17

PLUG, STRAIGHT SCREW(3FA)

90340-14132-00

—

$2.65

In stock

18

SCREW, BIND(2TV)

98980-06008-00

—

$0.58

In stock

19

GASKET

214-11198-01-00

—

$2.66

In stock

20

PIN, DOWEL

99530-14016-00

—

$3.20

In stock
