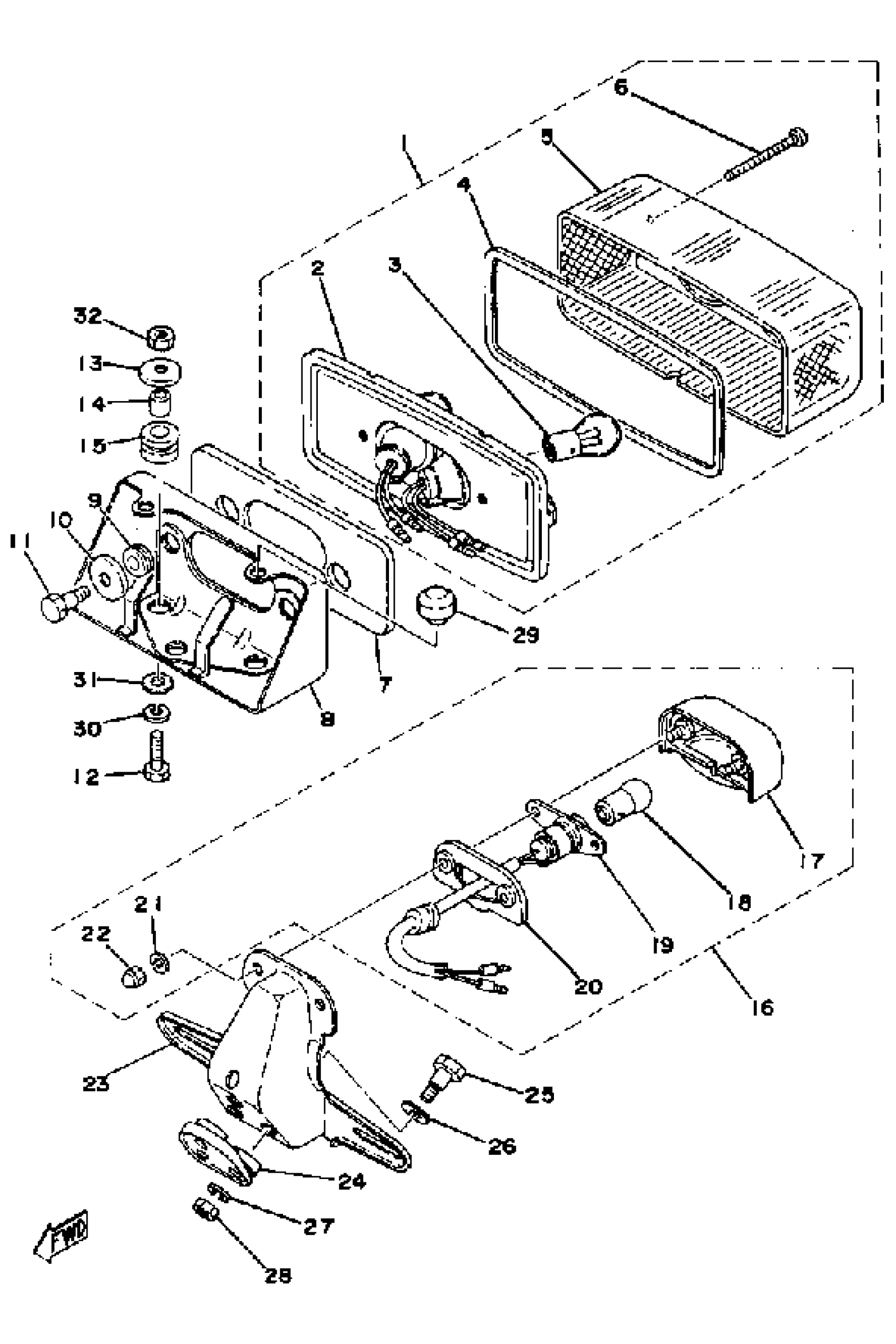

Find the part on the Taillight diagram for your 1976 Yamaha XS360 (XS360C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Yamaha XS360 (XS360C) Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TAILLIGHT UNIT ASSEMBLY

1L9-84710-60-00

1
Out of stock

2

BASE, TAILLIGHT

1L9-84711-60-00

1
Out of stock

3

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

1
Out of stock

4

. GASKET, TAIL LENS

1A0-84723-60-00

1
Out of stock

5

. LENS, TAILLIGHT

1A8-84721-61-00

1
Out of stock

6

SCREW, PANHEAD (4G7)

98580-04055-00

—
Out of stock

7

DAMPER

1A8-84736-00-00

1
Out of stock

8

BRACKET, TAILLIGHT

1L9-84702-60-33

1
Out of stock

9

GROMMET (2T4)

90480-12237-00

1
Out of stock

10

WASHER, SPECIAL

2H7-84754-00-00

1
Out of stock

11

BOLT, TAILLAMP

1A0-84726-60-00

1
Out of stock

12

BOLT, HEXAGON

97017-06025-00

1
Out of stock

13

WASHER, PLATE

90201-06380-00

1
Out of stock

14

COLLAR

90387-07020-00

1
Out of stock

15

GROMMET

90480-14123-00

1
Out of stock

16

LICENSE LAMP UNIT ASSEMBLY

1A8-84745-60-00

1
Out of stock

17

COVER, LICENSE LAMP

1A8-84743-60-00

1
Out of stock

18

BULB (12V 38W)

4H7-84744-00-00

1
Out of stock

19

CORD ASSEMBLY, LICENSE LIGHT

1A8-84747-60-00

1
Out of stock

20

GASKET

1A8-84742-60-00

1
Out of stock

21

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

22

NUT (CROWN)

95303-05800-00

1
Out of stock

23

BRACKET, LICENSE

1A8-84751-60-33

1
Out of stock

24

DAMPER

1L9-84753-01-00

1
Out of stock

25

BOLT, HEXAGON SOCKET HEAD

90110-05076-00

—
Out of stock

26

WASHER, PLAIN

92903-08200-00

1
Out of stock

27

WASHER, SPRING

92995-06100-00

1
Out of stock

28

NUT, HEXAGON

95380-06600-00

1
Out of stock

29

STOPPER

1L9-24768-00-00

1
Out of stock

30

WASHER, SPRING

92995-06100-00

1
Out of stock

31

YBS66-6 WASHER, PLAIN

92990-06200-00

—
Out of stock

32

NUT, HEXAGON

95380-06600-00

1
Out of stock
