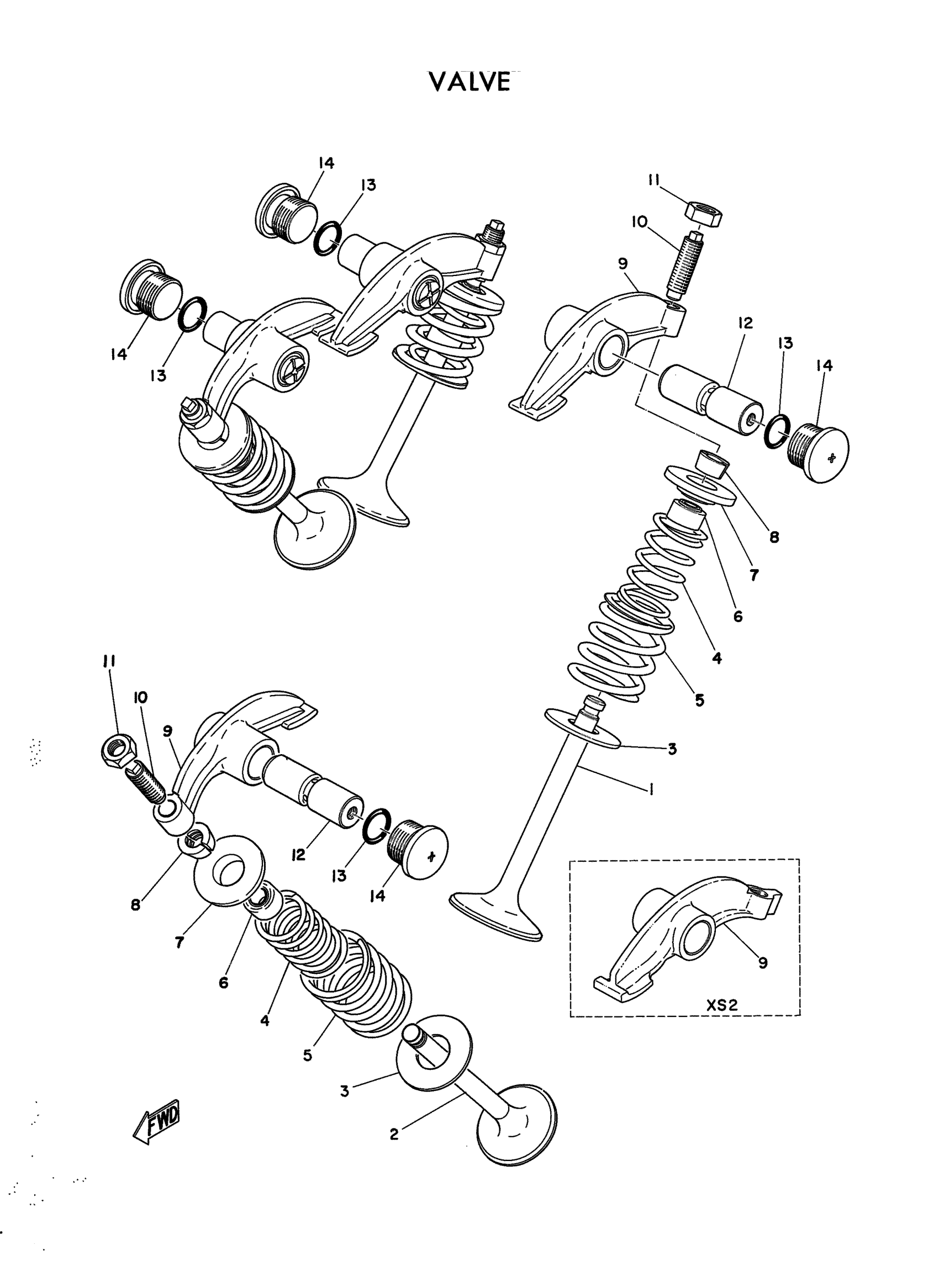

Yamaha XS2 (XS2) 1972 VALVE Diagram

#

Description
Price

1

VALVE, INTAKE#4

341-12111-04-00

Unavailable

2

VALVE, EXHAUST#1

341-12121-01-00

Unavailable

3

SEAT, VALVE SPRING

256-12116-01-00

Unavailable

4

SPRING, COMPRESSION

(90501-29150-00)

Unavailable

5

SPRING, COMPRESSION (256-12114-00)

90501-45167-00

Unavailable

6

SEAL, VALVE STEM OIL

341-12119-02-00

$13.26

7

RETAINER, VALVE SPRING

256-12117-02-00

$14.14

8

COTTER, VALVE

256-12118-00-00

Unavailable

8

LOCK, VALVE SPRING (447)

341-12118-00-00

$8.14

9

ARM, VALVE ROCKER

306-12151-00-00

Unavailable

10

SCREW, VALVE ADJUSTING

3HT-12159-R0-00

$13.61

11

NUT, HEXAGON

90170-08173-00

$6.26

12

SHAFT, ROCKER

256-12156-01-00

Unavailable

13

O-RING

93210-17143-00

Unavailable

14

PLUG, STRAIGHT SCRW

90340-18017-00

Unavailable
