1972 Yamaha XS2 (XS2) OIL Pump Diagram

← All diagrams

Find the part on the OIL Pump diagram for your 1972 Yamaha XS2 (XS2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

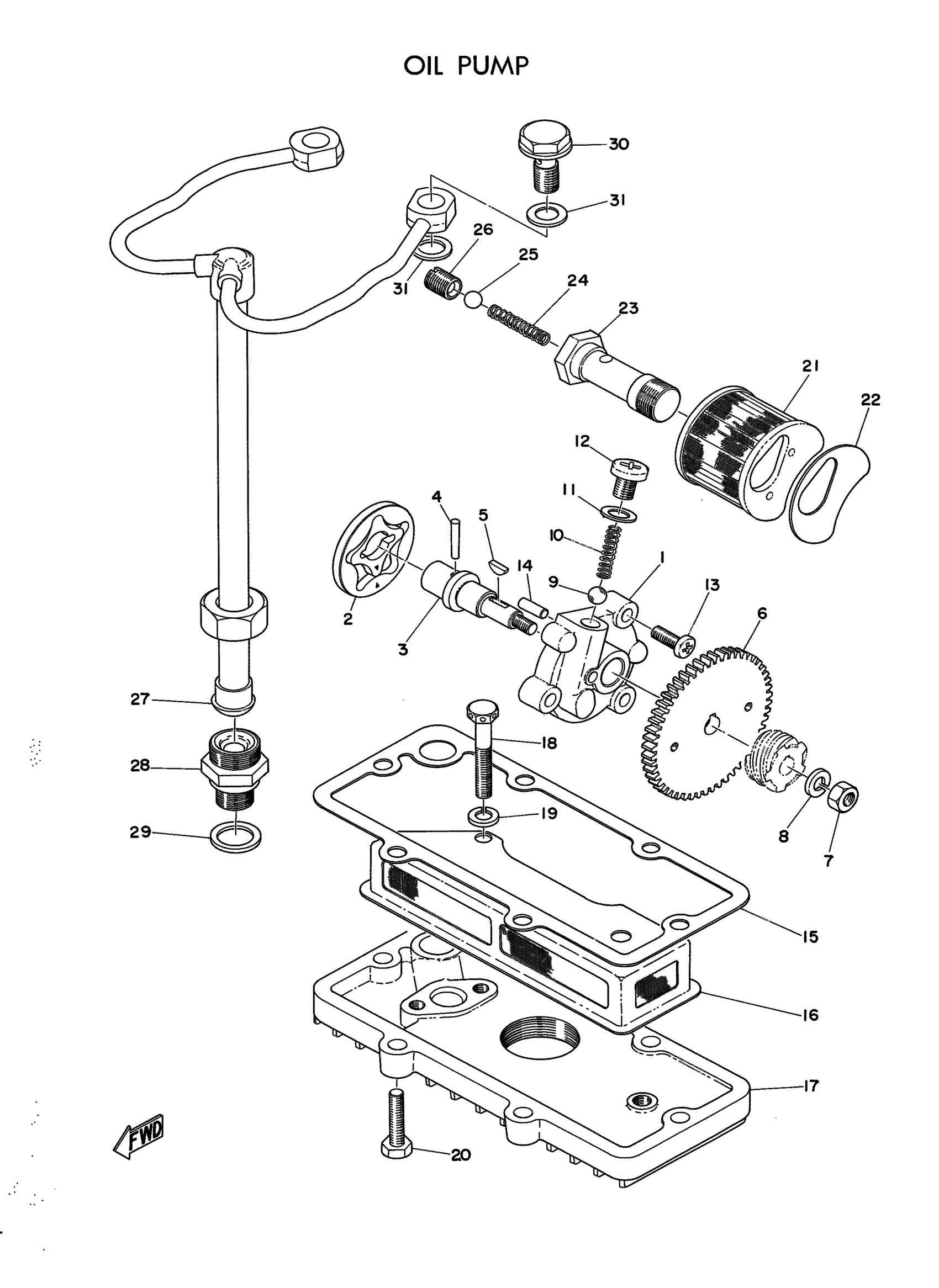

1972 Yamaha XS2 (XS2) OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, PUMP

256-00001-01-00

1
Out of stock

1

COVER, PUMP

256-00001-01-00

1
Out of stock

1

. COVER, PUMP

256-13316-02-00

1
Out of stock

2

ROTOR ASSEMBLY 1

(256-13310-01-00)

1
Out of stock

2

. ROTOR ASSEMBLY 1

256-13310-02-00

1
Out of stock

3

. SHAFT, PUMP

(256-13314-01-00)

1
Out of stock

4

PIN,DOWEL

93603-17070-00

1

$3.03

In stock

5

KEY, WOODRUFF

90280-03023-00

1
Out of stock

6

GEAR, PUMP DRIVEN

256-13325-00-00

1
Out of stock

7

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

8

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

9

BALL

93501-04011-00

1
Out of stock

10

SPRING, RELIEF

(256-13484-00-00)

1
Out of stock

11

GASKET

90430-08003-00

1
Out of stock

12

SCREW, PAN

98507-08010-00

1
Out of stock

13

SCREW PAN HEAD

98580-06020-00

—

$5.10

In stock

14

PIN,DOWEL (168)

93604-12037-00

—
Out of stock

15

GASKET, STRAINER COVER

256-13414-11-00

—
Out of stock

16

STRAINER, OIL

256-13411-01-00

1
Out of stock

17

COVER, STRAINER

256-13417-00-00

1
Out of stock

18

BOLT, FLAT HD.DRILL

(95201-06040-00)

1
Out of stock

18

BOLT (682)

97095-06040-00

—

$2.36

In stock

19

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

20

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

21

ELEMENT, OIL CLNR

256-13441-00-00

1
Out of stock

22

GASKET, ELEMENT

256-13445-10-00

—

$8.63

In stock

23

SCREW

256-13495-00-00

1
Out of stock

24

SPRING, COMPRESSION

90501-07031-00

1
Out of stock

25

BALL

93501-04011-00

1
Out of stock

26

SCREW, SPEC''L SHAPE

90149-10019-00

1
Out of stock

27

PIPE, DELIVERY 1

256-13161-01-00

1
Out of stock

28

BOLT, BANJO

(256-13165-00-00)

1
Out of stock

28

BOLT, BANJO

256-13165-02-00

1
Out of stock

29

GASKET 256131670000

90430-14043-00

—

$6.46

In stock

30

BOLT, UNION (16G)

90401-10084-00

—
Out of stock

31

GASKET (5R6)

90430-10171-00

—

$3.17

In stock
