1972 Yamaha XS2 (XS2) Crank - Piston Diagram

← All diagrams

Find the part on the Crank - Piston diagram for your 1972 Yamaha XS2 (XS2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

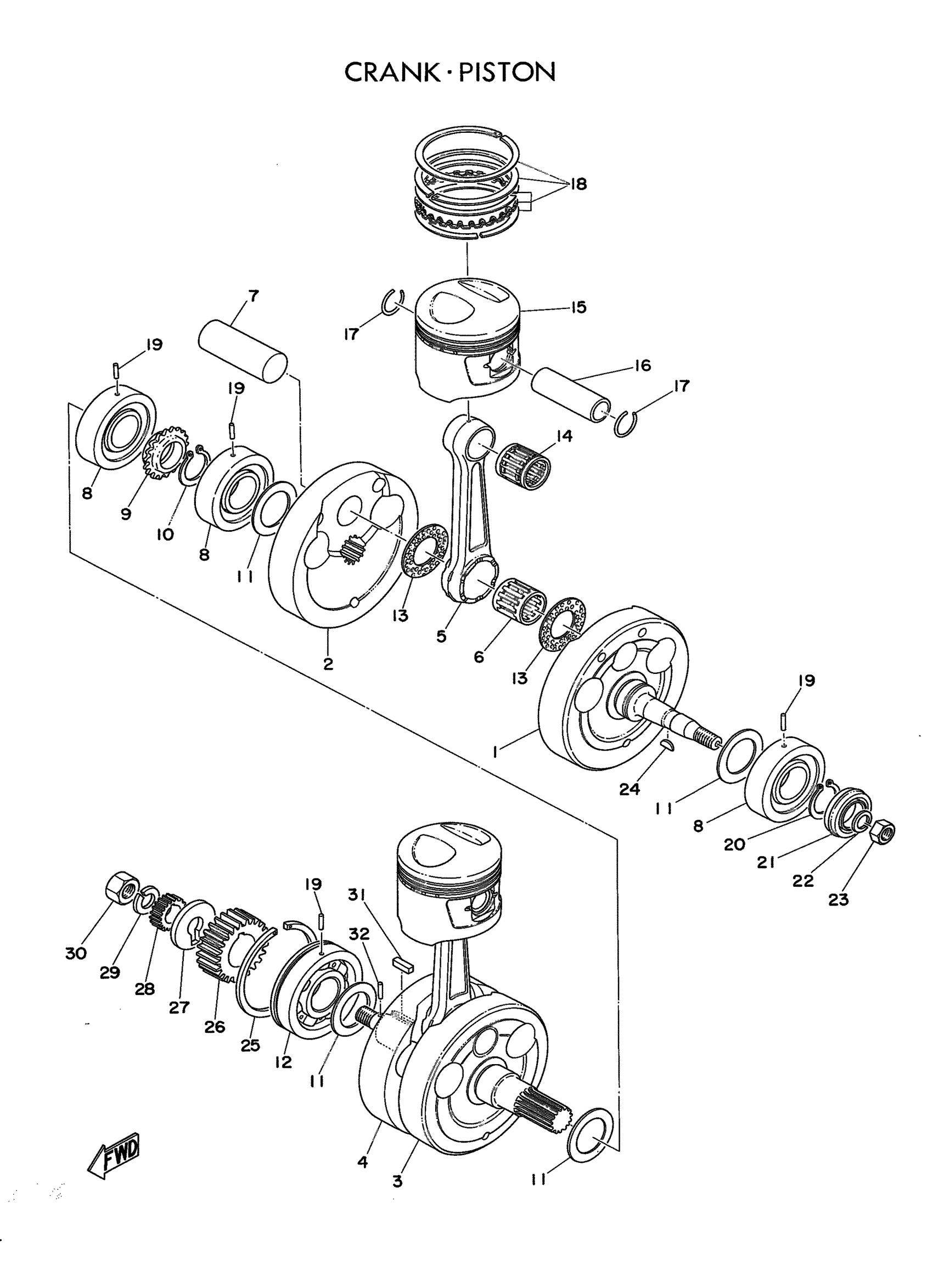

1972 Yamaha XS2 (XS2) Crank - Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

. CRANK 1

(256-11412-01-00)

1
Out of stock

1

CRANKSHAFT ASSEMBLY

(306-11400-02-00)

1
Out of stock

2

. CRANK 2

(256-11422-01-00)

1
Out of stock

3

. CRANK 3

(256-11432-02-00)

1
Out of stock

4

. CRANK 4

(256-11442-01-00)

1
Out of stock

4

. CRANK 4

(306-11442-03-00)

1
Out of stock

5

. ROD, CONNECTING 002

256-11651-01-00

1
Out of stock

6

. BEARING, CYLINDER#10

93310-62660-00

1
Out of stock

7

PIN,CRANK 1

306-11681-00-00

1
Out of stock

8

BRG,CYL-CAL ROLLER 314G KY

93390-00003-00

1
Out of stock

9

. SPROCKET, CAM CHAIN

(256-11549-00-00)

1
Out of stock

10

CIRCLIP

93410-32075-00

1

$6.97

In stock

11

WASHER (8H0)

90201-34683-00

1
Out of stock

12

BEARING

93306-30604-00

1
Out of stock

13

. WASHER, SPEC''L SHAP

90209-26014-00

1
Out of stock

14

BEARING, CYLINDER.#10

93310-22242-00

1
Out of stock

15

PISTON STD

(256-11631-02-96)

1
Out of stock

15

PISTON 1 O/S 0.25 (0.25MM 1ST O.S.)

256-11635-02-00

1
Out of stock

15

PISTON 2 O/S 0.50 (0.50MM 2ND O.S.)

256-11636-02-00

1
Out of stock

16

PIN, PISTON

256-11633-00-00

1
Out of stock

17

CIRCLIP 256116340000

93450-24028-00

—

$4.07

In stock

18

PISTON RINGSET STD (STD)

256-11610-00-00

1
Out of stock

18

PISTON RINGSET 1ST (1ST O.S.)

256-11610-10-00

1
Out of stock

18

PISTON RINGSET 2ND (2ND O.S.)

256-11610-20-00

1
Out of stock

19

PIN, DOWEL

93605-12069-00

1
Out of stock

20

CIRCLIP

93410-32075-00

1

$6.97

In stock

21

OIL SEAL (25X40X8-248)

93102-25061-00

—

$11.00

In stock

22

YBS67-12 WASHER,SPRING

92990-12100-00

—

$6.68

In stock

23

NUT(3DM)

95304-12600-00

—

$6.68

In stock

24

KEY,WOODRUFF

90280-04005-00

1
Out of stock

25

CIRCLIP, OUTER

93440-78011-00

1
Out of stock

26

GEAR, PRI DRIVE

(256-16111-00-00)

1
Out of stock

27

WASHER, CLAW

(99999-01158-00)

1
Out of stock

28

GEAR, PUMP DRIVE

(256-13324-01-00)

1
Out of stock

29

WASHER(6TC)

92907-14100-00

—

$5.62

In stock

30

NUT, HEXAGON

90170-14076-00

1
Out of stock

31

KEY, STRAIGHT (584)

90282-07023-00

—
Out of stock

32

PIN,DOWEL

93603-17070-00

—

$3.03

In stock
