1972 Yamaha XS2 (XS2) Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 1972 Yamaha XS2 (XS2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

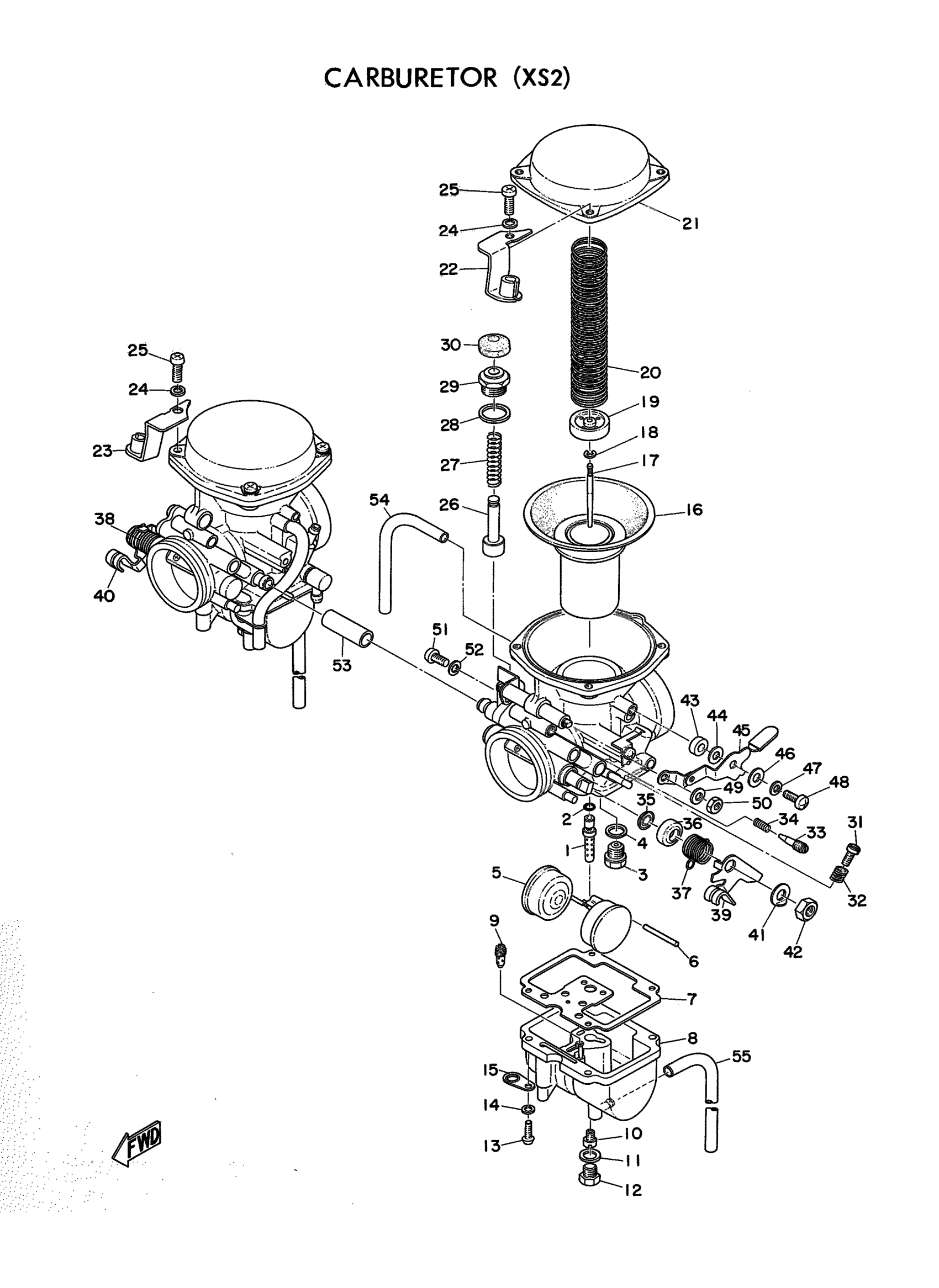

1972 Yamaha XS2 (XS2) Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

Z-6

(256-14941-86-00)

1
Out of stock

1

CARBURETOR ASSEMBLY 1

(306-14901-03-00)

1
Out of stock

2

CARBURETOR ASSEMBLY 2

306-14902-03-00

1
Out of stock

2

O-RING (256)

93210-03142-00

1

$10.62

In stock

3

VALVE SEAT ASSY

168-14190-20-00

1

$31.82

In stock

4

WASHER, VALVE SEAT

214-14195-00-00

1

$6.11

In stock

5

FLOAT

256-14985-00-00

1

$83.26

In stock

6

PIN, FLOAT

127-14186-00-00

1

$6.23

In stock

7

GASKET, FLOAT CHAMBER

256-14984-01-00

1

$40.62

In stock

8

. BODY, FLOAT CHAMBER

447-14981-00-00

1
Out of stock

9

JET, PILOT (# 42.5)

4G0-14142-42-A0

1
Out of stock

10

JET, MAIN (#130)

3G2-14231-26-A0

1

$10.06

In stock

11

WASHER

256-14956-01-00

1

$6.46

In stock

12

.. SCREW, PLUG

256-14991-00-00

1
Out of stock

13

SCREW, PAN HEAD

98511-04012-00

1
Out of stock

14

YBS67-4 WASHER, SPRING

92990-04100-00

—

$0.60

In stock

15

PLATE

500-14146-00-00

—
Out of stock

16

.. DIAPHRAGM ASSY (256-14940-01-00)

256-14940-00-00

1
Out of stock

17

. NEEDLE (4JN19-4)

256-14916-19-00

1
Out of stock

18

CLIP

256-14919-00-00

—

$6.17

In stock

19

.. PLATE, NEEDLE FITTING

256-14946-00-00

1
Out of stock

20

. SPRING, DIAPHRAGM

256-14933-00-00

1
Out of stock

21

COVER, DIAPHRAGM

(256-14958-00-00)

1
Out of stock

22

BRACKET, THROTTLE 1

(447-14926-00-00)

1
Out of stock

23

BRACKET, THROTTLE 2

(341-14927-00-00)

1
Out of stock

24

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

25

SCREW,PAN HEAD (646)

98580-05012-00

—

$5.60

In stock

26

PLUNGER, STARTER

(306-14171-01-00)

1
Out of stock

27

. SPRING, PLUNGER

256-14135-00-00

1
Out of stock

28

WASHER

(306-14954-00-00)

1
Out of stock

29

CAP, PLUNGER

(306-14174-00-00)

1
Out of stock

30

.. COVER, PLUNGER CAP

306-14173-00-00

1
Out of stock

31

.. SCREW, THROTTLE STOP

256-14922-01-00

1
Out of stock

32

.. SPRING, THROTTLE STOP

256-14934-01-00

1
Out of stock

33

SCREW, PILOT

(256-14923-00-00)

1
Out of stock

34

SPRING, AIR ADJUSTING

127-14134-00-00

—

$6.37

In stock

35

.. SEAL

256-14997-00-00

1

$9.75

In stock

36

CAP

(306-14969-00-00)

1
Out of stock

37

SPRING, THRTL LEVER

(306-14931-00-00)

1
Out of stock

38

SPRING, THRTL 2

(306-14932-00-00)

1
Out of stock

39

LEVER, THROTTLE 2

(306-14964-00-00)

1
Out of stock

40

LEVER, THROTTLE

(306-14915-00-00)

1
Out of stock

41

.. WASHER

256-14953-00-00

1
Out of stock

42

NUT(3DM)

95304-12600-00

—

$6.68

In stock

43

.. RING

256-14918-00-00

1
Out of stock

44

. WASHER

256-14955-00-00

1
Out of stock

45

.. LEVER ASSY

306-14905-02-00

1
Out of stock

46

WASHER

4CW-14962-00-00

—
Out of stock

47

YBS67-4 WASHER, SPRING

92990-04100-00

—

$0.60

In stock

48

SCREW, PAN HEAD

98511-04012-00

1
Out of stock

49

WASHER

(256-14973-00-00)

1
Out of stock

50

NUT (682)

95380-10700-00

1

$5.78

In stock

51

SCREW, PAN HEAD

98511-04012-00

1
Out of stock

52

YBS67-4 WASHER, SPRING

92990-04100-00

—

$0.60

In stock

53

PIPE, STARTER CON

(306-14988-00-00)

1
Out of stock

54

PIPE, AIRVENT

(256-14197-01-00)

1
Out of stock

55

HOSE

(256-14987-00-00)

1
Out of stock

56

SHAFT, STARTER LVR

(306-14977-00-00)

1
Out of stock

57

. CLIP

256-14937-00-00

1
Out of stock
