1972 Yamaha XS2 (XS2) Cylinder - Decompression Diagram

← All diagrams

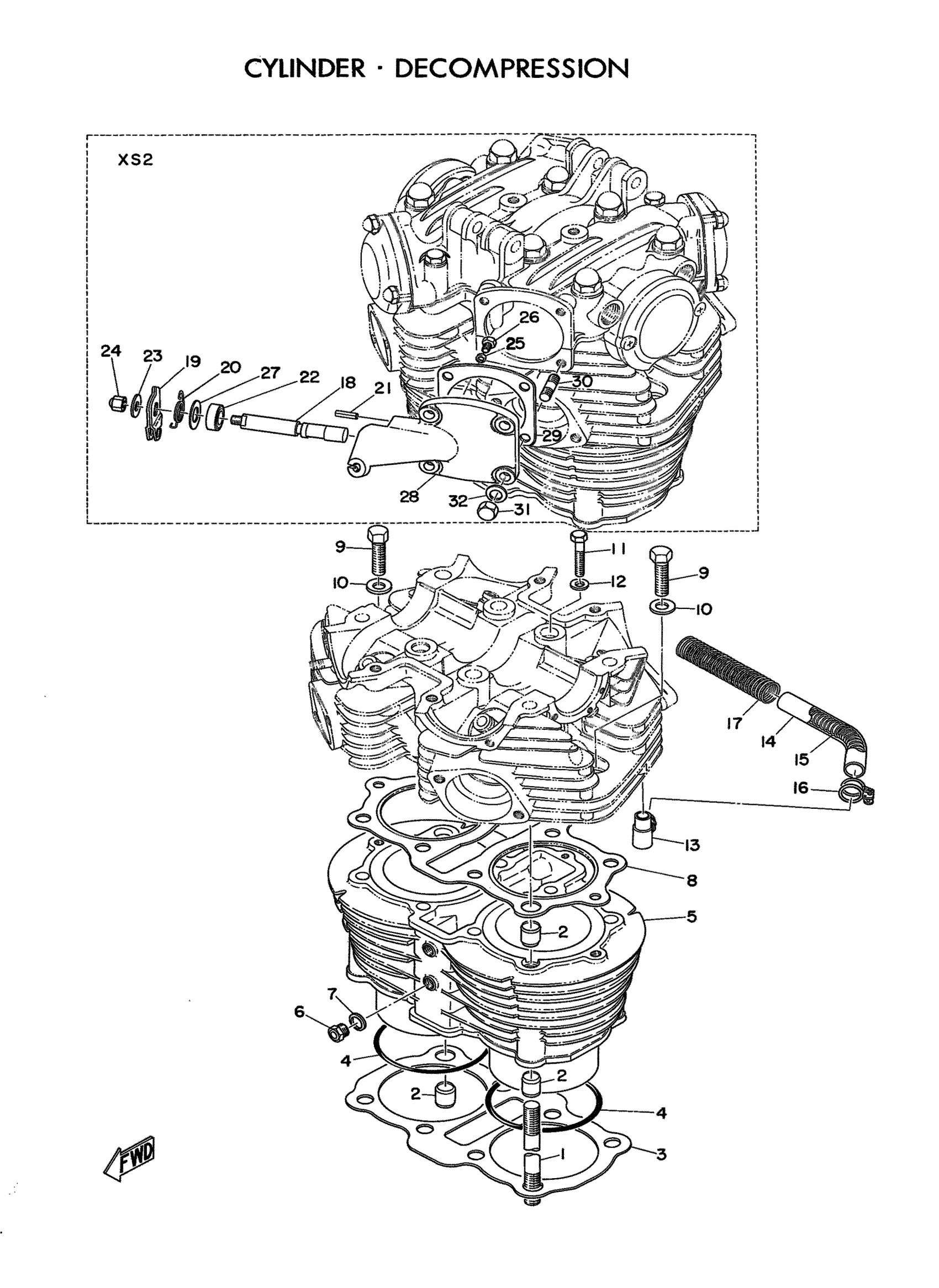

Find the part on the Cylinder - Decompression diagram for your 1972 Yamaha XS2 (XS2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha XS2 (XS2) Cylinder - Decompression Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOLT, STUD

90116-10108-00

1
Out of stock

2

PIN, DOWEL

99530-14016-00

1

$3.20

In stock

3

GASKET, CYLINDER

256-11351-11-00

—

$18.80

In stock

3

GASKET, CYLINDER

256-11351-11-00

—

$18.80

In stock

4

O-RING(1UX)

93210-81731-00

1

$17.28

In stock

5

CYLINDER

(306-11310-01-00)

1
Out of stock

6

HOLDER

(256-11395-00-00)

1
Out of stock

6

HOLDER

256-11395-01-00

1
Out of stock

6

HOLDER

256-11395-02-00

1
Out of stock

7

GASKET

90430-11033-00

1
Out of stock

8

GASKET, CYLHD1

306-11181-01-00

1
Out of stock

8

GASKET, CYLHD1

306-11181-02-00

1
Out of stock

9

BOLT

97013-08035-00

1

$4.80

In stock

10

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

11

BOLT(3RV)

97014-06035-00

1

$1.54

In stock

12

WASHER, PLATE (371)

90201-06431-00

—
Out of stock

13

PIPE

(256-14465-00-00)

1
Out of stock

14

HOSE

(90445-16160-00)

1
Out of stock

15

SPRING, COMPRESSION

(90501-08043-00)

1
Out of stock

16

CLAMP, HOSE

(90460-14003-00)

1
Out of stock

17

SPRING, COMPRESSION

90501-101J3-00

1
Out of stock

18

CAM, DCOMP

(306-12288-00-00)

1
Out of stock

19

LEVER, DCOMP

306-12282-00-00

1
Out of stock

20

SPRING, TORSION (306-12287-00)

90508-16019-00

1
Out of stock

21

PIN, SPRING (648)

91690-40016-00

—

$6.68

In stock

22

OIL SEAL, SD-TYPE

(93102-12100-00)

1
Out of stock

23

WASHER, PLATE

90201-06020-00

—

$6.28

In stock

24

NUT (J17)

95380-06800-00

—

$6.74

In stock

25

WASHER, PLATE (371)

90201-06431-00

—
Out of stock

26

BOLT, STOPPER

(306-12299-00-00)

1
Out of stock

26

BOLT

(90109-06075-00)

1
Out of stock

27

WASHER, PLATE (12.5-25-0.5) (306-12289-00)

90201-12184-00

1
Out of stock

28

COVER, CYLINDER.HEAD 3

306-11187-00-00

1
Out of stock

29

GASKET

306-11198-10-00

1
Out of stock

30

BOLT, STUD

90116-08150-00

1
Out of stock

31

NUT, CROWN

95303-08800-00

—

$7.52

In stock

32

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

33

SPROCKET

NOTAVAILABLE

1
Out of stock
