1972 Yamaha XS2 (XS2) Crankcase Diagram

← All diagrams

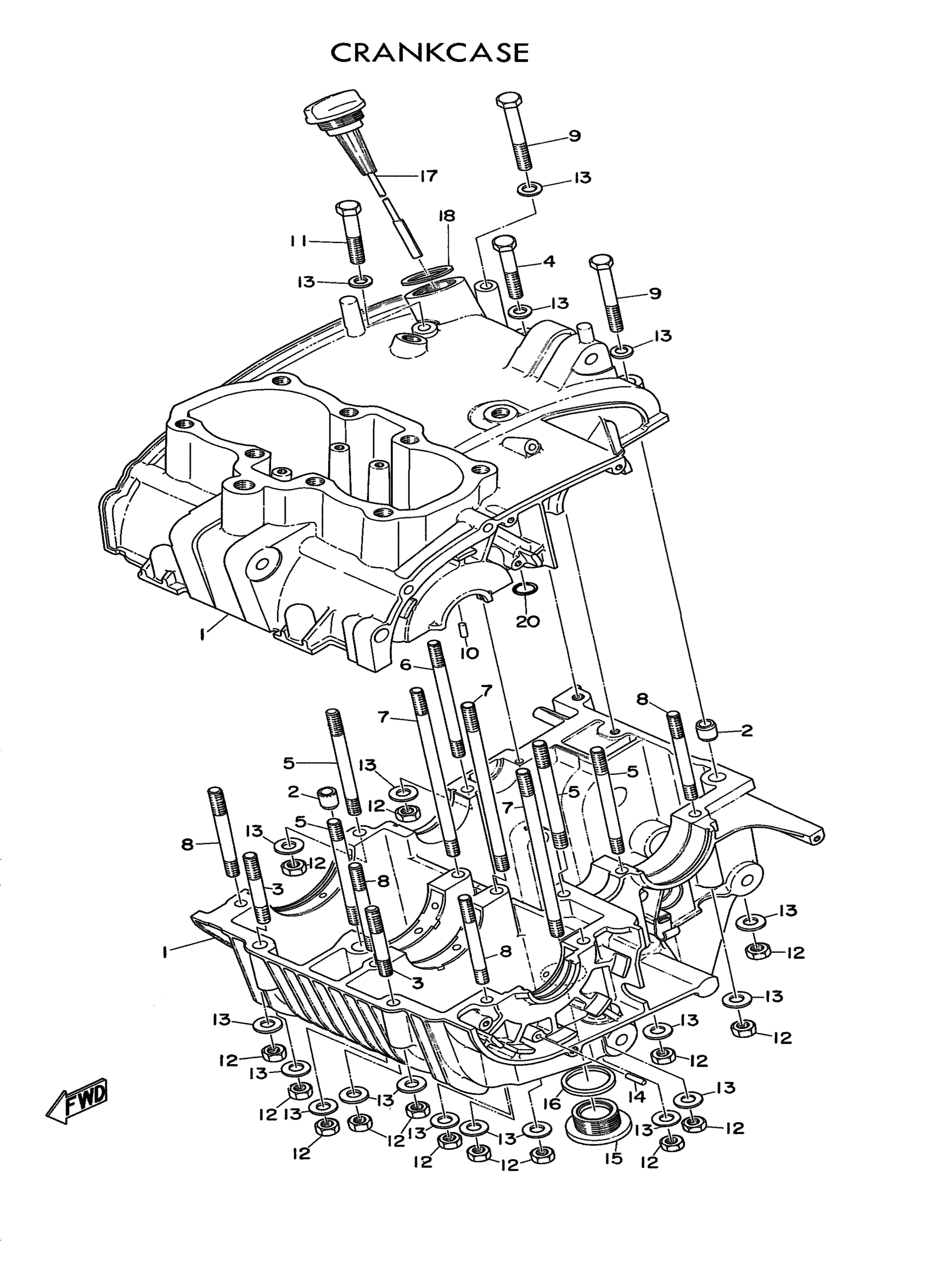

Find the part on the Crankcase diagram for your 1972 Yamaha XS2 (XS2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha XS2 (XS2) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASSEMBLY

(306-15100-03-00)

1
Out of stock

2

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

3

BOLT,STUD

90116-08371-00

1
Out of stock

4

BOLT, HEXAGON

97013-08055-00

1

$3.25

In stock

5

BOLT, STUD (1A1)

90116-08232-00

1
Out of stock

6

PLUG, OIL

(204-15363-01-00)

1
Out of stock

7

BOLT, STUD

(90116-08199-00)

1
Out of stock

8

BOLT, STUD

90116-05220-00

1
Out of stock

9

BOLT (6K8)

97013-08075-00

1

$5.66

In stock

10

PIN, DOWEL

93605-12069-00

1
Out of stock

11

BOLT (97321-08090)

97023-08090-00

1
Out of stock

12

NUT(6L2)

95333-08600-00

1

$3.20

In stock

13

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

14

PIN, DOWEL

93603-14026-00

1
Out of stock

15

PLUG, DRAIN

256-15351-00-00

1
Out of stock

16

GASKET, DRAIN PLUG

256-15353-00-00

—

$13.06

In stock

17

PLUG, OIL LEVEL

256-15362-02-00

1
Out of stock

18

GASKET 214217720000

90430-29114-00

—

$6.20

In stock

19

BOLT, STUD

90116-08066-00

1
Out of stock

19

BOLT, STUD (1A1)

90116-08232-00

1
Out of stock

20

GASKET, OIL SEALING

256-15395-00-00

1
Out of stock

21

BOLT, STUD (19U)

90116-08393-00

—

$3.78

In stock

22

BOLT, STUD (306-15192-00)

90116-08047-00

1
Out of stock

23

BOLT, STUD

90116-08066-00

1
Out of stock

24

NUT, CROWN

90176-08019-00

1
Out of stock

25

. GASKET

90430-08143-00

1

$2.90

In stock
