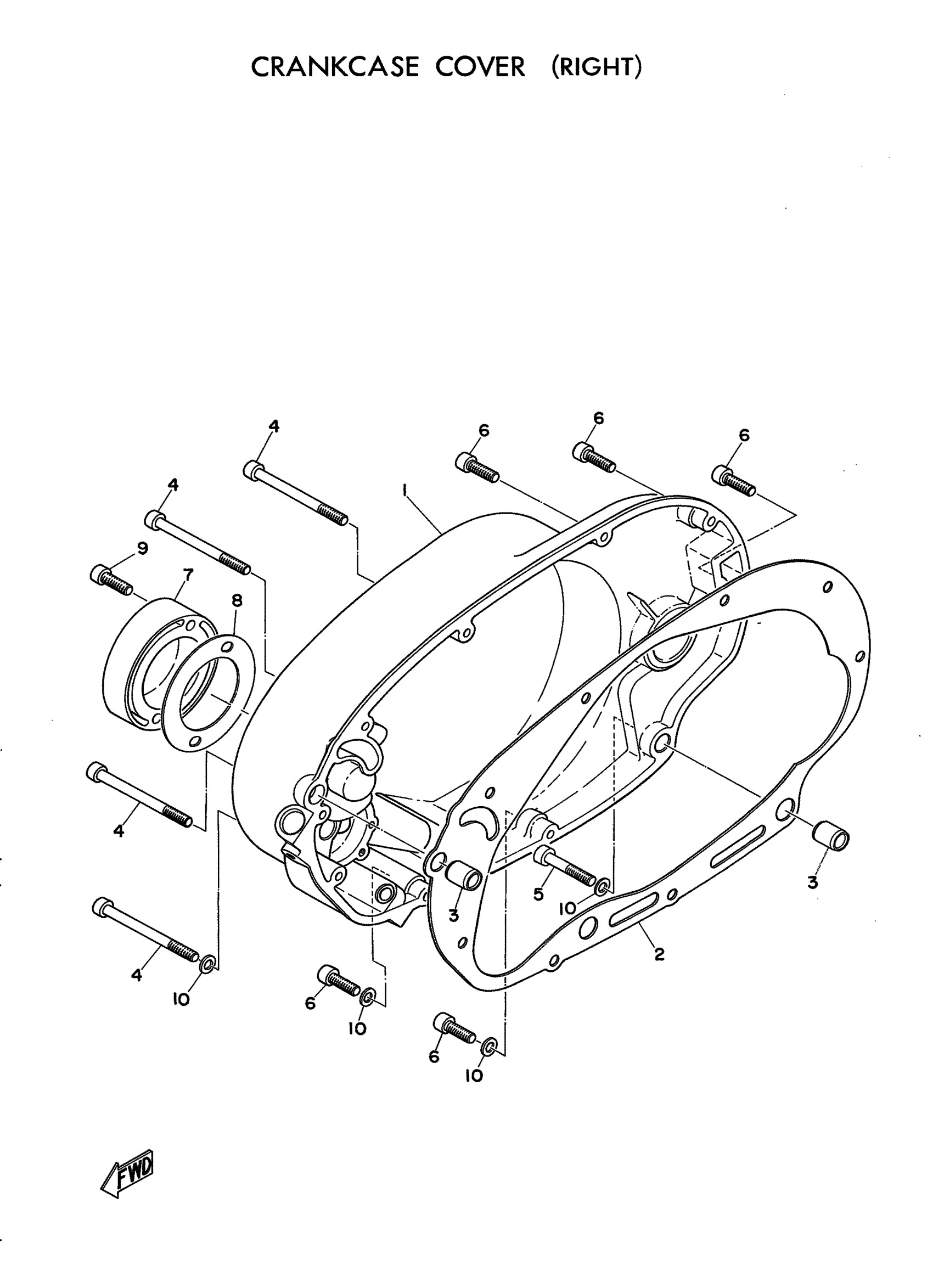

Yamaha XS2 (XS2) 1972 CRANKCASE COVER (RIGHT) Diagram

#

Description
Price

1

CVR CRANKCASE RH (256-15421-04)

99999-01146-00

Unavailable

2

GASKET, CRANK CASE COVER (R.H)

256-15451-10-00

$35.52

3

PIN, DOWEL

99530-12016-00

$3.85

4

BOLT, SOCKET

91317-06075-00

$3.56

5

BOLT,SOCKET

91317-06040-00

$3.22

6

BOLT,SOCKET

91317-06025-00

$1.91

7

COVER, OIL PUMP 001

(256-15416-01-00)

Unavailable

8

GASKET

256-15456-10-00

$12.11

9

BOLT,SOCKET

91317-06025-00

$1.91

10

GASKET 256113960000

90430-06014-00

Unavailable
