2025 Kawasaki W230 Chassis Electrical Equipment Diagram

← All diagrams

Find the part on the Chassis Electrical Equipment diagram for your 2025 Kawasaki W230, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

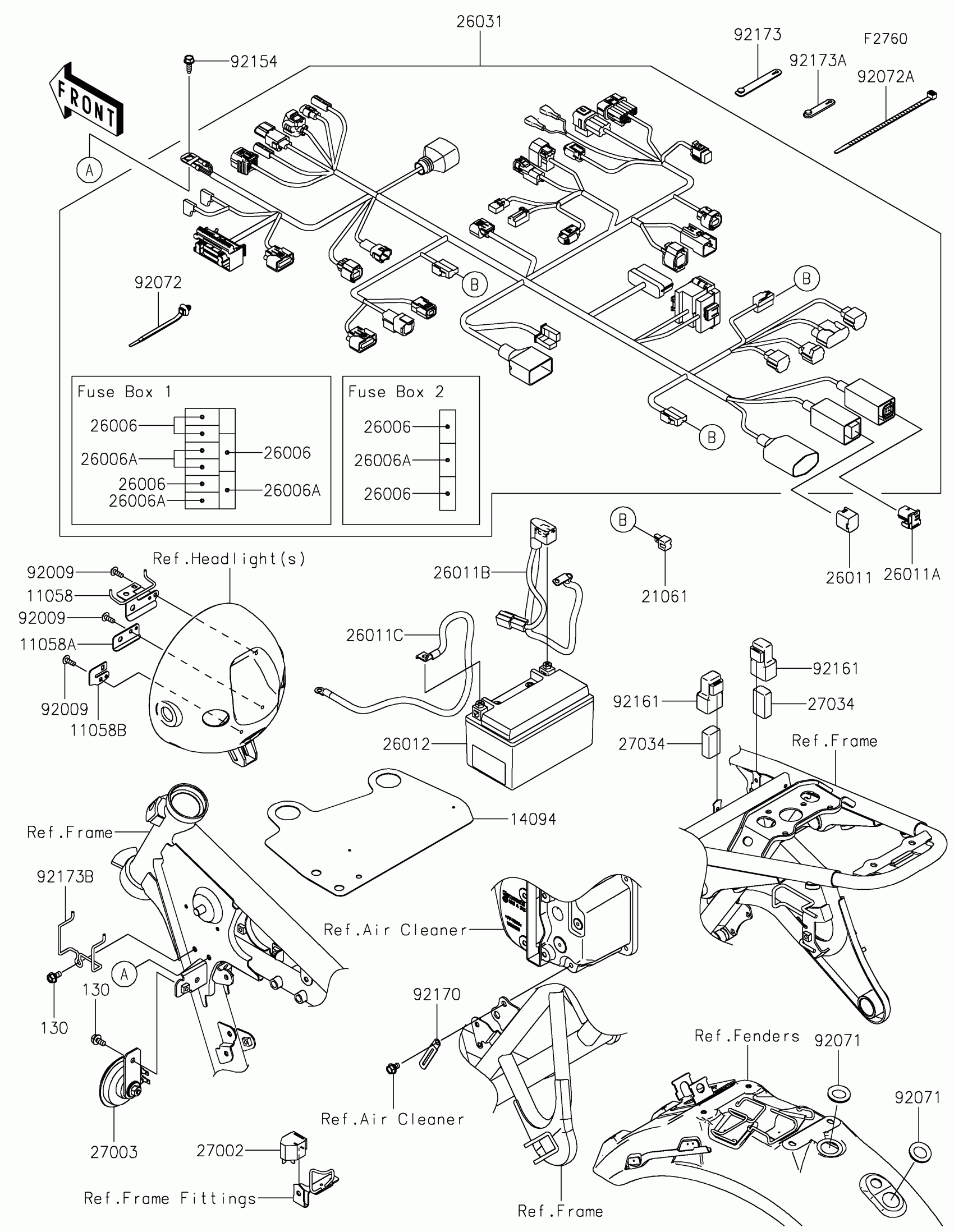

2025 Kawasaki W230 Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11058

BRACKET

11058-1650

1

$7.15

In stock

11058A

BRACKET

11058-1651

1

$2.56

In stock

11058B

BRACKET

11058-1652

1

$2.63

In stock

14094

COVER,HARNESS

14094-0381

1

$14.51

In stock

21061

RECTIFIER

21061-1003

1

$30.17

In stock

26006

FUSE,BLADE,10A,RED

26006-1007

1

$3.94

In stock

26006A

FUSE,BLADE,15A,BLUE

26006-1061

1

$4.80

In stock

26011

1

$13.42

In stock

26011A

1

$33.83

In stock

26011B

1

$49.62

In stock

26011C

1

$24.44

In stock

26012

1

$119.52

In stock

26031

HARNESS,MAIN

26031-4466

1

$679.54

In stock

27002

1

$24.24

In stock

27003

HORN

27003-0065

1

$69.35

In stock

27034

RELAY

27034-0012

1

$37.62

In stock

92009

SCREW,TAPPING,5X14

92009-1197

1
Out of stock

92071

GROMMET,18X29X5

92071-0054

1

$4.42

In stock

92072

—

$2.97

In stock

92072A

BAND,L=152

92072-3874

1

$3.75

In stock

92154

BOLT,FLANGED,6X18

92154-4008

1

$1.22

In stock

92161

DAMPER

92161-2290

1

$5.27

In stock

92170

CLAMP

92170-1514

1

$3.43

In stock

92173

CLAMP

92173-2194

1

$1.56

In stock

92173A

CLAMP

92173-2198

1

$1.32

In stock

92173B

CLAMP

92173-2773

1

$5.83

In stock

130

BOLT-FLANGED,6X12

130BA0612

1

$1.46

In stock
← Tires Generator →
