2025 Kawasaki W230 Turn Signals Diagram

← All diagrams

Find the part on the Turn Signals diagram for your 2025 Kawasaki W230, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

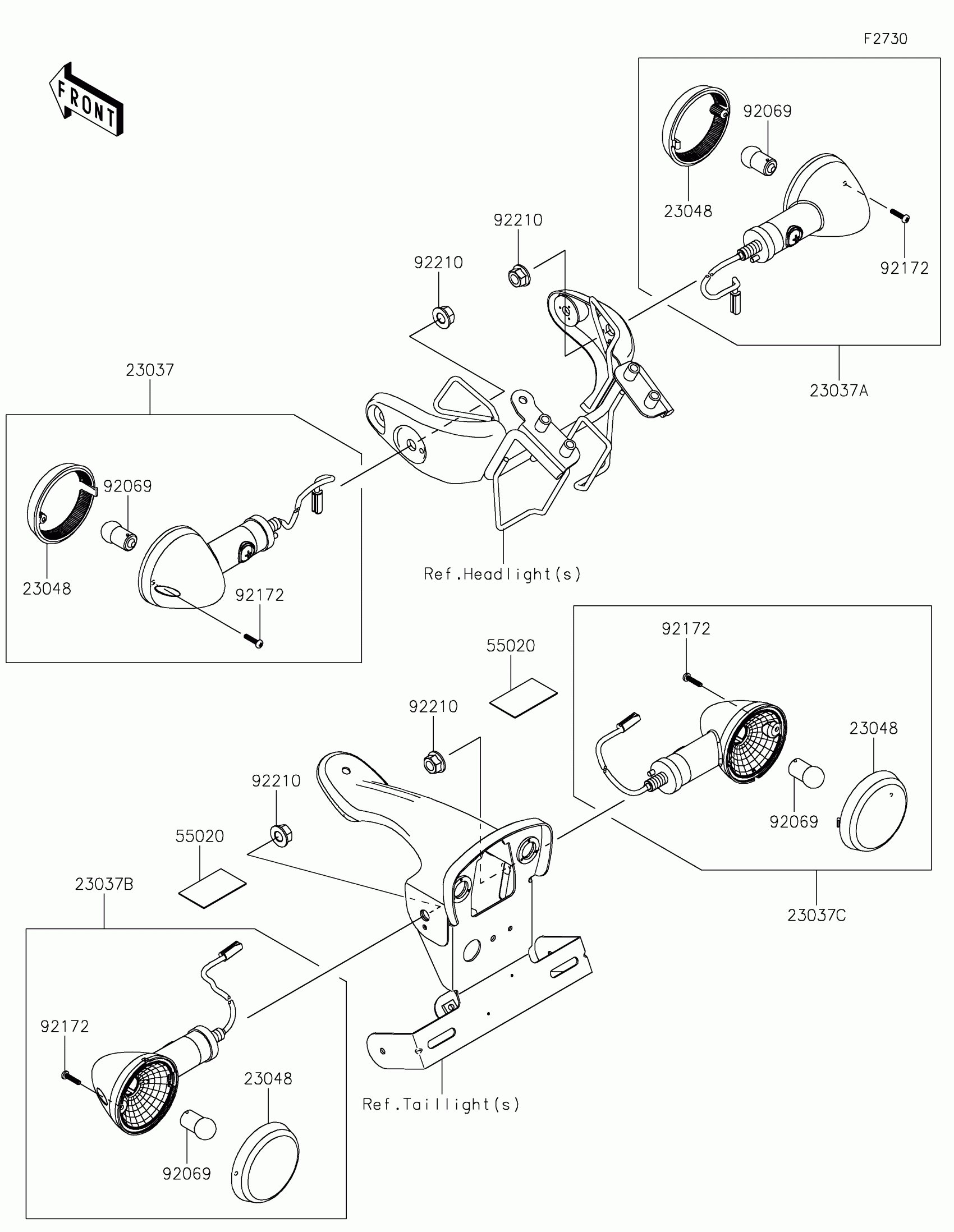

2025 Kawasaki W230 Turn Signals Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

23037

LAMP-ASSY-SIGNAL,FR,LH

23037-0586

1
Out of stock

23037A

LAMP-ASSY-SIGNAL,FR,RH

23037-0587

1
Out of stock

23037B

1

$48.54

In stock

23037C

1

$48.54

In stock

23048

LENS-SIGNAL LAMP

23048-0042

1

$7.20

In stock

55020

GUARD,50X30

55020-2334

1

$2.80

In stock

92069

BULB,12V 10W

92069-0130

1

$2.14

In stock

92172

SCREW,TAPPING,6X16

92172-1392

1

$0.55

In stock

92210

NUT,FLANGED,10MM

92210-0869

1
Out of stock
