2025 Kawasaki W230 Starter Motor Diagram

← All diagrams

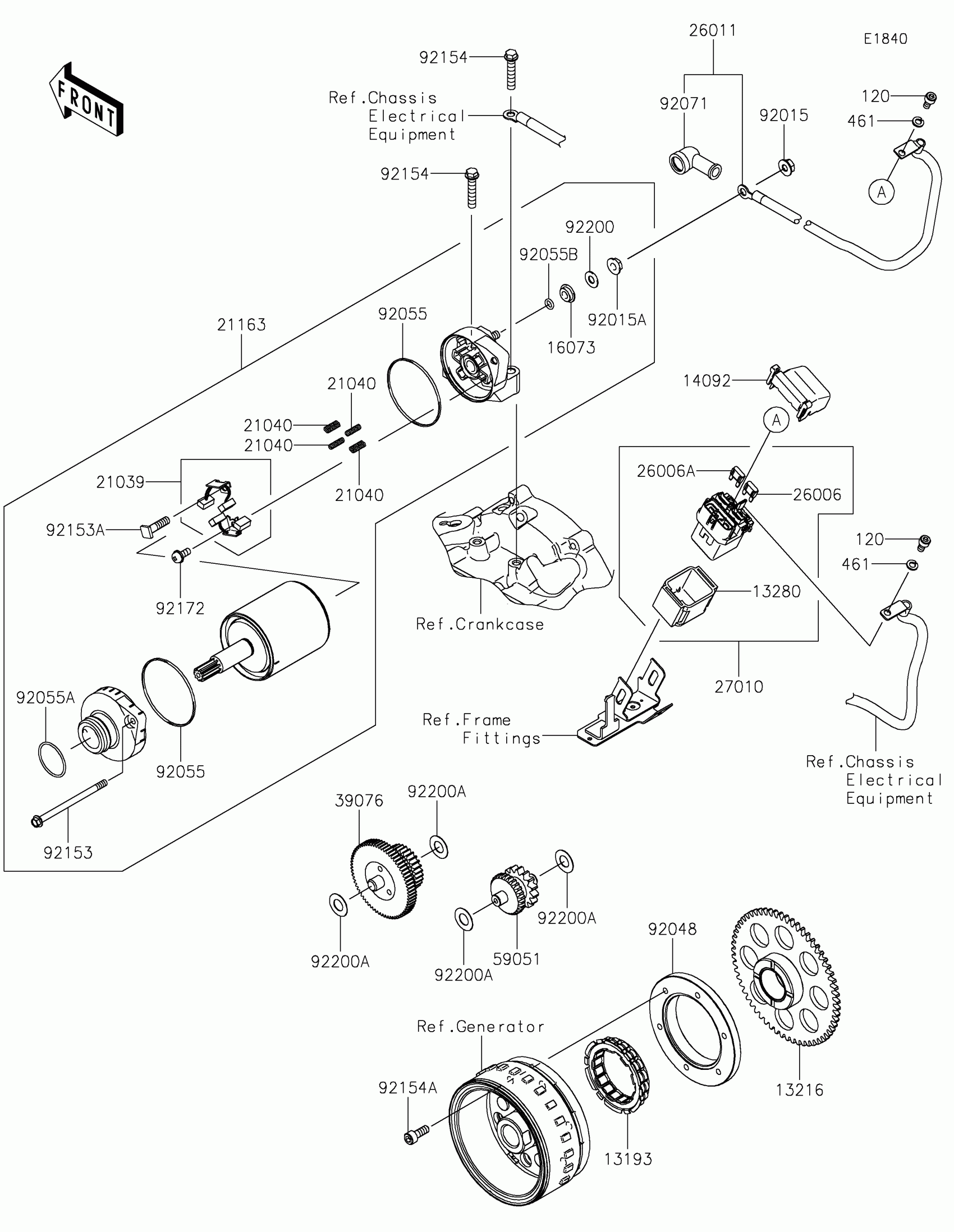

Find the part on the Starter Motor diagram for your 2025 Kawasaki W230, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki W230 Starter Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13193

CLUTCH-ASSY-ONEWAY

13193-0014

1

$121.73

In stock

13216

1

$150.42

In stock

13280

1

$11.37

In stock

14092

COVER

14092-0109

1

$9.22

In stock

16073

INSULATOR

16073-0053

1

$11.42

In stock

21039

BRUSH,CARBON

21039-0004

1

$120.17

In stock

21040

SPRING-BRUSH

21040-0003

1

$9.47

In stock

21163

STARTER-ELECTRIC

21163-0783

1

$324.84

In stock

26006

1

$5.34

In stock

26006A

1

$4.32

In stock

26011

WIRE-LEAD

26011-2464

1

$32.53

In stock

27010

SWITCH

27010-0770

1

$111.05

In stock

39076

1

$180.12

In stock

59051

GEAR-SPUR,IDLER

59051-0824

1

$58.83

In stock

92015

NUT,FLANGED,6MM

92015-1367

1

$2.93

In stock

92015A

NUT,STARTER MOTOR

92015-1476

1

$3.85

In stock

92048

RACE,ONEWAY CLUTCH

92048-0030

1

$55.26

In stock

92055

RING-O

92055-0136

1

$6.16

In stock

92055A

RING-O

92055-1276

1

$7.86

In stock

92055B

RING-O,4.5X2.0

92055-1370

1

$4.17

In stock

92071

GROMMET

92071-0024

1

$9.86

In stock

92153

BOLT

92153-1850

1

$11.42

In stock

92153A

BOLT

92153-1866

1

$4.14

In stock

92154

BOLT,FLANGED,6X30

92154-1773

1

$1.10

In stock

92154A

BOLT,SOCKET,6X12

92154-7472

1

$2.00

In stock

92172

SCREW

92172-0334

1

$4.14

In stock

92200

WASHER

92200-0386

1
Out of stock

92200A

WASHER,10.2X20X0.5

92200-1976

1

$3.56

In stock

120

BOLT-SOCKET,5X10

120CB0510

1

$1.42

In stock

461

WASHER-SPRING,5MM

461DB0500

1

$1.29

In stock
