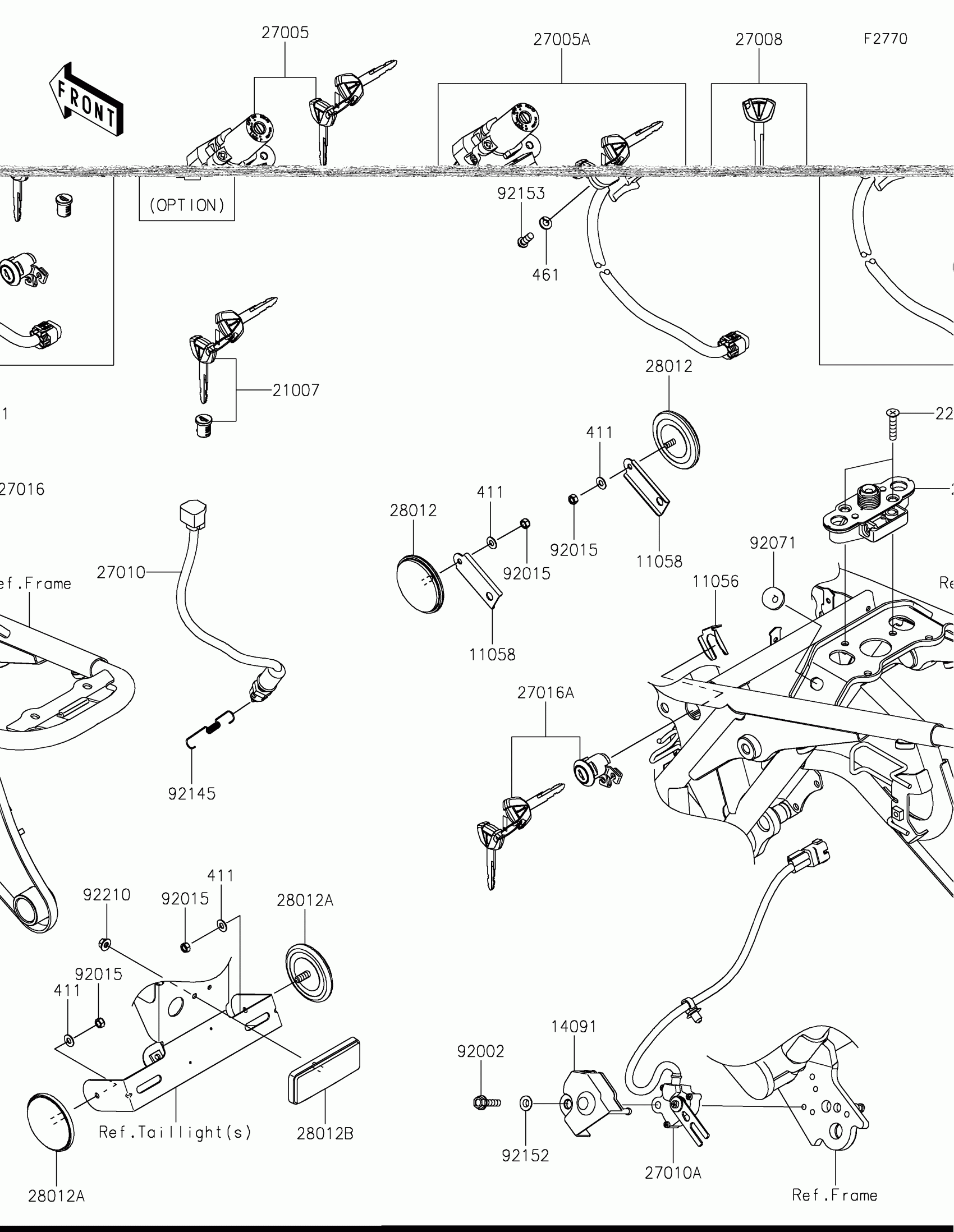

Find the part on the Ignition Switch/locks/reflectors diagram for your 2025 Kawasaki W230, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki W230 Ignition Switch/locks/reflectors Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET

11056-1084

1

$12.85

In stock

11058

BRACKET,REFLECTOR

11058-1565

1

$2.12

In stock

14091

1

$7.47

In stock

21007

ROTOR,LOCK,TANK CAP

21007-5086

1

$80.38

In stock

27005

1

$136.01

In stock

27005A

1

$260.00

In stock

27008

KEY-LOCK,BLANK

27008-0648

1

$22.42

In stock

27010

SWITCH,REAR BRAKE

27010-1501

1

$49.14

In stock

27010A

SWITCH,SIDE STAND

27010-1540

1

$114.52

In stock

27016

1

$86.38

In stock

27016A

LOCK-ASSY,SEAT

27016-5412

1

$67.31

In stock

28012

1

$12.02

In stock

28012A

1

$22.71

In stock

28012B

1

$21.76

In stock

92002

BOLT,FLANGED,6X25

92002-1582

1
Out of stock

92015

NUT,LOCK,5MM

92015-1221

1
Out of stock

92071

GROMMET,20X24X7.5

92071-0766

1

$1.27

In stock

92145

SPRING

92145-1723

1

$1.10

In stock

92152

COLLAR

92152-3920

1

$1.86

In stock

92153

BOLT,TORX,6X16

92153-0967

1
Out of stock

92210

NUT,FLANGED,5MM

92210-1607

1
Out of stock

221

1

$1.54

In stock

411

WASHER-PLAIN,5MM

411AB0500

1

$0.76

In stock

461

WASHER-SPRING,6MM

461DA0600

1

$0.68

In stock
