2025 Kawasaki W230 Tires Diagram

← All diagrams

Find the part on the Tires diagram for your 2025 Kawasaki W230, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

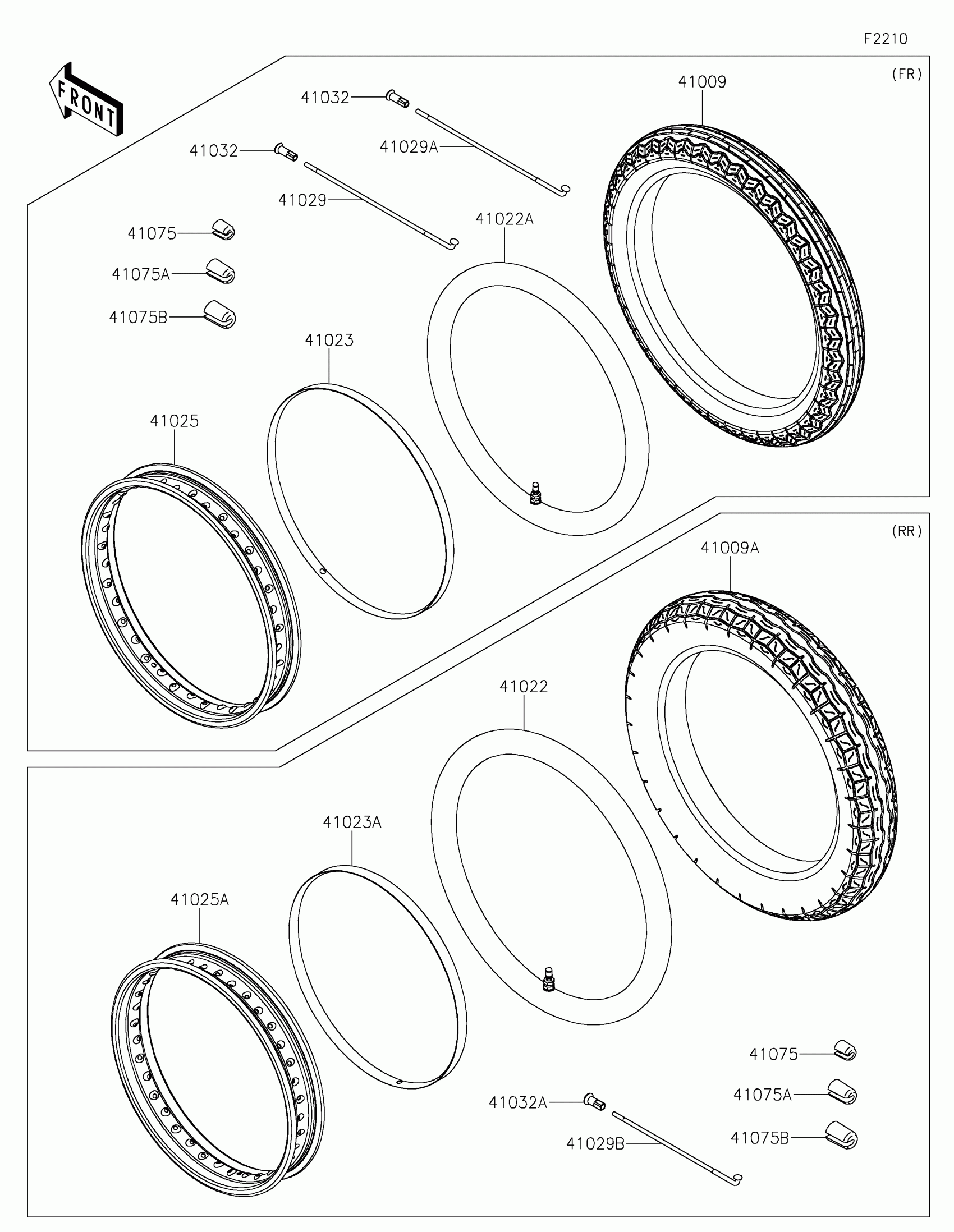

2025 Kawasaki W230 Tires Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41009

1

$213.68

In stock

41009A

1

$288.07

In stock

41022

TUBE-TIRE,130/70-17

41022-0106

1

$52.56

In stock

41022A

TUBE-TIRE

41022-0168

1

$40.62

In stock

41023

BAND-RIM,22-18(IRC)

41023-0031

1

$5.07

In stock

41023A

BAND-RIM,25-17J

41023-0039

1

$5.07

In stock

41025

RIM,FR,1.85X18

41025-0491

1

$155.08

In stock

41025A

RIM,RR,2.15X17

41025-0492

1

$220.00

In stock

41029

1

$3.68

In stock

41029A

1

$3.68

In stock

41029B

1

$3.68

In stock

41032

NIPPLE-SPOKE

41032-0010

1

$2.92

In stock

41032A

NIPPLE-SPOKE

41032-0013

1

$2.66

In stock

41075

BALANCER-WHEEL,10G

41075-0011

—

$10.02

In stock

41075A

BALANCER-WHEEL,20G

41075-0012

—

$10.02

In stock

41075B

BALANCER-WHEEL,30G

41075-0013

—

$10.02

In stock
