2025 Kawasaki W230 Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 2025 Kawasaki W230, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

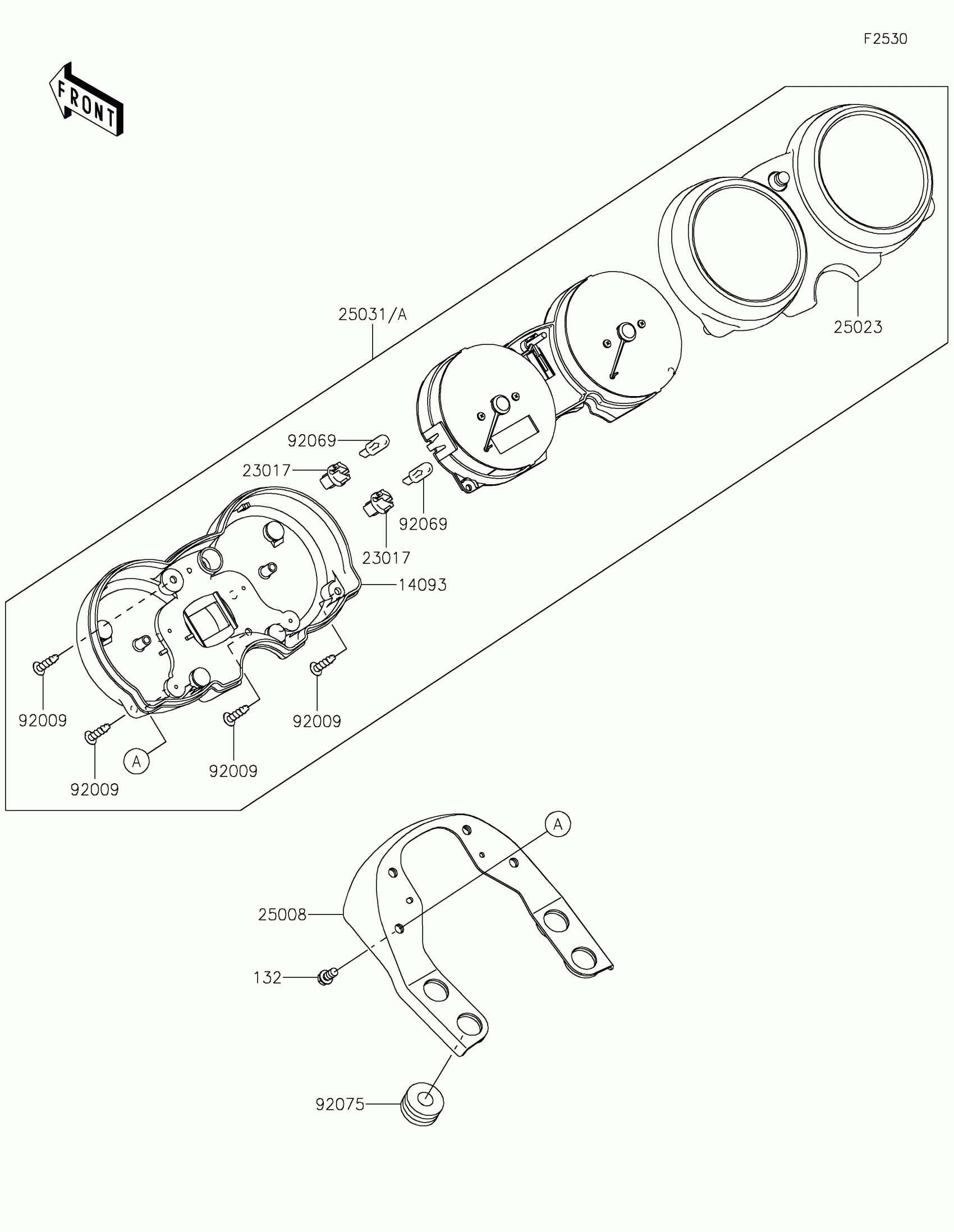

2025 Kawasaki W230 Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14093

1

$157.02

In stock

23017

1

$3.29

In stock

25008

BRACKET-METER

25008-0312

1

$38.65

In stock

25023

1

$150.85

In stock

25031

METER-ASSY,KPH

25031-1399

1
Out of stock

25031A

METER-ASSY,MPH

25031-1400

1

$1,241.97

In stock

92009

SCREW,4X16,BLACK

92009-1158

1
Out of stock

92069

BULB,12V 2W,T5

92069-1105

1

$4.07

In stock

92075

DAMPER,10X24X12

92075-1690

1

$3.97

In stock

132

1

$1.47

In stock
