2025 Kawasaki W230 Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 2025 Kawasaki W230, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

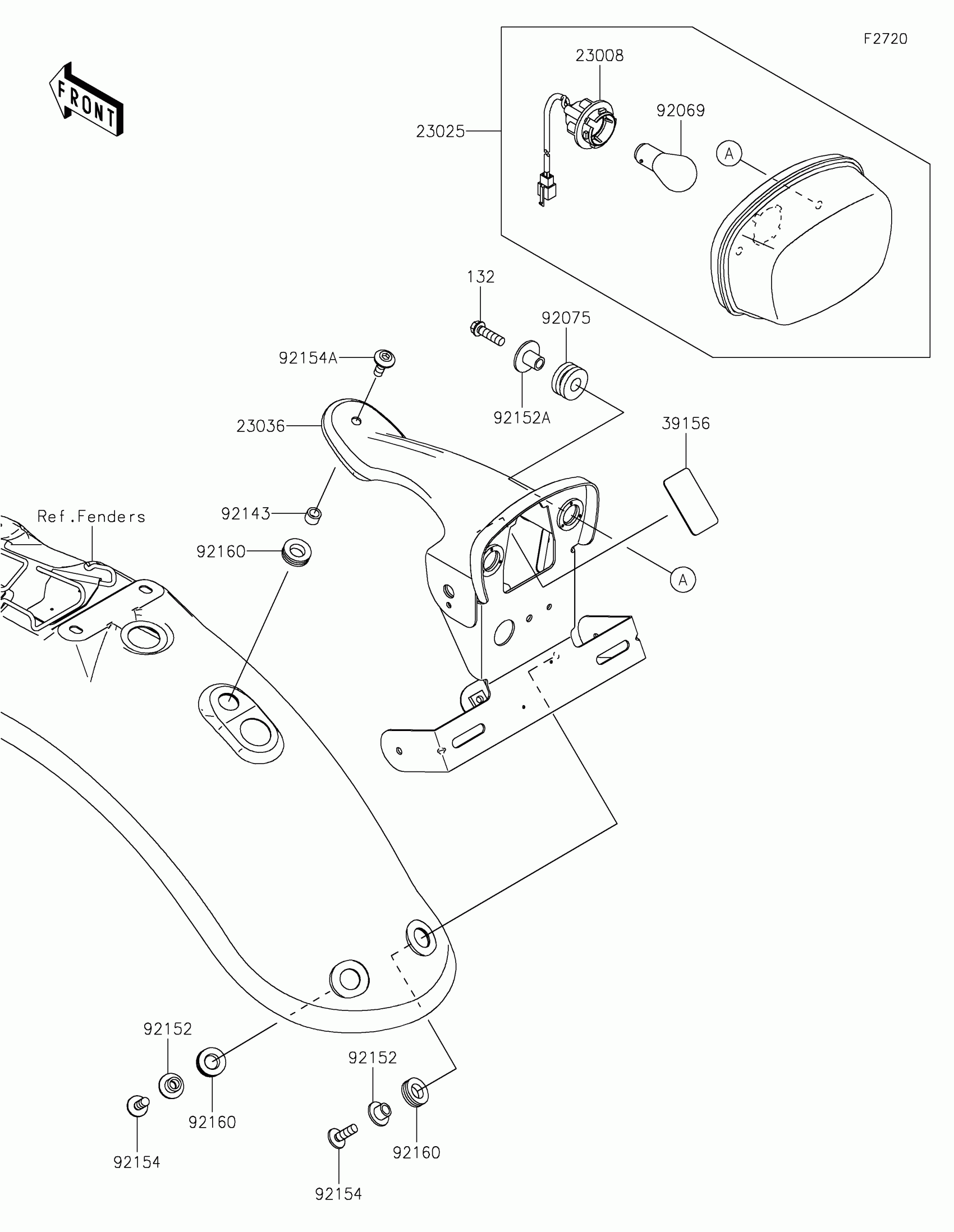

2025 Kawasaki W230 Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

23008

SOCKET-ASSY

23008-0202

1

$24.85

In stock

23025

LAMP-TAIL

23025-0409

1

$154.34

In stock

23036

BRACKET-TAIL LAMP

23036-0041

1

$173.50

In stock

39156

PAD,25X45X2

39156-2823

1

$3.97

In stock

92069

BULB,12V 21/5W

92069-0110

1

$13.73

In stock

92075

DAMPER,10X24X12

92075-1690

1

$3.97

In stock

92143

COLLAR,6.8X10X7

92143-1407

1

$1.17

In stock

92152

COLLAR

92152-0295

1

$4.47

In stock

92152A

COLLAR,6.5X10X13.6

92152-2492

1

$2.02

In stock

92154

BOLT,SOCKET,6X18

92154-1026

1

$1.68

In stock

92154A

BOLT,FLANGED,6X16

92154-7714

1

$1.95

In stock

92160

DAMPER

92160-1278

1

$3.49

In stock

132

1

$1.93

In stock
